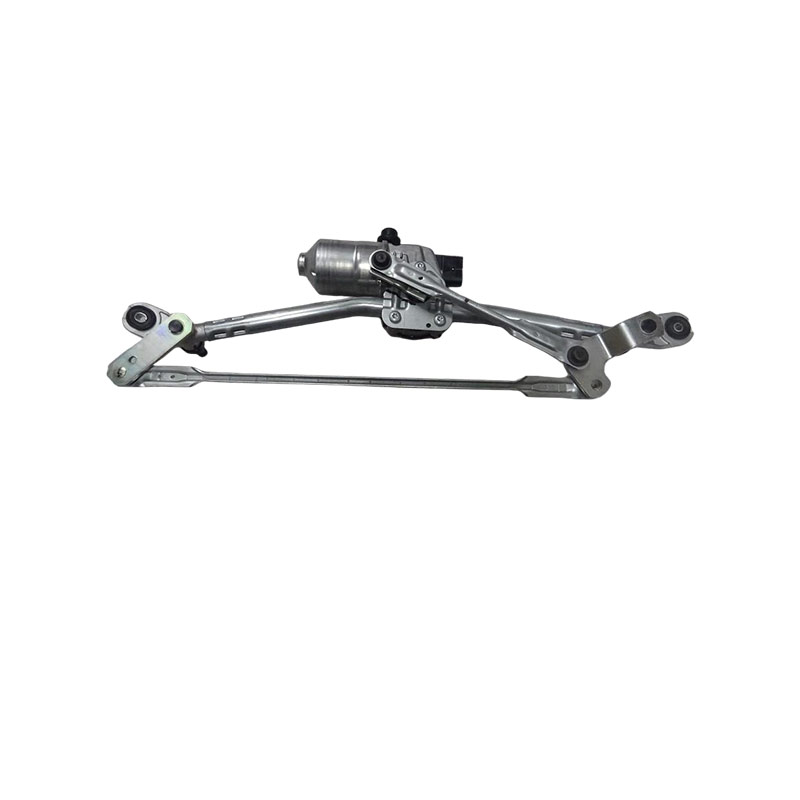

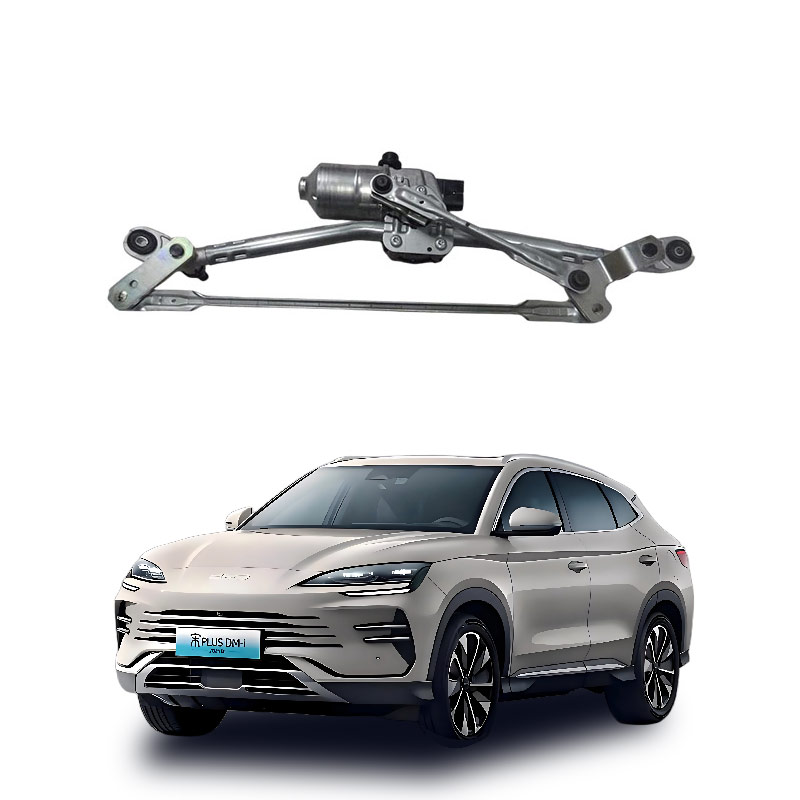

What is the assembly of the windshield wiper transmission system for the car?
The windshield wiper transmission system assembly of a car is a mechanical linkage device that converts the rotational motion of the motor into the reciprocating swing of the wiper arm. Its core function is to reduce speed and increase torque, and to convert the motion form. This ensures that the scraper precisely adheres to the glass for cleaning.
Core Components
Deceleration mechanism： Usually composed of a worm gear and worm， it is integrated within the motor and is responsible for reducing the speed and increasing the output torque.
Linkage mechanism： Mostly a four-link structure (including crank， main link， and swing rod)， it decomposes the circular motion of the output shaft into specific angle reciprocating swings of the wiper arm.
Output connection component: Includes the output arm and the shaft, directly driving the root of the wiper arm to control the swing trajectory and amplitude.
Working Principle
After the motor is powered on, the DC permanent magnet rotor drives the worm to rotate.
The worm gear and worm group achieve a reduction ratio of 18：1 to 35：1， enhancing the driving force and torque.
The output shaft drives the crank to rotate， through the linkage system to constrain the motion trajectory， enabling the wiper arm to complete a sweeping action of approximately 60-80 degrees on the windshield.
The built-in reset switch ensures that the scraper automatically stops at the initial position (lower edge) when power is off.
This assembly is usually located inside the firewall of the engine compartment and is a modular component that cannot be disassembled individually. If there is abnormal noise， jamming， or inconsistent swinging， the entire assembly needs to be replaced.
The core function of this assembly is to convert the rotational motion of the motor into the reciprocating swing of the wiper arm， thereby driving the scraper to efficiently clean the rain， snow， and dirt on the windshield， ensuring clear driving vision and driving safety.
Specific Function Decomposition：
Motion Form Conversion： Through the linkage mechanism (usually a four-link or crank-rocker structure)， the single-direction continuous rotational motion output by the motor is precisely converted into the reciprocating swing of the wiper arm within a specific angle range.
Power Reduction and Torque Increase： In coordination with the worm gear and worm reduction mechanism inside the motor， the output speed is reduced (usually to 15-60 rpm) and the torque is significantly increased， ensuring that the scraper can overcome the resistance of the glass and perform stable scraping.
Trajectory Optimization and Adhesion Control： Constraining the movement trajectory of the wiper arm to ensure that it covers the effective area of the windshield as much as possible and maintains the scraper in constant contact with the glass surface throughout the stroke， avoiding blind areas or uneven pressure.
Synchronization and Reset Coordination： Coordinating the phase difference between the left and right wipers (usually staggered design) to prevent visual blanking when they return simultaneously； and through the reset device， the scraper is precisely returned to the initial position (lower edge) of the windshield when the operation stops.
This assembly is the key mechanical hub connecting the power source and the actuator， and its smooth operation directly determines the cleaning effect， noise level， and system lifespan.
The core failure of the wiper transmission system assembly is manifested as mechanical linkage dislocation， jamming， or deformation， resulting in the inability of the motor power to be converted into the swing of the wiper arm. The troubleshooting should follow the principle of "external first， internal later， simple first， complex later"， and focus on checking the mechanical connection status visible under the hood.
Core Fault Phenomenon and Causes
Transmission linkage dislocation： The most common cause. Long-term bumps cause the ball joint to loosen or the fixing screws to become loose， interrupting the power transmission， and the wiper completely stops. Jamming/ Rust： Lack of lubrication at the linkage joint， entry of mud and sand， or freezing in winter， causing excessive mechanical resistance， and the motor may emit a "buzzing" sound but not rotate.
Linkage deformation damage： Collision or forced manual manipulation of the wiper arm causes the metal rod to bend， changing the movement trajectory， resulting in abnormal noise or local jamming.
Motor output shaft damage： Although it belongs to the motor part， it often fails to work in conjunction with the transmission assembly， manifested as the motor running but no mechanical action.
Quick Diagnosis Steps
Visual inspection of mechanical connections： Open the hood and observe the connection point between the wiper motor output shaft and the linkage mechanism. If the ball head comes off or the screws are loose, it indicates a dislocation fault.
Listening and identifying the position: Turn on the wiper switch. If you hear the motor running but the wiper arm doesn't move, it is mostly due to mechanical jamming or the connecting rod disengaging. If there is no sound and the fuse is normal, it may be a problem with the motor or the circuit.
Manual resistance test: In an off-power state, try to gently move the wiper arm (first raise the wiper). If the resistance is extremely high or it cannot be moved, it indicates that the internal connecting rod is rusted and jammed or deformed.
Removing foreign object interference: Check if there are any ice, stones, or other foreign objects stuck at the root of the wiper. Clear them and try again.
Maintenance and handling suggestions
Minor dislocation: If only the screws are loose, re-tighten them and apply grease. The problem can be restored. If the plastic part of the ball head cracks, it is recommended to directly replace the connecting rod assembly. Forced repair may cause it to dislocate again.
Severe jamming/deformation: If the connecting rod is deformed and cannot be corrected, it is necessary to replace the transmission connecting rod assembly. If the rust is severe, disassemble it for cleaning and add special lubricating grease. If the structure is damaged, a new one is required.
Professional maintenance definition: When involving motor disassembly, circuit detection, or linkage faults of the rain sensor module of high-end models, it is recommended to use a multimeter to detect voltage or have professionals operate to avoid damaging the sealing structure.
Emergency measures: Before the problem is fixed, do not forcibly start the motor to prevent burning out the coil; in rainy weather, you can temporarily use soap to apply on the glass to maintain short-term vision and send it for repair as soon as possible.
Note: When replacing the transmission assembly, it is necessary to match the original vehicle specifications. After installation, adjust the wiper return point to prevent the wiper arm from stopping in the middle of the glass when it stops. Avoid dry brushing on dry glass surfaces in daily life. Regularly clean the mud and sand at the connecting rod joint to extend the lifespan.
