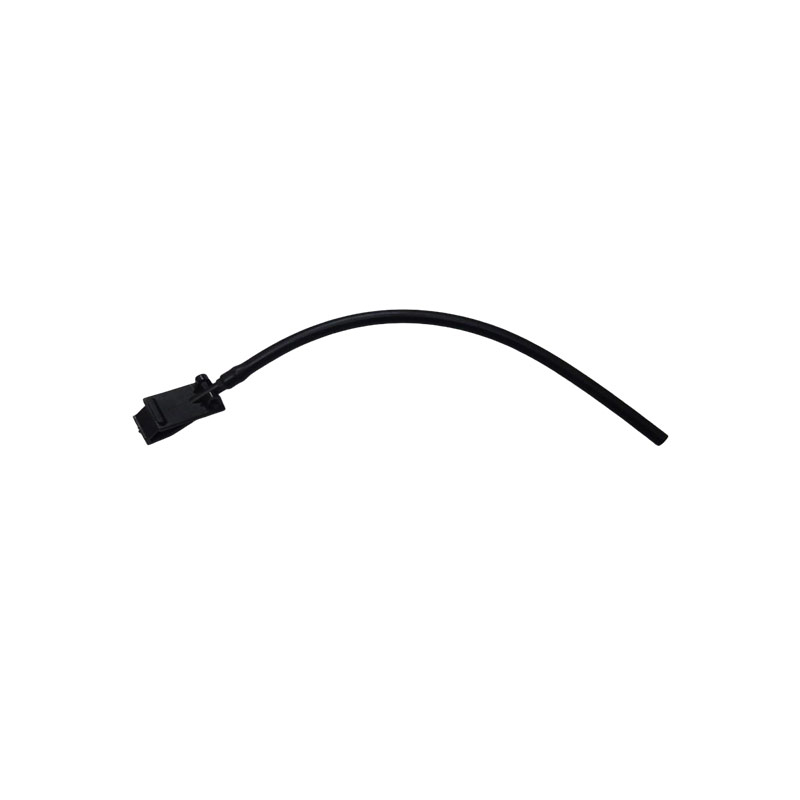

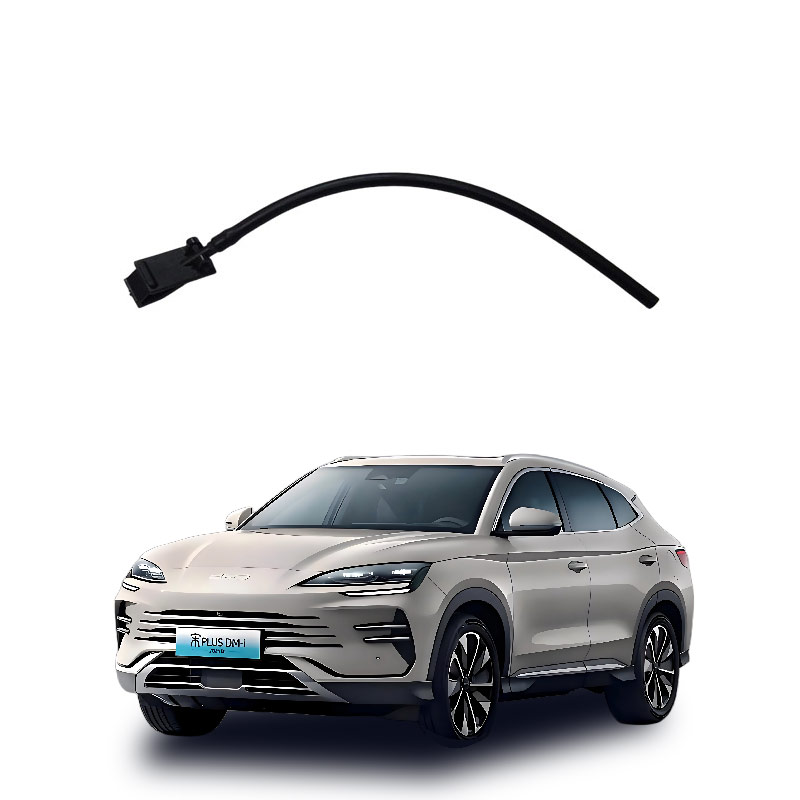

What are the front cleaning pipes and nozzle components of the car?
The front car washing pipeline and nozzle assembly is the core operating part of the window washer system, responsible for transporting the glass water from the storage tank and precisely spraying it onto the front windshield to cooperate with the wiper to remove dirt and ensure a clear driving view.
Core Components
Washing Pipeline: Usually made of high-pressure-resistant and corrosion-resistant rubber or plastic hoses, it connects the outlet of the washing pump to the nozzle, and under the pressure of the pump, it transports the cleaning liquid from the storage tank to the front of the vehicle.
Nozzle Assembly: Installed at the edge of the engine hood or at the base of the wiper arm, it contains precise channels and spray holes, which can convert the liquid into fan-shaped or column-shaped mist spray. Some high-end models are equipped with "heated nozzles" to prevent freezing in extremely cold conditions.
Linkage Control: Powered by the washing pump, it is triggered by the signal from the steering wheel lever to achieve synchronous linkage of water spraying and wiper operation.
Key Functions and Locations
Precise Coverage: The nozzle angle is precisely calibrated for engineering purposes, ensuring that the highest point of the water flow falls at approximately two-thirds of the height of the windshield, achieving no死角 cleaning.
Common Faults： Long-term use of inferior glass water or encountering dust and debris from trees and sand can lead to "spray hole blockage" or pipeline bending， resulting in insufficient water spraying， deviation in direction， or no water spraying.
Maintenance Tips： Minor blockages can be cleared by using a fine needle to疏通 the spray holes. If the pipeline is aged and cracked， the entire component needs to be replaced to avoid liquid leakage and corrosion of the car paint or circuits.
Although this component is a wear-prone part， it directly relates to driving safety. It is recommended to regularly check the water spraying effect and replenish the dedicated glass water in time. Core function
Precise delivery of cleaning fluid: The pipeline serves as the channel connecting the storage tank and the nozzle, transporting the pressurized cleaning fluid without loss to the designated location; the nozzle is responsible for converting the liquid into fan-shaped mist or fine streams, ensuring maximum coverage area and eliminating dead corners.
Enhanced cleaning efficiency: By moistening the glass surface to soften bug glue, dust, and oil films, it significantly reduces the friction resistance during the wiper's scraping, preventing dry scraping damage to the glass or the wiper rubber strip.
Ensuring driving safety: In rainy, snowy, or high-speed driving conditions when encountering flying insects, it quickly restores the windshield transparency, eliminating visual blind spots, which is an active safety auxiliary device.
Key features
Cooperative operation: Usually linked with the wiper, it first sprays water to moisten and then starts the scraping, avoiding incomplete cleaning due to a single action.
Adjustability: The nozzle angle usually supports fine adjustment (such as using a fine needle to unclog or adjusting the direction), to adapt to the curvature of different vehicle glass and the wiper's movement trajectory.
Anti-freezing and anti-corrosion: When used with a dedicated windshield washer fluid, the pipeline and nozzle must have anti-corrosion properties and remain unobstructed in low-temperature environments to prevent freezing and blockage.
If there is insufficient water spraying, deviation in direction, or dripping, it is usually caused by nozzle blockage or pipeline aging, and requires timely cleaning or component replacement.
Core manifestations of failure of the car's front cleaning pipeline and nozzle are: no water spraying, insufficient water spraying or deviation in spraying angle. The troubleshooting should follow the principle of "from outside to inside, from simple to complex", and focus on checking: nozzle blockage, pipeline leakage/bending, pump body pressure and circuit power supply.
Quick diagnosis and troubleshooting steps
Confirm the basic status
Check the liquid level of windshield washer fluid to see if it is sufficient. If the level is too low, it will cause air to be sucked in, resulting in intermittent water spraying.
Listen for the motor running sound when pressing the switch: silence is usually due to circuit/fuse/motor failure; there is sound but no water is usually due to blockage or pipe detachment.
Handling nozzle component failure (most common)
Physical疏通： Use sewing needles or dedicated疏通 needles (diameter < 0.5mm) to gently insert into the nozzle hole and rotate to clean. Do not use toothpicks or iron wires as they may damage the internal structure.
Angle adjustment： Some nozzles can be manually fine-tuned. Use a fine needle to press against the nozzle ball head and adjust the spraying direction to the upper-middle part of the windshield.
Chemical cleaning： If clogged by scale， pour a 1：1 mixture of white vinegar and water into the tank for soaking and multiple sprays to dissolve calcium carbonate deposits.
Replace components： If the nozzle is aging and cracked or repeatedly blocked， directly replace with the same model nozzle (cost approximately 10-30 yuan).
Pipeline system failure handling
Check for leaks and bending： Check along the engine hood edge for any cracks， loose joints or severe bending of the hose. If there is leakage， replace the sealing parts or the entire pipeline.
Reverse blowing to clear： Remove the hose at the nozzle end， use a high-pressure air gun or mouth to blow towards the reservoir for 3-5 seconds to flush out impurities or ice blockages in the pipeline.
Filter net cleaning： Check the inlet filter net at the reservoir outlet. If it is clogged with mud and sand， remove it for cleaning.
Motor and circuit troubleshooting
Fuse inspection： Locate the fuse box under the driver's seat and confirm if the fuse labeled "WIPERWASHER" or similar is blown. Replace with the same specification fuse.
Motor test： If the fuse is intact and there is no motor sound， measure the voltage of the motor plug； if there is voltage but the motor does not rotate， it is usually due to worn carbon brushes or burned coils， and the pump assembly needs to be replaced.
