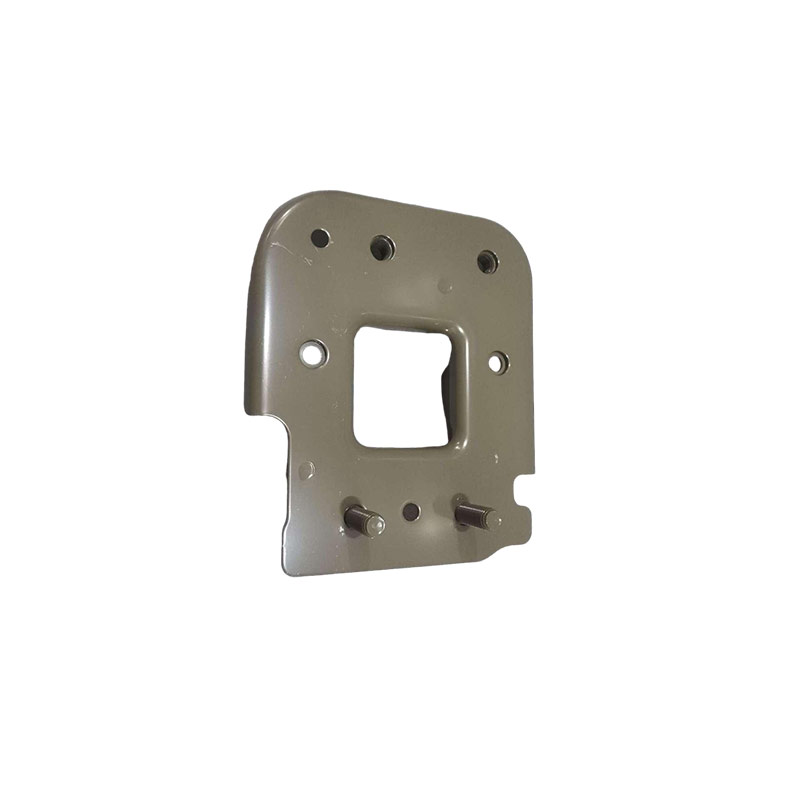

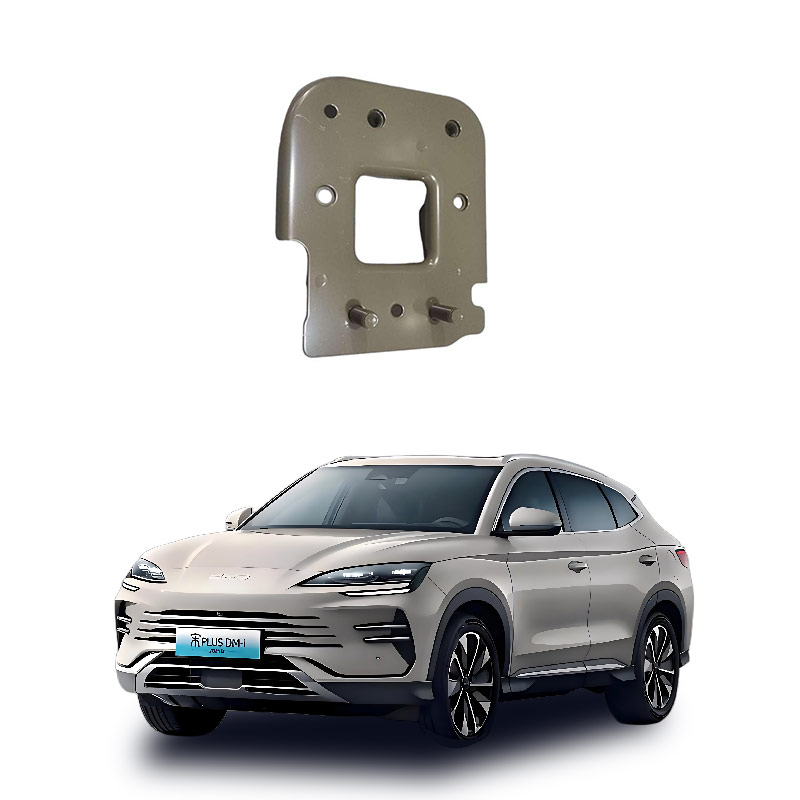

What is the rear steel plate component of the right rear longitudinal beam of the car?
The "right rear longitudinal beam rear reinforcing plate assembly" does not have a standard component name in automobiles. It is actually a colloquial misinterpretation of the right rear longitudinal beam and its rear end reinforcement plate (or energy absorption box connection plate), which is a structural reinforcement component rather than an independent "reinforcing bar" component.
Core Definition and Composition
Essentially: It refers to the rear longitudinal beam located on the right rear side of the vehicle, extending longitudinally along the vehicle body. Its tail end is often welded or riveted with a high-strength steel plate reinforcing component (commonly known as "plate reinforcement" or "reinforcement plate"), used to enhance connection stiffness or optimize the collision force transmission path.
Not "Reinforcing Bar": There are no "reinforcing bars" in the automotive structure. This component is formed by high-strength low-alloy steel or aluminum alloy through stamping/pressing, and some areas are enhanced by local thickening or adding reinforcement plates to improve impact resistance.
Functional Positioning: In rear-end collisions, it serves as the main energy absorption path, absorbing impact energy through controlled collapse to protect the passenger compartment, fuel tank, and battery pack safely.
Key Features
Location: Below the trunk of the vehicle on the right rear side, connecting the rear bumper beam with the main frame of the vehicle body.
Material: Mainly uses HC340-590DP duplex steel, hot-formed steel, or aluminum alloy (such as AlSi10MnMg).
Structural Form: Mostly in trough, box, or I-beam cross-section, and the end is often integrated with an energy absorption box or equipped with triangular/linear reinforcement plates to enhance local rigidity.
Maintenance Warning: If this component is damaged or deformed, it needs to be repaired with a professional beam alignment instrument. Forced stretching correction will lead to irreversible strength reduction and pose safety hazards.
Common Misunderstanding Clarification
"Reinforcing Plate" is a colloquial term for the "stamped reinforcement plate", which is actually a metal plate that enhances strength through geometric shape changes (such as bending, pressing ribs), not an independent inserted rod-like object.
Some repair quotation sheets combine the description of "rear longitudinal beam assembly + rear end reinforcement plate", causing name confusion. In fact, they are different sub-components of the same structural system.
If you see this term in accident assessment or repair list, it is recommended to check the specific part drawing or ask the dealer to provide a physical photo to confirm whether it is damage to the longitudinal beam body or only the attachment reinforcement plate replacement.
The "right rear longitudinal beam rear reinforcing plate assembly" of automobiles is not a standard term. It usually refers to the reinforcing structure component at the end of the rear longitudinal beam that connects to the energy absorption box/installation plate, with the core function being "collision force transmission, energy absorption, and component fixation".
Core Function
Collision Energy Transmission and Absorption: In rear-end accidents, the impact force is transmitted from the bumper beam through the energy absorption box to the main body of the longitudinal beam in an orderly manner, absorbing kinetic energy through collapse deformation to prevent the impact force from directly damaging the passenger compartment or fuel tank/battery pack.
Structural Strengthening and Rigid Support: As a key node of the rear vehicle body frame, it enhances the local bending and torsion rigidity of the rear part, maintaining the geometric shape of the chassis and ensuring the accuracy of suspension installation points.
Component Installation Base: It provides reliable fixing interfaces for rear bumpers, spare tire racks, exhaust systems, and rear suspensions, etc.
Key Explanation
Term Clarification: There is no such term as "reinforcing plate" in the industry. It is mostly "high-strength steel stamping parts" (such as hot-formed steel), often including energy absorption box connection plates or local reinforcement ribs; if referring to an independent steel plate, it is usually the "connection flange or reinforcement plate" at the end of the longitudinal beam.
Safety Association: If this component is damaged, it will change the collision force transmission path, resulting in a decrease in vehicle strength after repair, and requires professional correction or replacement, not simple welding repair.
Location Characteristics: It is located in front of the right rear wheel, at the end of the longitudinal beam, adjacent to the rear bumper beam energy absorption box connection point.
