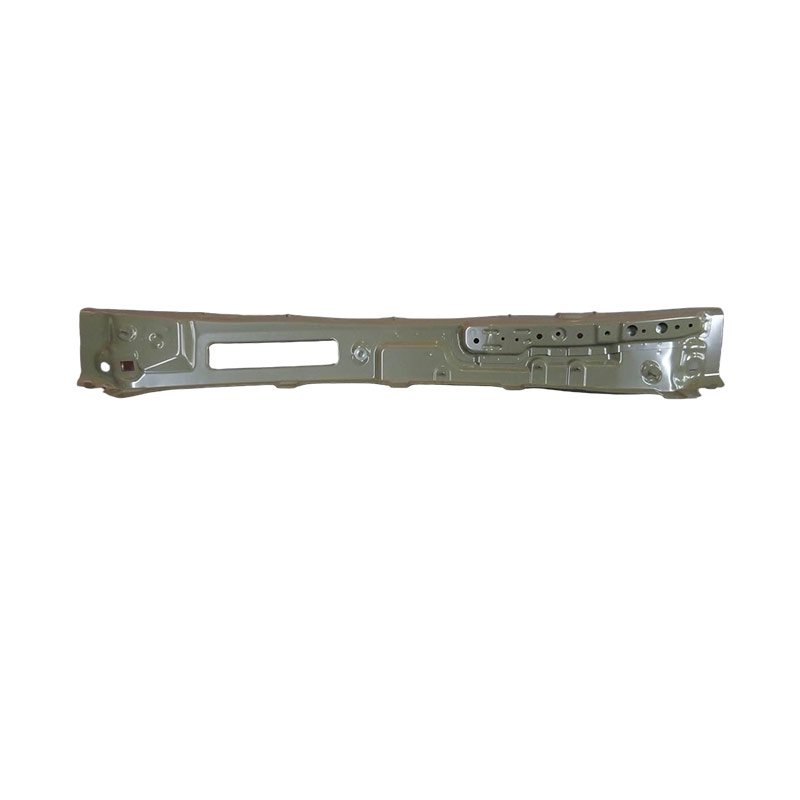

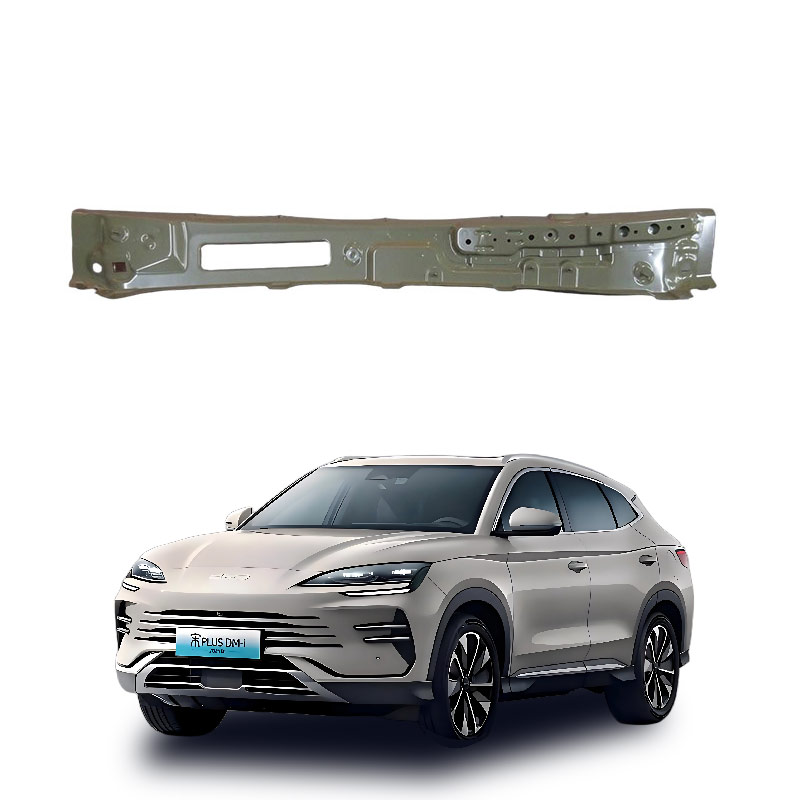

What is the lower crossbar assembly of the car's front windshield?
The lower part of the car's windshield usually does not have a component called "crossbeam". The core components at this position are the front cover plate (commonly known as the rainwater collection plate / windshield lower trim) and the internal instrument panel crossbeam (IP beam). The former is an exterior covering component responsible for drainage, while the latter is a load-bearing component of the vehicle body located inside the instrument panel.
Core Component Analysis
Front Cover Plate (Rainwater Collection Plate): A plastic/rubber covering component located directly below the windshield and at the rear end of the engine hood. Its main function is to collect rainwater and discharge it through drainage holes to prevent water from entering the engine compartment or the air conditioning intake, while also covering the wiper linkage mechanism.
Instrument Panel Crossbeam (IP Beam): A metal component located inside the instrument panel, in front of the front cover plate. (Usually made of high-strength steel or aluminum.) It is a key part of the vehicle body's rigid skeleton, used to support the instrument panel assembly, install airbags and steering columns, and transfer and distribute impact forces during a collision.
Common Misconception: The "stripes" commonly seen in daily life are usually the rainwater collection plate covers, not the load-bearing crossbeam; the actual structural crossbeam is hidden behind the interior panels and cannot be directly observed.
Function and Position Comparison
Rainwater Collection Plate: Visible externally, responsible for water drainage, protecting the wiper motor, and enhancing the appearance.
Instrument Panel Crossbeam: Hidden internally, responsible for supporting the instrument panel, improving the torsional stiffness of the vehicle body, and assisting in passive safety (airbag installation base).
Front Cover Plate: Located behind both, serving as an isolation and sealing barrier between the engine compartment and the driver's cabin.
If you are referring to the plastic grille-like component below the wiper, it is the rainwater collection plate; if you find an internal metal rod during repair and disassembly, it is the instrument panel crossbeam. The materials, positions, and functions of these two components are completely different. Do not confuse them.
The core function of the lower crossbeam of the car's windshield (usually referring to the front windshield frame lower crossbeam or the component integrated above the front cover plate) is to enhance the vehicle's torsional stiffness, support the instrument panel / air conditioning system, assist in the transfer of impact forces during a collision, and assist in sealing and directing drainage.
Core Function Analysis
Structural Reinforcement: As a horizontal component of the vehicle body's skeleton, it connects the lower parts of the left and right A-pillars, significantly improving the torsional stiffness of the front part of the vehicle, preventing body distortion during driving, and ensuring handling stability.
Component Support: It directly supports key components such as the instrument panel assembly, air conditioning fan, wiring, and wiper motor, providing a stable installation base, reducing vibration and noise.
Collision Force Transmission: In frontal or side impact collisions, it assists in distributing the impact force from the A-pillar to the front cover plate and floor passage, avoiding stress concentration that could lead to intrusion into the passenger cabin.
Sealing and Drainage Assistance: Its upper part is usually designed in conjunction with the rainwater collection plate to form a drainage channel structure, guiding rainwater through the drainage holes on both sides to be discharged, preventing water from seeping into the driver's cabin or engine compartment.
Concept Distinction Tips
Distinguish between "structural crossbeam" and "appearance trim":
Structural Crossbeam: Located inside the glass frame, invisible, a safety component, welded and fixed, responsible for mechanical tasks.
Plastic Trim (Rainwater Collection Plate / Lower Trim): Located directly below the glass on the outer side, visible and detachable, mainly serves to guide water, cover the wiper linkage mechanism, and enhance the appearance, not a main load-bearing component.
If involved in repair or accident assessment, please be sure to confirm whether the referred component is a metal crossbeam or an external plastic trim. The differences in function and value between the two are significant.
