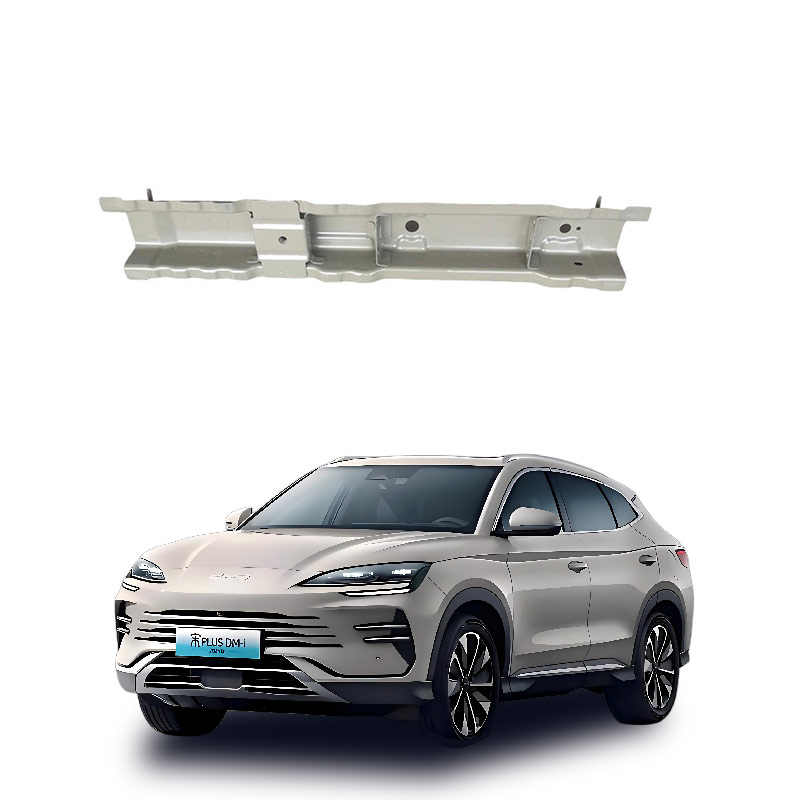

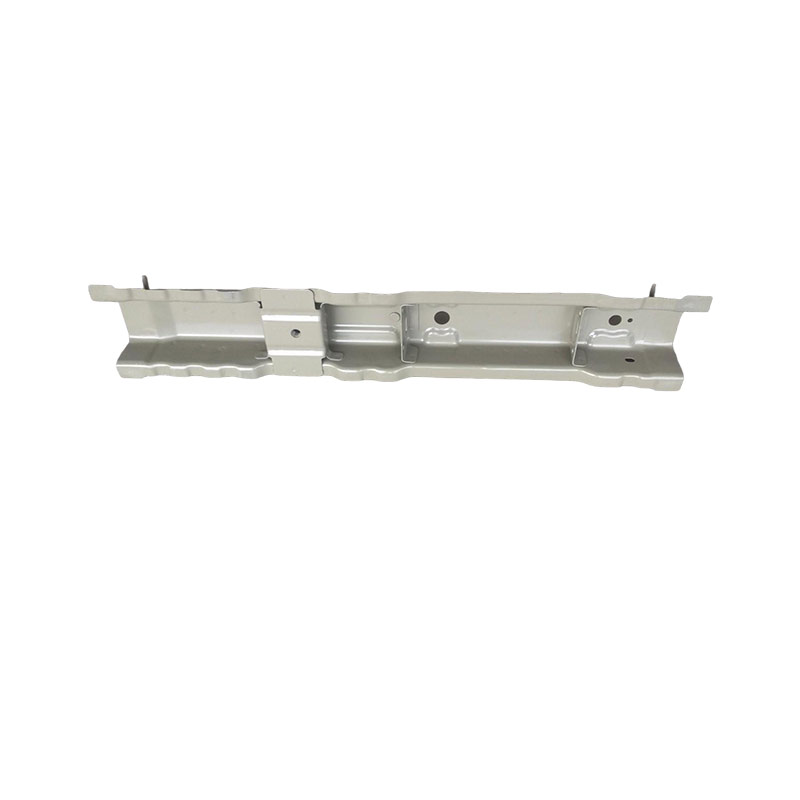

What is the middle rear crossbeam assembly of a car?
The "middle rear crossbeam assembly" of a vehicle is not a standard general term. It usually refers to the transverse structural beam located between the vehicle floor and the roof (in the middle layer) at the rear of the vehicle, along with its connected weld assembly. Its core function is to enhance the body's torsional stiffness, support the rear suspension/seats, and optimize NVH performance.
Core Definition and Position
Position Definition: Located in the "middle layer" area of the white body (i.e., above the floor passage, below the rear seats, or near the rear panel), it horizontally connects the left and right longitudinal beams or side panels, distinct from the chassis sub-frame crossbeam at the bottom and the luggage rack crossbeam at the top.
Component Composition: It is not a single part but an integrated module composed of the crossbeam body (often hollow or multi-section variable cross-section structure), reinforcing plates, mounting brackets (such as suspension or seat fixation points), and weld assemblies.
Naming Context: This expression is commonly seen in patents or engineering drawings (such as "sub-frame middle crossbeam assembly" or "rear floor crossbeam weld assembly"), emphasizing its dual attributes as a structural reinforcement and functional mounting base.
Main Functional Characteristics
Enhance rigidity: Forming a closed frame with the front and rear longitudinal beams (Damper Ring effect), significantly increasing the body's torsional stiffness and improving handling stability.
Carrying and Installation: Providing installation interfaces for rear suspension towers, seat slides, rear seat belt anchor points, or powertrain mounts, distributing local loads.
Collision Safety: Absorbing and transmitting energy in rear-end or bottom collision scenarios, preventing excessive intrusion of the rear panel into the passenger compartment and protecting key components (such as fuel tank, high-voltage wiring harness).
NVH Optimization: Through hollow structure design or adding damping layers, suppressing vibration and noise in the rear structure, and improving driving comfort.
Common Type Classification
Rear Floor Crossbeam Assembly: Located beneath the rear seats on the floor, mostly welded from stamped steel plates, focusing on carrying and collision force transmission.
Sub-frame Middle/Post Crossbeam Assembly: Part of the chassis suspension system, often in a hollow box structure, directly connecting the shock absorber and control arm, affecting shock absorption and handling.
Rear Panel Strengthening Crossbeam: Located beneath the trunk floor, mainly preventing structural collapse during rear impact, protecting the luggage area and rear power unit.
If you need to query the maintenance data or drawings of this component for a specific vehicle model, it is recommended to provide the specific vehicle series, as different automakers have differences in their definitions of "middle layer" and component naming.
The "middle rear crossbeam assembly" of a vehicle is not a standard term. It usually refers to the "sub-frame rear crossbeam" or "body floor rear strengthening crossbeam", with the core function being to "support the rear suspension/powertrain, enhance torsional stiffness, absorb collision energy, and optimize NVH performance".
Core Function
Structural Support and Connection: As a key transverse component of the rear sub-frame, it fixes the rear suspension arm, differential, or motor, and transmits loads to the vehicle longitudinal beams.
Enhance Rigidity and Handling: Increasing the body/sub-frame's torsional stiffness, reducing deformation during cornering or bumps, and improving driving stability.
Collision Energy Absorption and Protection: Absorbing and transmitting energy in rear-end collisions, preventing excessive intrusion of the rear panel into the passenger compartment, and protecting critical components (such as fuel tank, high-voltage wiring harness).
Vibration and Noise Reduction (NVH) : Using structural design and connection bushings to block the transmission of vibration and noise from the road to the cabin, reducing noise and vibration. Note: If referring to the rear crossbeam of the roof (located above the C-pillar), it mainly supports the roof and the rear doors and does not fall under the "middle layer" category; if referring to the impact beam, it is located inside the bumper and is mainly responsible for energy absorption during low-speed collisions.
