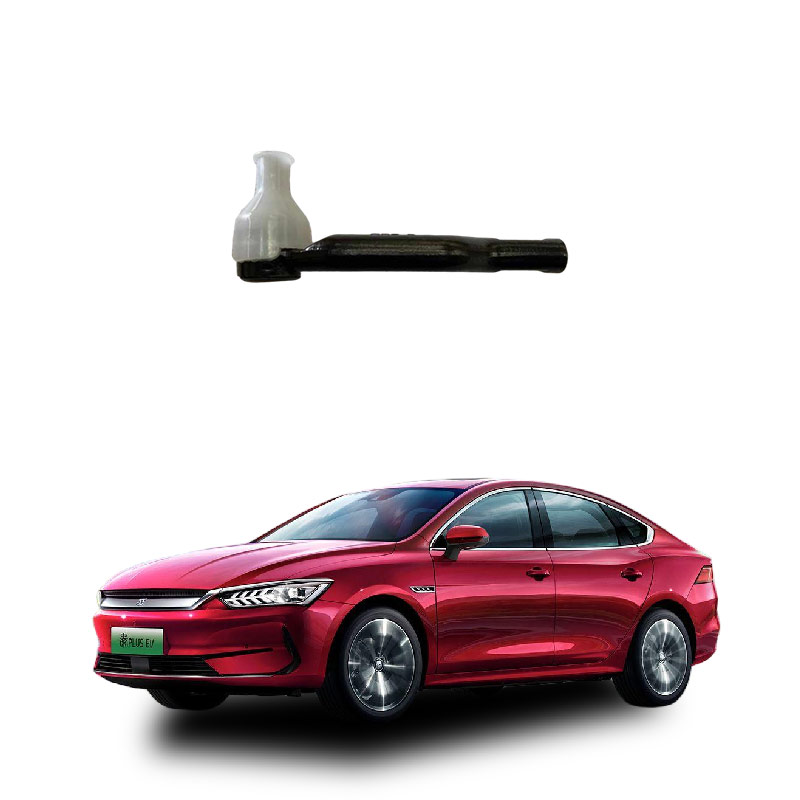

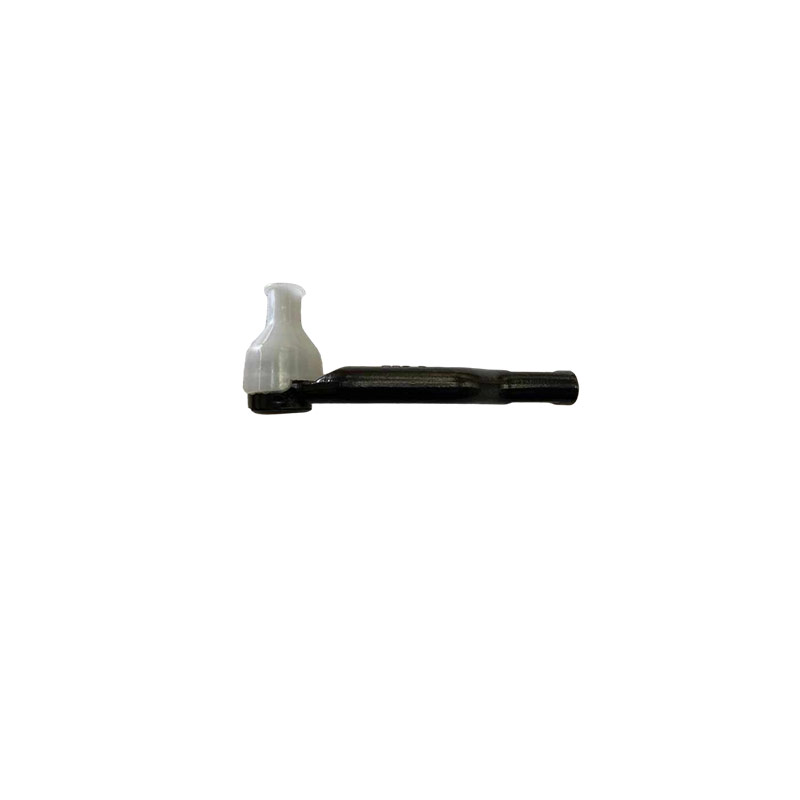

What is the external ball joint assembly of the car steering knuckle?
The external ball joint assembly of the car steering knuckle (commonly known as the "outer ball joint") is a crucial spherical hinge component in the steering system that connects the steering tie rod to the wheel steering knuckle, responsible for precisely transmitting the steering force from the steering wheel to the wheels and allowing the wheels to flex flexibly when bouncing up and down.
Core structure and position
Installation position: Located at the outermost end of the steering tie rod, directly connecting to the wheel arm (steering knuckle), distinct from the "inner ball joint" closer to the steering gear.
Internal structure: Composed of high-strength steel ball pins, wear-resistant ball sockets (ball bowls), elastic compression devices (such as)， and rubber dust covers； the dust covers are filled with lubricating grease to prevent sand from entering and causing wear.
Motion characteristics： Adopting a ball socket design， it supports multi-angle rotation， ensuring that the steering command is accurately transmitted without any slack and also accommodating the vertical displacement of the suspension system.
Main functions
Torque transmission： Converts the lateral thrust output by the steering gear into the wheel's deflection action.
Angle compensation： Absorbs the angle changes caused by the wheel's bouncing up and down during cornering or driving over bumpy roads， preventing the steering mechanism from jamming or breaking.
Maintaining caster： Through a threaded adjustment structure， it assists in fixing and adjusting the caster value of the wheels， ensuring the stability of straight-line driving.
Fault symptoms and maintenance
Typical symptoms： A "clunking" noise on bumpy roads， steering wheel vibration， vehicle veering， abnormal tire wear； severe deviations may lead to loss of wheel control.
Service life cycle： Generally， the recommended inspection period is 6-80，000 kilometers or 4 years， depending on the road conditions； damage to the dust cover will accelerate internal wear， and it is necessary to replace it in time.
Replacement precautions： After replacing the outer ball joint， a four-wheel alignment must be performed； otherwise， it will cause tire wear and unstable steering.
This component is a safety-critical part. If looseness or a damaged dust cover is detected， it should be repaired or replaced immediately； driving with a faulty component is strictly prohibited.
The external ball joint assembly of the car steering knuckle is a key hub that connects the steering tie rod to the steering knuckle (wheel arm). Its core function is to precisely transfer the force from the steering system to the wheels and accommodate the multi-directional displacement caused by the suspension movement.
Core functions
Force and motion transmission： Transmits the push or pull force from the steering wheel via the steering gear and the tie rod directly to the front wheels， enabling the wheels to turn left and right for steering.
Multi-degree-of-freedom compensation： Utilizing the ball hinge structure allows for flexible rotation in vertical， horizontal， and angular directions， absorbing the relative displacement caused by the suspension's bouncing up and down， preventing the steering mechanism from jamming or interfering.
Maintaining caster stability： As an important node of the steering trapezoid， it ensures that the left and right wheels turn synchronously according to the correct geometric relationship， ensuring the stability of straight-line driving and the steering return performance.
Key characteristics
Shock absorption and buffering： The internal lubricating grease and elastic components can partially absorb road impacts， reducing the transmission of vibrations from the road to the steering wheel.
Sealing protection： The external rubber dust cover prevents sand and moisture from entering， protecting the internal ball pins and ball sockets from wear， and extending the service life.
