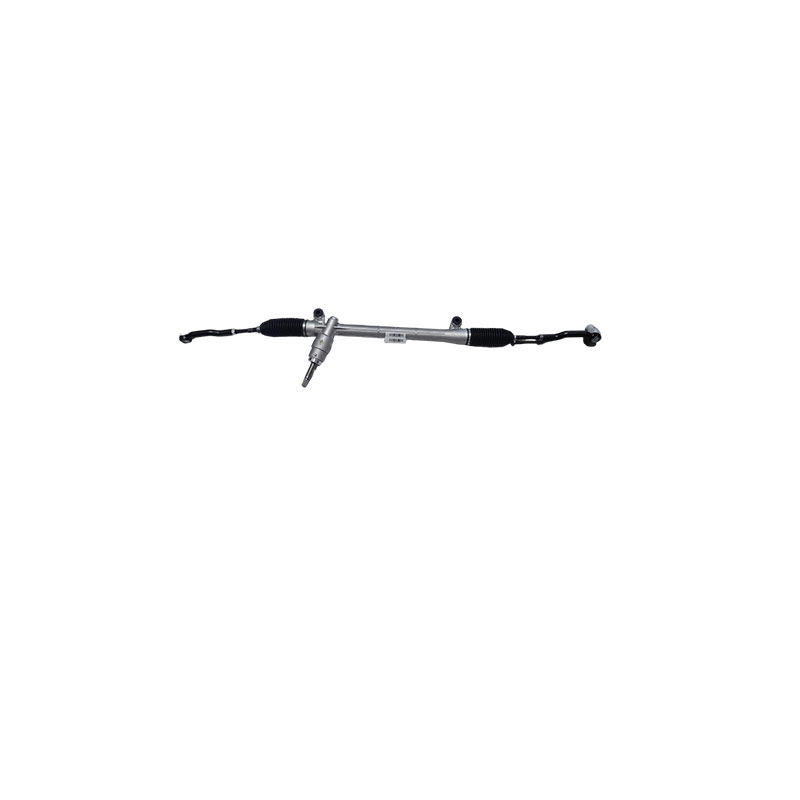

What is the mechanical steering gear with tie-rod assembly of a car?
"The mechanical steering gear with tie-rod assembly of the car" is not a single part name, but refers to the "gear-rack type steering gear assembly" and its connected "steering cross tie rod" system. This is the most common mechanical steering form currently used in passenger cars.
Core components
Steering gear (small gear): The driving part, connected to the steering column, converting the rotational motion of the steering wheel into linear driving force.
Steering rack: The driven part, meshing with the gear, converting rotational force into left and right linear movements.
Steering cross tie rod assembly: Including left and right tie rods and ball joints, directly connecting the two ends of the rack with the steering knuckle of the wheels, transmitting the linear movement of the rack to the wheels to achieve deflection. Working principle
The driver turns the steering wheel, and the torque is transmitted to the steering gear through the steering shaft.
The gear rotates and drives the steering rack to move laterally.
The rack pushes or pulls the steering cross-link rods on both sides.
The cross-link rods drive the steering knuckle, causing the front wheels to turn synchronously according to the geometric relationship.
Key features
Compact structure: The gear and the rack are directly meshed, with high transmission efficiency (up to 90%), and clear road feel.
Mechanical direct connection: In the no-assistance or pure mechanical mode, the force is completely transmitted through this component by human power; modern models often add hydraulic or electric power steering (EPS) on this basis.
Maintenance focus: Common failure points are excessive meshing gap of the rack causing false steering, or loose or worn ball joints of the pull rod causing abnormal noise and deviation.
In short, the "steering gear with pull rod assembly" you mentioned is actually a complete "gear-rack steering mechanism assembly" that includes the small gear, rack, housing, and both ends of the cross-link rods.
The core function of the mechanical steering gear with pull rod assembly (usually referred to as "gear-rack type steering gear") is to convert the rotational motion of the steering wheel into the linear motion of the rack, and drive the wheels to turn through the pull rod assembly, thereby controlling the vehicle's direction of travel.
Specific functional breakdown:
Motion form conversion: The active small gear meshes with the rack, converting the rotational torque input by the driver into left and right reciprocating linear displacement, achieving "rotation to straight line".
Torque amplification and transmission: Through gear reduction and torque increase, the smaller input force from the steering wheel is converted into a larger thrust, which is transmitted through the steering cross-link rods to the steering knuckle, overcoming tire resistance to achieve steering.
Coordination of wheel rotation angles: The pull rod assembly (including inner and outer ball joints) connects the end of the rack to the steering knuckle, ensuring that the left and right wheels turn synchronously according to a specific geometric relationship, reducing tire slippage during steering, and ensuring handling stability.
Road feel feedback: In the mechanical structure, this component can partially reverse the road reaction force to the steering wheel, providing clear "road feel feedback", helping the driver perceive changes in grip.
In short, it is the "heart" of the steering system, responsible for precisely executing steering instructions and connecting the power source with the wheels, and its accuracy directly determines the vehicle's handling sensitivity and safety.
Damage to the mechanical steering gear (steering mechanism) involves core driving safety, and "do not drive with faults". Due to the high integration of this component and its close coupling with the pull rod assembly, the handling solution needs to be strictly distinguished based on the degree of damage:
Core handling principle
Stop immediately: If there is steering heaviness, jamming, abnormal noise, or steering loss of control, it is necessary to pull over to the side of the road and call for a tow truck. Forced driving may cause the vehicle to lose steering completely.
Do not disassemble yourself: The internal preload adjustment of the steering system is precise, and non-professional tools and experience cannot restore the meshing gap. Blind repair will cause erratic steering or locking risks.
Professional diagnosis first: A technician needs to distinguish whether it is "gear-rack wear", "loose or worn ball joint of the pull rod", or "dust cover rupture and water ingress", and different causes require different repair strategies.
Maintenance solution selection
Replace the assembly (recommended)
Applicable situation: Severe wear of the gear-rack, shell crack, internal jamming or old model without separate parts supply.
Advantage: The highest reliability, completely eliminating hidden dangers, including all seals and bearings, no need for repeated debugging.
Note: Be sure to choose the original factory or certified brand assembly, as aftermarket parts may have insufficient accuracy and easily cause rapid re-damage.
Professional overhaul (only for specific situations)
Applicable situation: Only aging sealing parts, slight tooth surface wear or excessive meshing gap, and the vehicle is relatively new and parts are available. Operation: Replace the sealing kit, grind and smooth the tooth surface, or adjust the pre-tightening force of the compression spring.
Risk: The process requires extremely high precision. Improper adjustment of the clearance can cause abnormal steering noise or poor steering return. It is recommended to perform this operation only in a shop with specialized repair qualifications.
Synchronous inspection of related components
When replacing or repairing the gears, it is necessary to check the steering cross-link ball joint and the dust cover. If the link rod is deformed or the ball joint is loose, they must be replaced together. Otherwise, the new gears will accelerate wear due to uneven force.
Key steps after repair
Four-wheel alignment: Disassembling and assembling the link rod assembly will inevitably change the front toe value. After repair, a four-wheel alignment must be performed; otherwise, it will cause abnormal tire wear (scratching the tires) and vehicle deviation.
Road test verification: Test the free travel of the steering wheel (should be <10°), steering return performance, and for any abnormal noises. Ensure that the power assist system (if any) is working properly.
Summary: For the damage of "mechanical steering gears with link rods", the most reliable solution is to replace the steering gear assembly + replace the aged link rod ball joint + perform four-wheel alignment. Do not attempt simple welding or hammering repair at roadside shops. The safety cost is much higher than the repair price difference.
