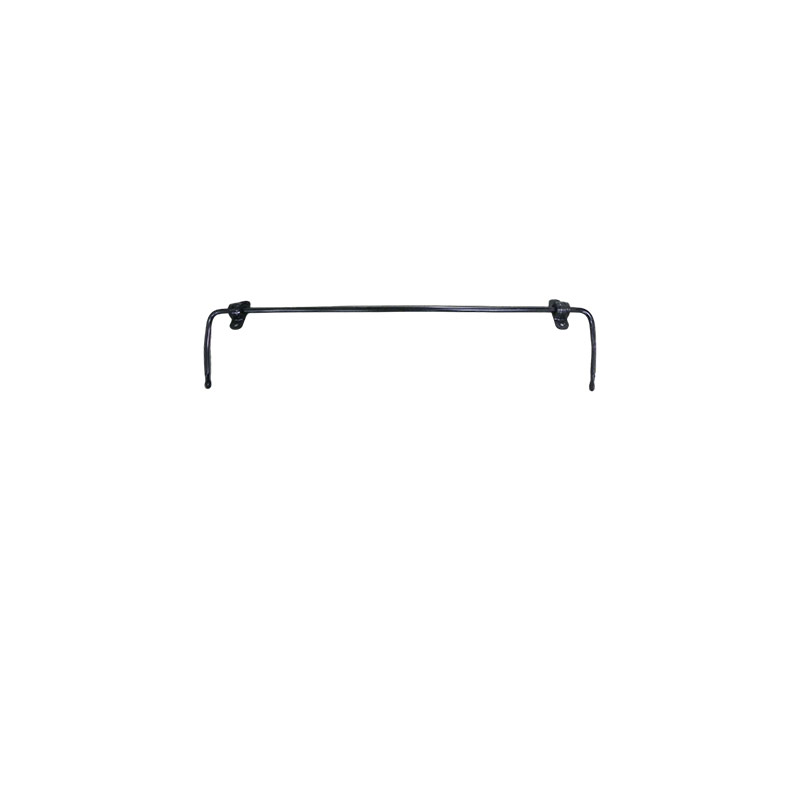

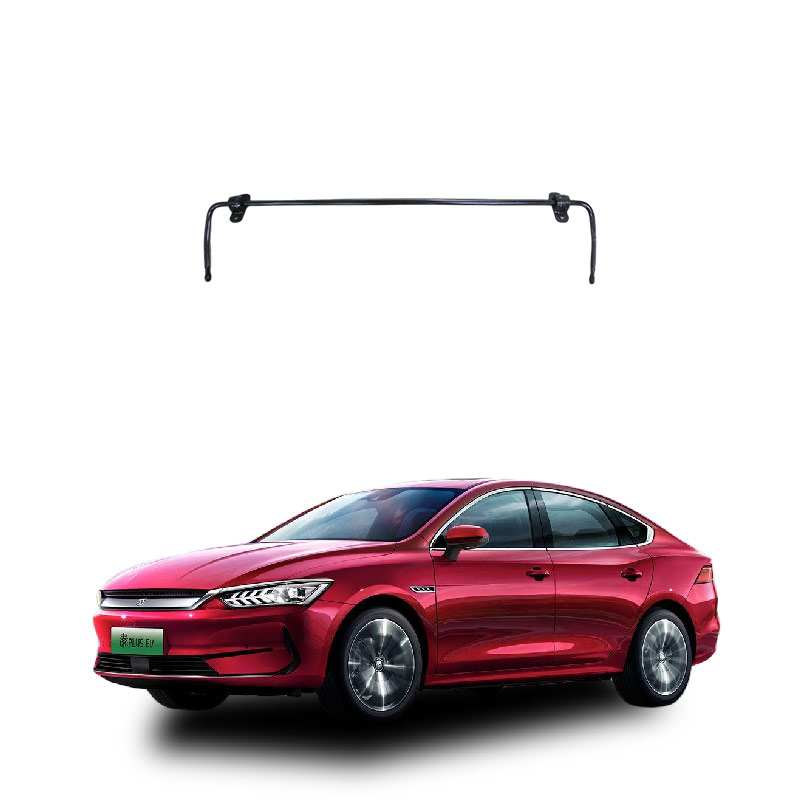

The function of the rear stabilizer bar assembly of the car
The core function of the rear stabilizer bar (also known as the rear anti-roll bar or rear balance bar) is to suppress the vehicle's side roll. During turns or lane changes, it maintains the vehicle's balance by absorbing torsional force. This enhances the vehicle's handling stability and safety.
Core Function
Prevent excessive side roll: When the vehicle experiences centrifugal force during a turn, the outer suspension compresses, the inner suspension stretches, and the stabilizer bar twists and generates reverse elasticity, preventing the vehicle from tilting significantly to one side and keeping the vehicle's posture stable.
Improve handling response: Increase the side roll stiffness of the rear suspension, reduce Vehicle body shaking during high-speed lane changes or continuous cornering， make steering more precise， and reduce the risk of fishtailing.
Optimize tire grip： By balancing the load transfer between the left and right wheels， ensure that the tires better adhere to the ground during cornering， improving traction and braking performance. Working principle
Asymmetric force intervention: When the left and right wheels move in the same direction (such as overall bouncing), the stabilizer bar rotates freely with the vehicle body and thus does not function; only when the left and right wheels move in opposite directions (such as cornering roll) does the bar body get twisted to generate a resistance moment, limiting the deformation of the suspension.
Elastic connection structure: Usually made of spring steel in a "U" shape, the middle part is fixed to the frame through a rubber bushing, and the two ends are connected by connecting rods to the suspension arm. It utilizes the elasticity of the material to achieve dynamic balance. Additional Explanation
Comfort trade-off: The rear stabilizer bar mainly affects lateral stability and has a relatively small impact on vertical vibration damping. If the stiffness is too high, it may transfer more vibrations to one side of the bumpy road, affecting the ride comfort. Therefore, it needs to be matched and adjusted with the suspension system.
Failure impact: If the rear stabilizer bar connecting rod breaks or the rubber sleeve ages, it will cause increased side-slip during cornering, abnormal noises from the chassis, and even instability at high speeds. Regular inspections and maintenance are required.
Fault symptoms of the rear stabilizer bar (anti-roll bar) components mainly manifest as abnormal chassis noises and decreased handling stability, with the core fault points typically being aging and cracking of the rubber sleeve or looseness/breakage of the connecting rod ball joint.
Core fault phenomena
Abnormal chassis noises: When passing over speed bumps or uneven road surfaces at low speeds, the rear part emits "clunk", "creak", or metallic impact sounds, which are more obvious in winter due to low temperatures.
Poor handling: During cornering, the vehicle's side-slip increases significantly, and when changing lanes at high speed, it feels loose and has a tendency to swerve, with increased steering deflection.
Associated damage: Long-term faults can lead to uneven tire wear (single-sided wear), accelerated damage to other suspension components (such as the rubber sleeve of the arm), and even loss of four-wheel alignment accuracy.
Common fault causes
Rubber sleeve aging: Rubber materials become hard and crack due to high temperature and oxidation after 3-5 years, losing their buffering effect and generating frictional noises.
Connecting rod damage: The ball joint of the small connecting rod (like a bunch of plums) is worn and loose, the dust cover is broken and leaks oil, or the rod body is deformed or broken due to bottoming out and collision.
Installation looseness: The fixing bracket bolts are loose or rusted, causing gaps and impacts between components.
Maintenance suggestions and costs
Check method: Lift the vehicle, manually shake the stabilizer bar connecting rod to check the ball joint gap; observe if the rubber sleeve has cracks or peeling; compare the height of the rear wheels to determine if the rod body is deformed.
Maintenance plan:
Connecting rod damage: Replace the stabilizer bar connecting rod assembly. It is recommended to replace both left and right simultaneously to ensure balance.
Rod body deformation: Replace the rear stabilizer bar assembly.
Precautions: After repair, it is recommended to conduct a four-wheel alignment check to avoid abnormal tire wear; for some models, special tools are required to fix the screws to prevent the ball joint from rotating, and it is recommended to be operated by a professional technician.
If the above symptoms occur, please repair as soon as possible to avoid increasing the risk of losing control at high speeds due to loss of vehicle stability.
