Analysis of the Function and Faults of the Left Front Shock Absorber Assembly
In family cars with McPherson front suspension, the left front shock absorber assembly is a core component that integrates functions such as shock absorption, support, and steering. It directly determines the driving comfort, handling stability, and steering accuracy of the front part of the vehicle. As one of the most stressed components in the front suspension, it constantly withstands alternating impacts and is prone to various faults, but is often mistaken by car owners as being related to the tires or the engine. Understanding its core function and common faults can help car owners quickly identify potential problems and ensure safe travel.
Core Components and Function of the Left Front Shock Absorber Assembly

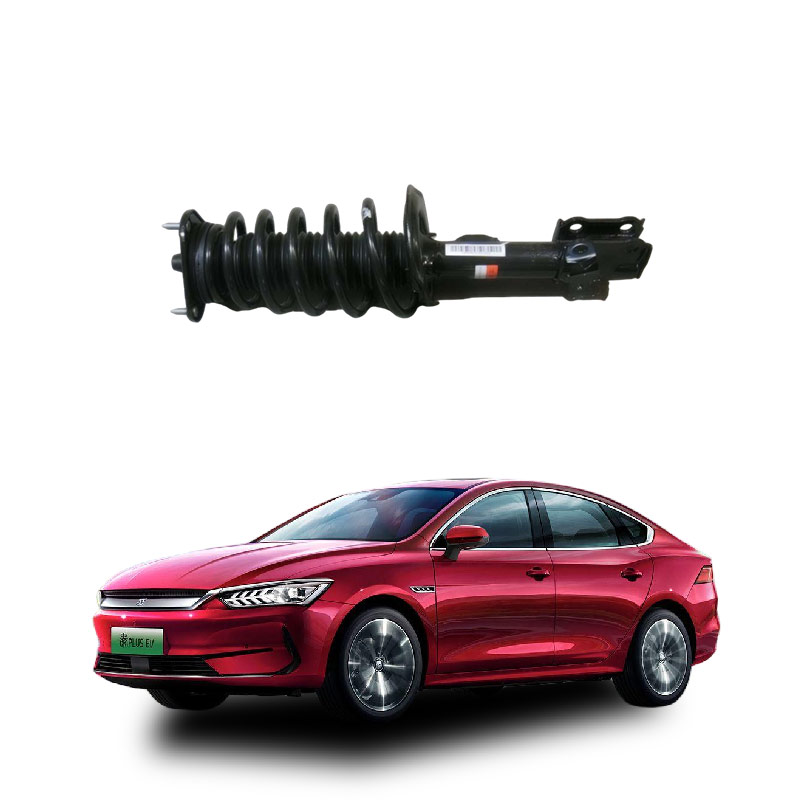

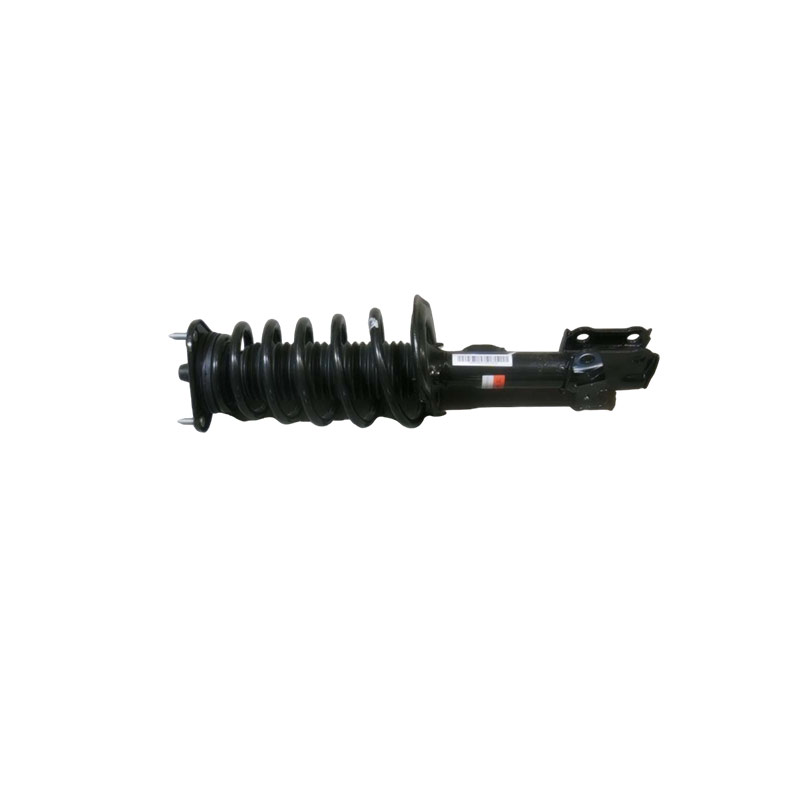

The left front shock absorber assembly is not a single shock absorber but an integrated structure consisting of a shock absorber core, a helical spring, an upper support bearing, a shock absorber dust cover, a buffer block, and a spring seat. The upper end is fixed to the top of the vehicle frame tower through a support seat, and the lower end is connected to the steering knuckle, having the dual functions of a shock absorber and a support arm. Its core function is mainly reflected in four aspects:
First, it supports the weight of the vehicle body to maintain the stability of the vehicle height. The weight of the left front vehicle body and the engine compartment is all borne by the helical spring of the left front shock absorber assembly. The elastic supporting force of the spring can balance the vehicle load and keep the height of the left front vehicle body stable, ensuring that the entire vehicle remains in a reasonable posture. At the same time, the spring combined with the shock absorber can buffer the vertical impact force from the road surface, preventing the vehicle from excessive bouncing, and ensuring the smoothness of the ride. For front-wheel drive vehicles with engine placement at the front, the front axle bears approximately 60% of the vehicle weight. The supporting function of the shock absorber pillar is particularly crucial. If the supporting force decreases, it will directly cause the front of the vehicle to sink, affecting the overall posture of the vehicle.
Second, it filters vibrations, buffers impacts, and improves passenger comfort. When the vehicle passes over bumpy roads, the impact on the wheels will be transmitted to the shock absorber pillar. The helical spring absorbs most of the impact force first, and the shock absorber core suppresses the excessive bouncing of the spring through internal hydraulic damping, converting the impact energy into heat energy and dissipating it, preventing the vehicle from continuous bouncing and vibration, and providing a smooth ride for the driver and passengers. At the same time, the rubber support structure on the upper part of the pillar can further filter high-frequency micro-vibrations and block the transmission of chassis noise to the driver's cabin, ensuring the quietness of the cabin. During daily driving, not bouncing over speed bumps and not experiencing fine vibrations on paved roads without fine shock sensations are all dependent on the buffering and filtering effect of the shock absorber pillar.
Third, it cooperates with the steering system to ensure precise and flexible steering. In the McPherson suspension, the shock absorber pillar itself is the rotating axis of steering. When the wheels turn, the entire shock absorber pillar rotates within the upper support bearing. The upper support bearing can ensure smooth rotation of the pillar and reduce steering resistance, making steering more flexible and precise. At the same time, the lower end of the shock absorber pillar is connected to the steering knuckle, which can maintain the stability of the wheel positioning parameters, ensuring that the steering angle always meets the design requirements and avoiding steering errors or deviations, thereby ensuring the control accuracy of driving.
Fourth, it maintains wheel alignment and improves driving stability. The installation angle of the left front shock absorber assembly directly determines the caster angle and camber angle of the left front wheel. A qualified shock absorber pillar can always maintain stable parameters, keeping the wheels always in contact with the ground, improving tire grip, and ensuring stability in both straight-line driving and cornering, regardless of whether it is driving straight or cornering, the vehicle can maintain stability.
Common Faults and Hazards of the Left Front Shock Absorber Assembly
The left front shock absorber assembly works in complex conditions for a long time. The spring will fatigue and deteriorate, and the shock absorber will leak oil and fail. After 8-100,000 kilometers of use, various faults are prone to occur. Common faults can be divided into four categories:
First, the shock absorber core leaks oil and loses its buffering performance. This is the most common fault. Over time, the oil seal inside the shock absorber will age and wear out, resulting in a decline in sealing performance. Hydraulic oil will seep out from the seal position. After the oil leakage occurs, the damping force of the shock absorber will significantly decrease, making it unable to effectively suppress spring bouncing. The symptoms of the fault include the vehicle's front end continuously bouncing after passing over bumpy roads. When driving on rough roads, a clear "thumping" noise can be heard from the left front. During braking, the head nodding amplitude increases significantly. At high speeds, the vehicle will have a floating sensation, and the grip force decreases. The braking distance also significantly increases, seriously affecting driving safety. Long-term oil leakage can lead to dry grinding inside the shock absorber, eventually causing it to completely jam, resulting in damage to the front suspension structure.
Second, the helical spring undergoes fatigue and degradation, resulting in insufficient support force. The spring continuously bears compressive loads, and the metal gradually ages and loses elasticity, with the free length shortening. The fault is manifested as a significant reduction in the height of the left front vehicle body. When parked, the left front vehicle head can be seen to be lower than the right front. During cornering, the left side's side-slip amplitude increases significantly. At high-speed lane changes, the head's shaking sensation intensifies. The insufficient support also causes the shock absorber to bear greater impacts, accelerating the failure of oil leakage and loss of effectiveness. At the same time, it will change the front wheel alignment parameters, causing abnormal tire wear. If the vehicle is frequently driven with a full load or on rough roads, the fatigue speed of the spring will significantly increase.
Third, the upper support bearing wears out, causing abnormal noise and jamming during steering. The upper support bearing rotates with the steering, and the lubricating grease gradually dries up. The balls and raceways will wear out, and the clearance will increase. The fault is manifested as a clear "clicking" noise coming from the left front cabin position when turning at the same speed or in low-speed turns. The steering resistance will increase, and in severe cases, there will be a feeling of jamming. At high speeds, it will also cause the steering wheel to shake, affecting the steering accuracy. When the wear is severe, the bearing will become stuck, causing the steering to be difficult and affecting driving safety.
Fourth, the pillar body deforms and bends, causing inaccurate positioning parameters. Most are caused by collisions, such as tires scraping against the curb or a front collision. This will cause the shock absorber pillar body to bend and deform. After deformation, the front wheel positioning parameters will be directly changed, causing the vehicle to veer to the left. The driver needs to constantly correct the direction to maintain straight driving. At the same time, the left front wheel will have severe wear. The tire lifespan will be significantly shortened. At high speeds, the steering wheel will have continuous shaking, seriously affecting driving stability. Long-term driving will also accelerate the wear of the steering mechanism.
Fault diagnosis and repair response
During daily driving, simple methods can be used to troubleshoot the faults: Press the front of the vehicle at the same speed and release it. If the front of the vehicle continues to bounce more than 2 times, it indicates that the shock absorber has failed. Observe whether the left and right vehicle heights are consistent. When parking, measure the wheel arch gap. If the left front is lower than the right front by more than 1 cm, it indicates that the spring has undergone fatigue and degradation. Press the left front tower top position during steering to listen for any abnormal noise. Determine if the support bearing is worn out. During each maintenance, check if the shock absorber is leaking oil. If a problem is found, replace it promptly.
When replacing the shock absorber assembly, it is recommended to choose products that are compatible with the original factory specifications. It is best to replace both the left and right sides simultaneously to avoid the imbalance of support force caused by different old and new parts, which may disrupt the vehicle's balance. After replacement, a four-wheel alignment must be performed to adjust the front wheel positioning parameters to avoid veering, abnormal wear, and other problems.
The left front shock absorber assembly is the core component of the front suspension, directly affecting the comfort and safety of driving. Timely replacement of faulty components can restore the vehicle's stability performance and ensure driving safety. </doc_start> This is the content generated based on your requirements. If further modifications are needed, please continue to propose.
