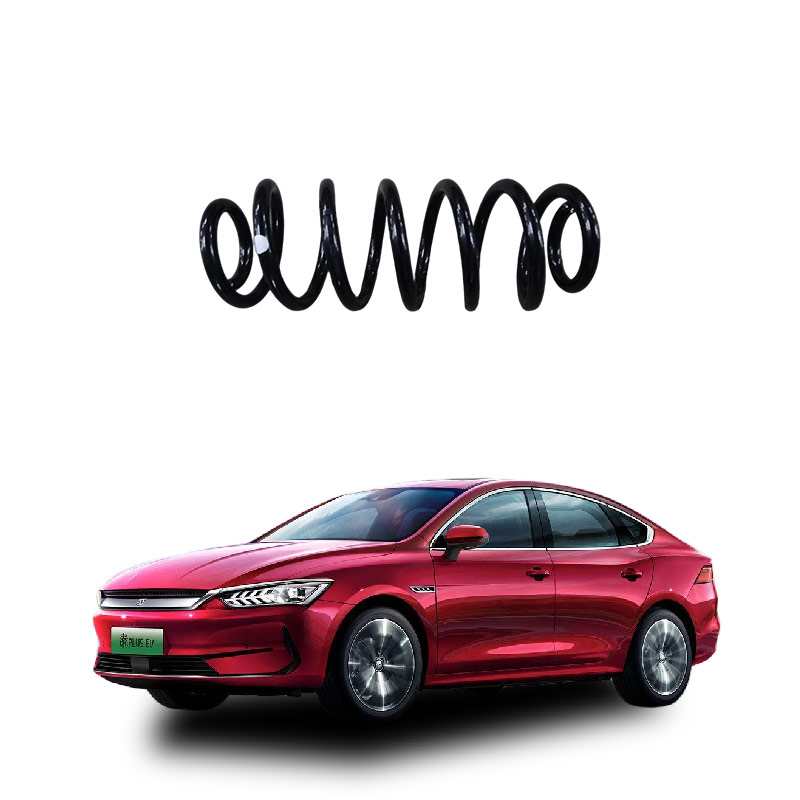

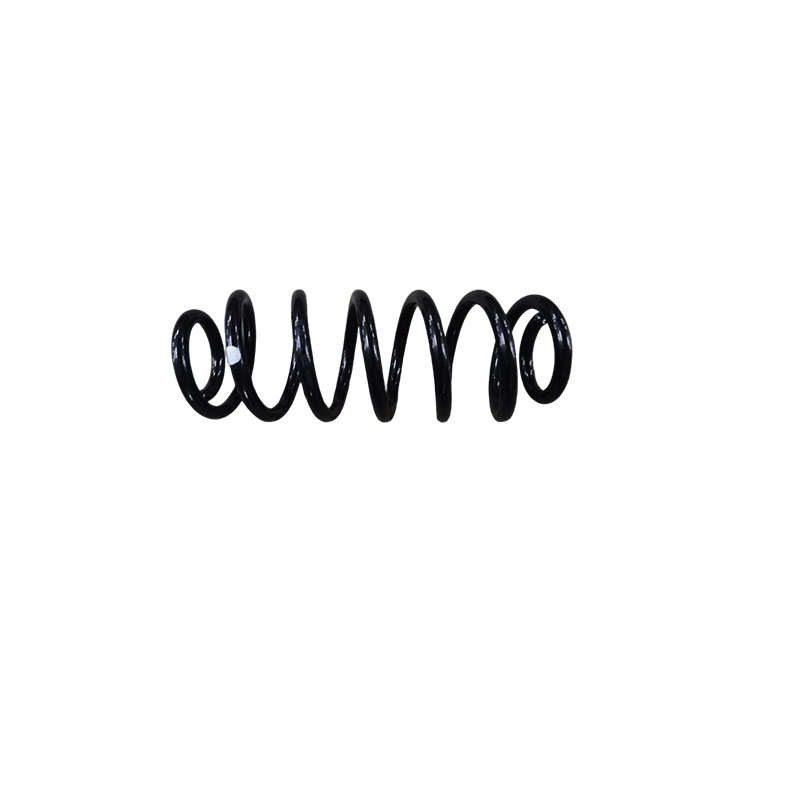

The function of the rear coil springs of the car
The core function of the rear coil springs in a car is to act as an elastic element, mainly responsible for two functions: supporting the weight of the vehicle body and buffering road impacts.
Core Function
- Withstand vertical loads: Directly supporting the static and dynamic weight of the vehicle's rear, maintaining the vehicle's height and posture.
- Absorb road shocks: When the wheels encounter bumps, they compress and deform to absorb energy, isolating the transmission of road vibrations to the vehicle body, enhancing passenger comfort.
- Maintain tire adhesion: Utilizing the elastic restoring force to make the wheels quickly follow the ups and downs of the road, ensuring tire contact with the ground, and guaranteeing grip and driving stability.
Key Characteristics and Limitations
- No damping function: The coil spring only performs "energy storage" and "energy release", unable to attenuate vibrations (i.e., the spring will repeatedly rebound), so it must be used in conjunction with a shock absorber (shock cylinder) to effectively suppress vehicle swaying.
- No guiding function: It can only withstand vertical forces and cannot transmit longitudinal or lateral forces and torques. It relies on control arms, push rods, and other guiding mechanisms to constrain the movement trajectory of the wheels.
- Structural Advantages: Compared to steel plate springs, it has the characteristics of being lightweight, occupying less space, and requiring no lubrication, making it more suitable for modern passenger cars' requirements for space and comfort.
In summary, the rear coil springs are the "buffer" and "pillar" of the suspension system, responsible for bearing weight and absorbing shocks, but they need to be combined with shock absorbers and linkage mechanisms to form a complete rear suspension system.
If the rear coil springs of a car fail, it will directly disrupt the suspension support and buffering balance. Do not drive with a faulty vehicle; it must be immediately repaired.
Core Fault Symptoms
- Abnormal vehicle posture: When the vehicle is stationary, there is a significant tilt (height difference of more than 5mm on both sides), or the trunk area presents a "sagging buttocks" visual effect.
- Frequent abnormal noises during driving: When passing over speed bumps or potholes, the rear emits metallic impact sounds ("bang bang") or friction sounds ("click"), different from the dull sound of a leaky shock absorber.
- Decreased handling and comfort: Increased side roll during cornering, severe nodding vibrations during emergency braking, and abnormal single-sided wear of tires.
- Uncontrolled rebound: After releasing the pressure on the vehicle body, the rear begins to shake up and down more than twice before stopping (normally it should stabilize within 1 second).
Emergency Handling Suggestions
- Immediately stop and inspect: A broken coil spring may cause wheel alignment errors or wheel detachment, posing a risk of loss of control. Do not continue long-distance or high-speed driving.
- Pair replacement principle: When repairing, both sides must be replaced simultaneously to avoid new and old spring stiffness differences causing new vehicle tilting and handling imbalance.
- Comprehensive repair: After replacing the coil springs, re-perform four-wheel alignment and check if the shock absorbers and bushings have been damaged due to long-term uneven force.
- Refuse to repair old parts: Cracks caused by metal fatigue cannot be restored in strength through welding or correction; they can only be replaced. Do not attempt to repair them yourself.
Common Misconceptions
- Differentiating between bushing faults: For some models (such as Volvo SPA platform), the rear suspension uses transverse leaf springs. If only a "clicking" sound occurs when the vehicle is cold, it may be due to aging rubber bushings at both ends. Replacing the bushings alone is sufficient, without replacing the entire spring assembly.
- Misjudging non-air suspension: If the vehicle is equipped with air suspension, vehicle collapse should be initially checked for air tanks or air pumps, rather than mechanical coil springs.
It is recommended to promptly visit a reputable repair facility with a chassis lifting device for visual inspection (check if the coil springs are broken, rusted, or have paint cracks).
