The Function and Fault Analysis of the Rear Right Installation Bracket Assembly of the Vehicle Rear Sub-frame
In family cars designed with a monocoque body structure, the rear sub-frame is the core integrated platform that integrates the rear suspension and powertrain system, capable of isolating chassis vibrations and enhancing the overall rigidity of the vehicle body. The installation brackets connecting the sub-frame to the vehicle body are the key load-bearing nodes that ensure the stable operation of the sub-frame. Among them, the rear right installation bracket assembly, as the core load-bearing unit among the four fixed points of the sub-frame, not only needs to withstand alternating impact forces but also must ensure the positioning accuracy of the sub-frame. Once it fails, it will directly disrupt the force balance of the entire rear chassis, causing various driving problems. Understanding the function and fault characteristics of this component can help car owners promptly identify potential hazards and ensure driving safety.
The core function of the rear right installation bracket assembly

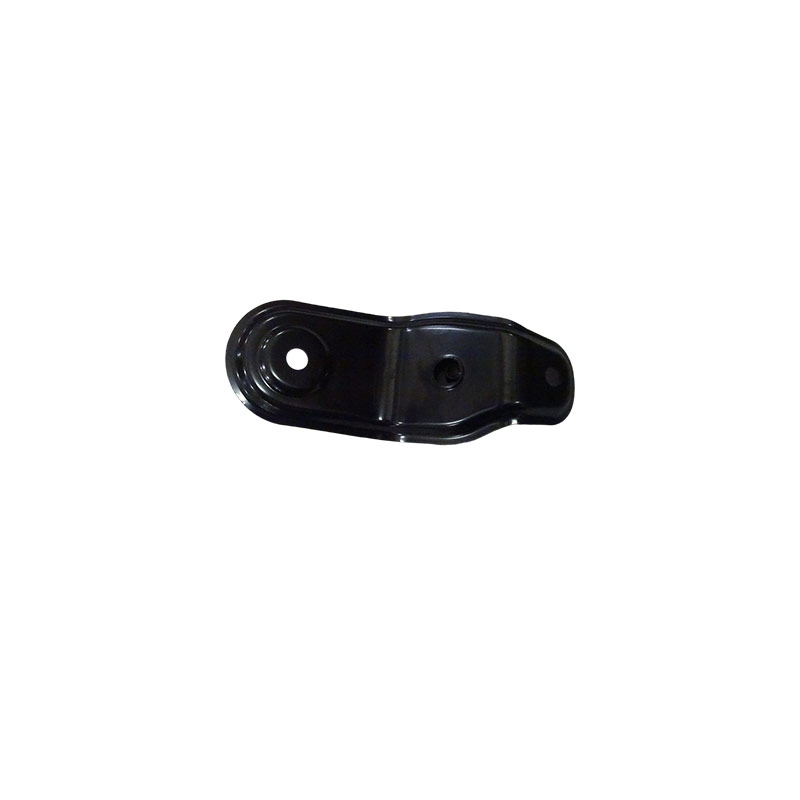

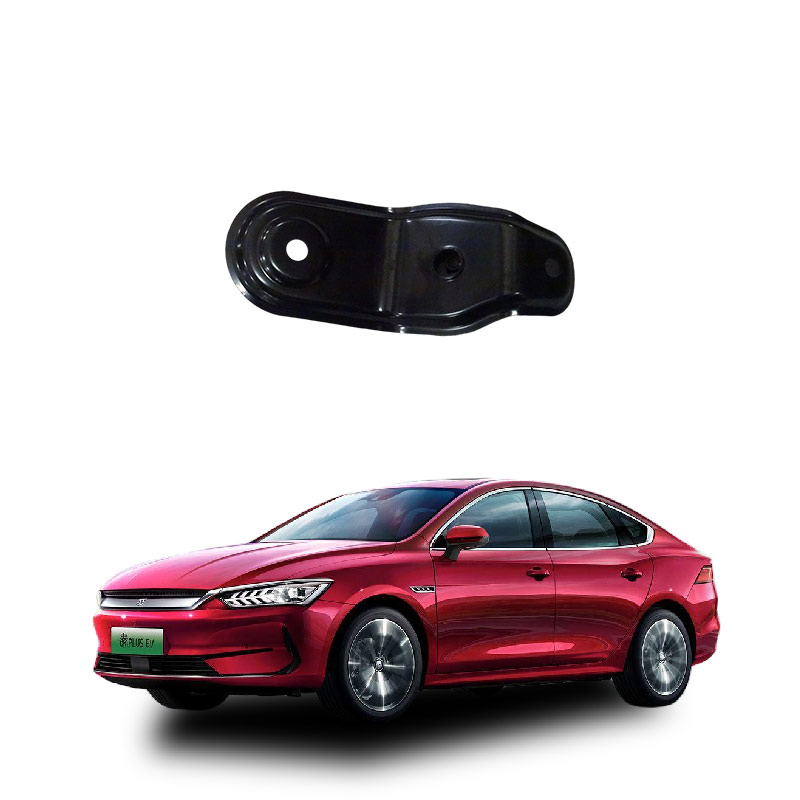

The rear right installation bracket assembly of the rear sub-frame is not a single metal sheet, but an integrated structure composed of a high-strength bracket body, elastic buffer pads, positioning pins, fastening bolts, and limit pads. It is located between the rear end of the rear sub-frame and the longitudinal beam of the vehicle body floor. Its core functions mainly include four aspects:
First, fix and position the sub-frame, ensuring installation accuracy. The rear sub-frame integrates multiple components such as the rear suspension, differential, and exhaust pipe, and the accuracy of the overall installation position directly affects the working state of all components. The rear right installation bracket, in conjunction with the other three corner installation brackets, firmly locks the sub-frame in the designed position of the vehicle body floor, ensuring that the relative position deviation of the sub-frame and the vehicle body is controlled within millimeter levels, thereby maintaining the accurate positioning parameters of the rear suspension components and avoiding problems such as misaligned rear wheel positioning and tire wear due to position deviation. Without the precise fixation of the installation bracket, the sub-frame will shift during driving, and the working accuracy of the entire rear chassis will be affected.
Second, distribute load transfer and protect the vehicle structure. The rear sub-frame itself and the integrated suspension, transmission components can weigh up to several hundred kilograms. During vehicle operation, the bouncing of the rear suspension and the operation of the transmission system will generate continuous alternating impact forces. These loads need to be transmitted to the vehicle body through the four installation brackets. The rear right installation bracket is made of high-strength steel and is formed by stamping, which can evenly distribute the gravity and impact force from the sub-frame to the vehicle body longitudinal beam, avoiding local stress concentration that causes the vehicle body floor sheet metal to deform and crack, protecting the vehicle body structure from damage and extending the service life of the vehicle body.
Third, buffer and isolate vibration, improve the riding comfort. The installation bracket is not a rigid connection between the sub-frame and the vehicle body, but sets rubber buffer pads between the bracket and the sub-frame, and between the bracket and the vehicle body. The rubber pads can absorb the high-frequency vibrations transmitted from the sub-frame, blocking the transmission of chassis vibrations and noise to the cabin, reducing the vibration and abnormal sounds in the rear seats, and improving the riding comfort and comfort of the passengers. Especially at high speeds, the fine vibrations on the road are filtered by the buffer pads, and the vehicle body will not resonate, keeping the cabin inside quiet. At the same time, the buffer pads can also counteract the thermal expansion and contraction stress caused by temperature changes of the vehicle, avoiding metal expansion and compression that causes component deformation.
Fourth, enhance the overall rigidity of the chassis and improve handling stability. The four installation brackets firmly fix the sub-frame on the vehicle body, allowing the sub-frame and the vehicle body to form an integral rigid structure, improving the torsional and bending stiffness of the entire rear chassis. During vehicle cornering, the side load can be evenly transmitted to the entire vehicle through the sub-frame and installation brackets, reducing the deformation of the rear end and lowering the cornering roll amplitude, improving handling stability. For vehicles with multi-link independent rear suspension, the rigidity of the sub-frame directly affects the positioning accuracy of the suspension, and the installation bracket is the fundamental guarantee for maintaining the precise force state of the suspension, enhancing the handling limit.
Common faults and hazards of the rear right installation bracket assembly The rear right mounting bracket is constantly exposed to the complex environment of the chassis, having to withstand alternating impacts as well as corrosion from mud, water, and salt. After being used for eight to ten years, it is prone to various malfunctions. The common faults can be classified into four categories:
First, the buffer pad blocks age and crack, causing the isolation and shock absorption to fail. The buffer pad blocks are mostly made of rubber and are subjected to compression over a long period, exposure to high and low temperatures, and erosion by chassis oil. They gradually age and harden, losing elasticity, and eventually develop cracks, fall off, or even break. Once the buffering fails, the sub-frame and the bracket become rigidly connected, causing vibrations to directly transfer to the vehicle body during driving. At idle and high-speed driving, there will be obvious resonance noises in the rear seat, and when driving on bumpy roads, a loose "thumping" sound will be heard from the right rear chassis. The interior quietness will significantly decrease, and long-term vibration will accelerate the wear of the sub-frame and rear suspension components, shortening the service life of the chassis components.
Second, the bracket itself deforms or shifts, causing the sub-frame positioning to be inaccurate. The main causes of deformation include three types: First, if the right rear part of the vehicle experiences rear-end collisions, reversing collisions, or bottoming out and colliding with the sub-frame, the external force transmission causes the mounting bracket to deform. Second, long-term overloading driving causes the bracket to exceed the design limit and gradually undergo plastic deformation. Third, the fixing bolts remain loose for a long time without being addressed, causing the bracket to shake and shift. After deformation or shift, the overall position of the sub-frame will change, directly leading to changes in the positioning parameters of the rear suspension. The vehicle will start to veer to the right, requiring continuous steering corrections to maintain straight driving. At the same time, the right rear wheels will experience uneven wear, and the tire lifespan will be shortened by more than one-third. The shift of the sub-frame will also cause friction and interference between the exhaust pipe, transmission shaft, and surrounding components, causing additional abnormal noises, and even cracking the exhaust pipe, resulting in air leakage.
Third, the mounting bracket rusts and develops holes, reducing the structural strength. The rear right mounting bracket is located at the bottom of the vehicle and is constantly exposed to the splashing mud and snow salt on the road surface. Owners in coastal areas may also be affected by salt fog corrosion. If the chassis anti-corrosion layer is damaged and not repaired in time, the rust will gradually spread from the surface to the interior of the bracket, eventually causing the bracket to rust through and lose its structural strength. Insufficiently strong brackets are prone to elastic deformation during driving and cannot fix the sub-frame position. During high-speed driving, the rear end will have a floating and swaying sensation, and during cornering, the side-slip amplitude will increase significantly. In severe cases, the bracket may break, causing the sub-frame at the right rear to detach, directly threatening driving safety.
Fourth, the fixing bolts become loose and slip, causing the bracket clearance to increase. The repeated vibrations during long-term vehicle use will cause the bolts securing the bracket to gradually loosen. After long-term contact with mud and rust, they may also become slippery and stuck, unable to be tightened to the standard torque. After loosening, there will be clearance between the bracket and the sub-frame and the vehicle body, causing continuous "clicking" noises during driving. The noise becomes more obvious during acceleration. The long-term presence of this clearance will accelerate the wear of the bracket and the buffer pad blocks, gradually causing the bracket to deform and shift, resulting in the same damage as the deformation of the bracket.
Fault diagnosis and maintenance response
During daily vehicle maintenance, when lifting the vehicle for a major service and checking the chassis, it is possible to simultaneously check the condition of the rear right mounting bracket. Observe whether the buffer pad blocks are cracked, whether the bracket is rusted and deformed, and whether the bolts are loose. If any problems are found, they should be addressed promptly. If the vehicle has experienced a collision or bottoming out, even if there is no obvious damage to the appearance, it is necessary to check whether the bracket has deformed. At the same time, perform four-wheel alignment to check if the rear wheel positioning parameters are abnormal.
If only the buffer pad blocks are cracked, they can be replaced individually without replacing the entire bracket. If the bolts are loose, they can be re-tightened to the original factory standard torque. If the bolts are slipping, the threads need to be repaired or the bolts replaced. If the support structure shows deformation, cracking or severe rusting, the original factory-compatible support structure must be replaced entirely. It is not allowed to attempt to repair it by welding, as this could lead to insufficient strength and pose safety hazards. After replacement, a four-wheel alignment needs to be redone to adjust the rear wheel alignment parameters to ensure stable driving.
The right rear installation support structure of the rear sub-frame may seem insignificant, but it is the foundation for the overall stability of the rear chassis. Timely inspection and maintenance can prevent small problems from escalating into major faults, ensuring the stability and safety of vehicle driving.
