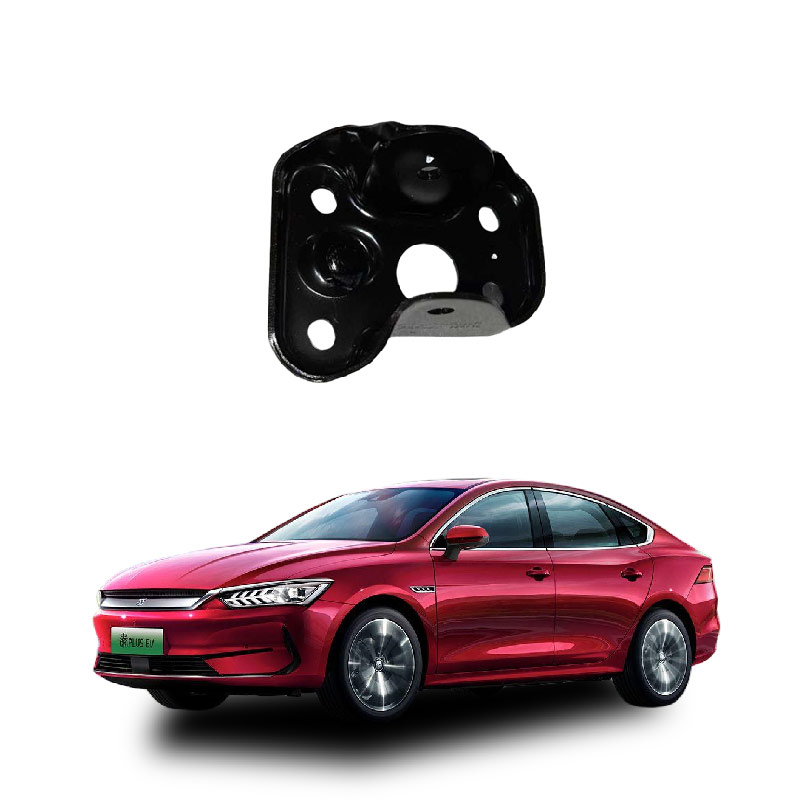

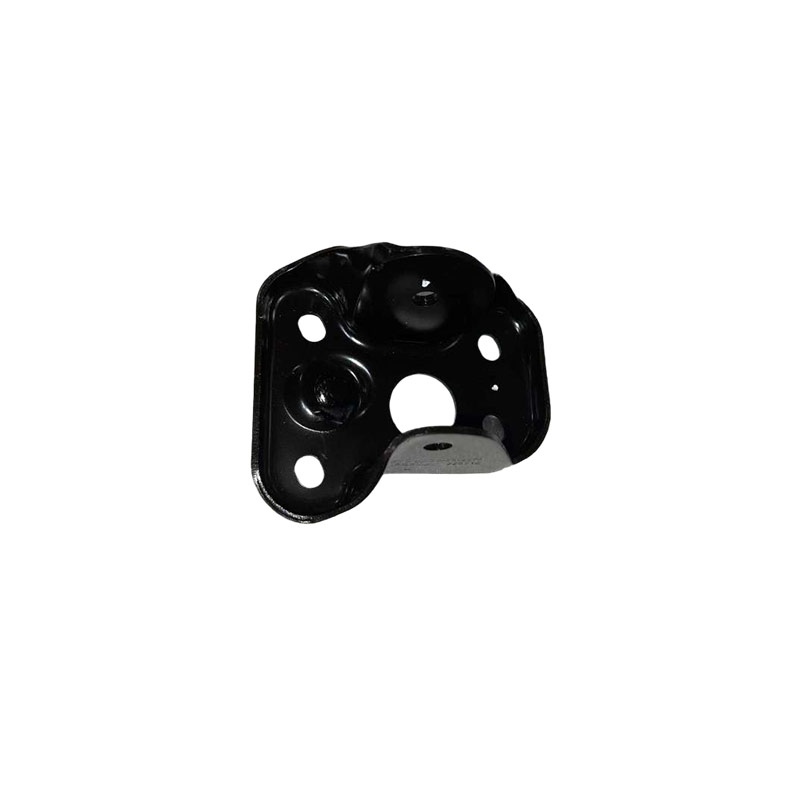

The Function and Fault Analysis of the Right Rear Torque Beam Mounting Bracket Assembly
In family car models that adopt the torsion beam semi-independent rear suspension, the torsion beam is the core structure that bears the force from the rear wheels and provides shock absorption. The mounting bracket that connects the torsion beam to the vehicle body is the fundamental load-bearing unit that ensures the stable operation of the entire rear suspension. The right rear torsion beam mounting bracket assembly, as the connection node between the single-sided torsion beam crossarm and the vehicle body, not only needs to withstand alternating impact forces but also ensure positioning accuracy. Once it fails, it directly affects the rear wheel positioning and driving stability, and may even cause serious safety hazards. Understanding the function and fault characteristics of this small component can help car owners promptly identify and solve problems, ensuring travel safety.
The Core Function of the Right Rear Torque Beam Mounting Bracket Assembly
The right rear torsion beam mounting bracket assembly is not a simple metal bracket. It is an integrated structure consisting of the bracket body, rubber bushing pressing seat, fixing bolts, and positioning pins. It is installed at the bottom longitudinal beam position of the vehicle body and connects the right torsion beam crossarm to the vehicle body. Its core functions are reflected in four aspects:
First, it fixes and positions the torsion beam, ensuring precise rear wheel parameters. The left and right torsion beam crossarms of the torsion beam rear suspension are fixed to the vehicle body through the mounting brackets on both sides. The right rear mounting bracket firmly locks the right torsion beam crossarm in the designed position, ensuring the overall installation angle of the torsion beam is accurate, thereby keeping the right rear wheel always at the standard camber angle, front toe angle, etc. If the bracket position is offset, the entire rear wheel positioning will be inaccurate, directly affecting the stability of straight-line driving and the wear condition of the tires. For most family small cars, the installation accuracy of the torsion beam directly determines the rear passenger experience. The positioning function of the bracket is irreplaceable by other components.
Second, it disperses the force and protects the vehicle structure. During vehicle operation, the longitudinal impact force and vertical load on the right rear wheel will be transmitted to the mounting bracket through the crossarm. The bracket needs to evenly distribute these forces to the vehicle body longitudinal beams to avoid excessive stress causing the vehicle body's sheet metal to deform or crack. The bracket body is mostly made of high-strength steel and has sufficient structural strength to withstand the maximum design load impact. It evenly transmits the force to the entire vehicle chassis structure to avoid concentrated stress and damage to the vehicle body.
Third, it buffers vibrations and improves ride comfort. The core structure of the right rear mounting bracket is the rubber bushing pressing seat, which is used to fix the rubber bushing of the torsion beam crossarm. The bushing itself is responsible for buffering vibrations and isolating noise, while the bracket provides a stable installation foundation for the bushing to ensure it can function as a buffer normally. When the right rear wheel passes over bumpy roads, the crossarm drives the bushing to undergo elastic deformation. The bracket stably transmits the bushing's force, avoiding unnecessary displacement of the bushing, ensuring consistent buffering effect, and blocking the vibration from the torsion beam directly to the vehicle body, reducing the vibration and abnormal noise felt by the rear passengers, and improving ride comfort.
Fourth, it resists roll and enhances stability, and cooperates with the torsion beam to exert performance. When the vehicle turns, centrifugal force causes the vehicle to tilt to the right. The right torsion beam crossarm will bear greater lateral force. The right rear mounting bracket can firmly fix the end of the crossarm, limiting the lateral displacement of the crossarm, and cooperating with the torsion beam's own torsional stiffness to increase the overall lateral stiffness, reducing the lateral deflection during cornering, and ensuring vehicle handling stability. Without the rigid fixation of the bracket, the torsion beam cannot exert its expected anti-roll effect, and the rear end will show obvious shaking during cornering, affecting driving safety.
Common Faults and Hazards of the Right Rear Torque Beam Mounting Bracket Assembly
The right rear torsion beam mounting bracket assembly is constantly subjected to alternating impact forces and is exposed to the chassis environment, corroded by mud, water, and salt. It is prone to various faults. Common faults can be divided into four categories:
The most common fault is the cracking of the bushing installation seat, resulting in a loss of buffering performance. Due to prolonged exposure to repeated impacts and the increased hardness of the rubber bushings after aging, the impact force will concentrate at the mounting seat position. Over time, this will lead to cracking of the mounting seat. In some vehicle models, the bushings and the brackets were pressed together too tightly during design, or the vehicle was overloaded for a long time, which also accelerated the cracking of the mounting seat. The most direct symptom after cracking is that there is a loose and abnormal noise from the right rear chassis when passing over speed bumps or driving on bumpy roads. At the same time, the stability of the right rear body decreases, and the right rear end exhibits a significant shaking sensation when cornering. Long-term driving will cause the cracking area to expand, and eventually, the bushing may come off from the bracket, directly threatening driving safety.
The second issue is the deformation and displacement of the bracket body, and the loss of rear wheel alignment. The main causes of deformation include three types: First, rear right parts may suffer from rear-end collisions or rearward scraping collisions, even a minor collision can lead to deformation and displacement of the bracket; Second, long-term overloading, the load borne by the bracket exceeds the design limit, and it gradually undergoes plastic deformation; Third, the fixing bolts are loose and not promptly handled, and the long-term shaking causes the bracket to shift. After deformation and displacement, the most direct impact is that the right rear wheel alignment parameters change, and the vehicle will deviate to the right. The driver needs to continuously correct the direction to maintain straight driving, and at the same time, the right rear wheel will exhibit abnormal wear, and the tire service life will be shortened by 30% to 50%. The deformation will also cause the overall force distribution of the torsion beam to be uneven, accelerate the wear of the left bracket and the torsion beam body, and shorten the service life of the entire rear suspension.
The third issue is the rusting and perforation of the bracket, and the decrease in structural strength. Since the bracket is located at the bottom of the vehicle and is in contact with the splashed mud and snow salt on the road surface for a long time, it is prone to rust. If the owner rarely cleans the chassis, the rust layer is damaged, and the rust will gradually spread from the surface to the interior, eventually causing the bracket to perforate and the strength to decrease. After rusting, the stiffness of the bracket is significantly reduced, and it is prone to elastic deformation during driving, unable to fix the position of the torsion beam, which will cause a significant increase in the bumpiness in the rear seat when cornering. At high speeds, the rear end will sway, and in severe cases, the bracket may break.
The fourth issue is the loosening and toothing of the fixed bolts, and an increase in the clearance of the support. Repeated vibrations during long-term driving can cause the bolts of the fixed support to gradually loosen. After the bolts rust, toothing may occur, making it impossible to firmly fix the support on the vehicle body. After loosening, there will be clearance between the support and the longitudinal arm, and during driving, the right rear will continuously emit a "clicking" abnormal sound. The abnormal sound becomes more obvious during bumps. If the clearance persists for a long time, it will accelerate the wear of the support and the bushing, gradually causing the support to deform and shift, ultimately leading to the same fault damage as the deformation of the support itself.
Fault Diagnosis and Maintenance Measures
During daily use, when lifting the vehicle for maintenance each time, you can simultaneously check the condition of the right rear torsion beam installation support. Observe whether the support is rusted, whether the mounting seat is cracked, and whether the bolts are loose. If any problems are found, they should be dealt with promptly. If the right rear part of the vehicle has been involved in a collision, even if there is no obvious damage to the appearance, it is necessary to promptly check whether the support is deformed and check the parameters of the rear wheels to see if they are abnormal. If the support is slightly loose, the bolts can be re-tightened according to the standard torque. If the bolts are toothed, they need to be re-tapped or replaced. If the support is cracked, deformed or severely rusted, a new original factory support must be replaced as a whole. It is not allowed to repair it by welding forcibly to avoid insufficient strength and leaving safety hazards. After replacement, a four-wheel alignment must be performed to adjust the parameters of the rear wheels to ensure stable driving.
The right rear torsion beam installation support component is not large in size, but it is the foundation for the stable operation of the entire rear suspension. Timely inspection and maintenance can prevent small problems from evolving into major faults, ensuring the stability and safety of vehicle driving.
