Analysis of the Function and Faults of the Left Front Drive Half Shaft Assembly
For most front-wheel-drive vehicles, the left front drive half shaft is the core component in the transmission system that connects the gearbox differential and the left front wheel, and it is responsible for transmitting power and adapting to the suspension's bouncing. As the final link of power output, its working condition directly affects the efficiency of power transmission, driving stability, and driving safety. Many car owners often misjudge shaking and abnormal noises as problems with the tires or the engine when encountering them, ignoring the issue of the half shaft assembly. Understanding its function and common faults can help us quickly identify the problem and avoid the expansion of potential risks.
The core function of the left front drive half shaft assembly

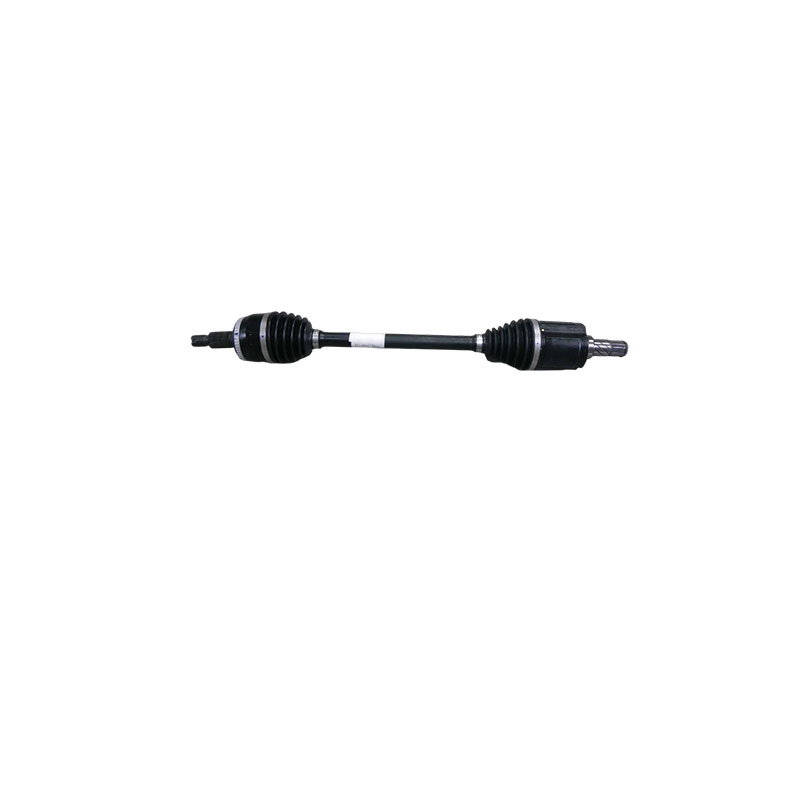

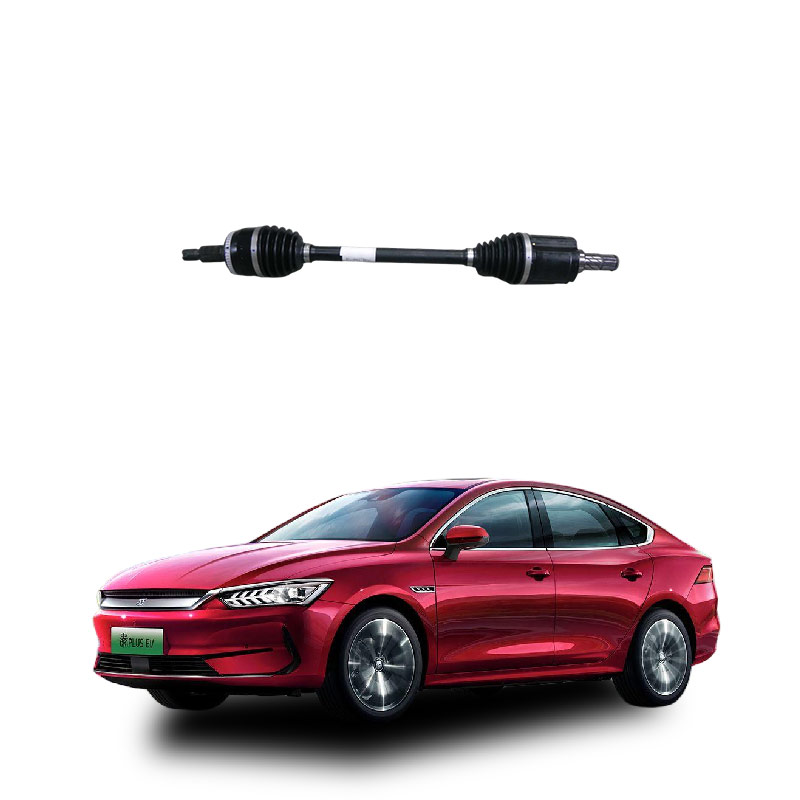

The left front drive half shaft is not a simple solid shaft but an integrated component consisting of the half shaft body, two universal joints (ball cages), universal joint housing, dust cover, and lubricating grease. The side close to the gearbox is called the inner ball cage, and the side close to the wheel is called the outer ball cage. Its core function mainly lies in two aspects:
First, it transmits power and realizes variable-angle power output. The torque output by the engine, after passing through the gearbox and differential, needs to be transmitted to the wheel through the drive half shaft. The left front half shaft transfers the torque output by the differential to the left front drive wheel, driving the vehicle to move. It is an indispensable hub for power transmission. More importantly, during vehicle operation, the suspension will bounce up and down with the road surface, and when steering, the wheels will deviate at a certain angle from the main pin. The relative position and angle between the wheel and the gearbox differential are constantly changing. The universal joints (ball cages) at both ends of the half shaft can adapt to this angle change. No matter how the wheel bounces or steers, it can ensure a stable and continuous power output without power interruption or stalling. This is the core design that allows front-wheel-drive vehicles to balance driving comfort and power stability.
Second, it matches different conditions and ensures smooth transmission. The ball cage structure of the left front half shaft adopts high-precision rollers and steel balls, with strict gap control. During rotation, it can smoothly transmit power without power shock, ensuring smoothness during starting and acceleration. At the same time, the half shaft body is forged from high-strength alloy steel, capable of withstanding large torque output. Whether it is low-load daily commuting or high-load acceleration and climbing, it can stably withstand the torque without breaking or deforming, meeting the usage requirements of different conditions. For front-wheel-drive platform models with four-wheel drive systems, the left front half shaft also needs to cooperate with the central differential to distribute power, ensuring the matching of power output between the front and rear axles and improving the vehicle's grip and off-road passing performance.
Common faults and hazards of the left front drive half shaft assembly
The left front drive half shaft is subjected to alternating torque for a long time, and the ball cage and dust cover are prone to wear and are easy to fail after 8-100,000 kilometers of use. Common faults can be divided into four categories:
The most common is the damage and leakage of the dust cover, causing wear of the ball cage. The dust cover is a rubber sleeve wrapped around the ball cage, which functions to prevent dust, mud, and water from entering the ball cage and locking the internal lubricating grease to prevent its loss. During vehicle operation, the dust cover will constantly bend with the rotation of the wheel, and it is exposed to the oil stains on the chassis, high and low temperature changes, and may be scratched by sharp stones during driving. When the dust cover is damaged, the lubricating grease will be flung out under the centrifugal force, and dust and sand will quickly enter the ball cage rollers, accelerating the wear of the steel balls and rollers. In short, it will cause the ball cage to fail within two to three months.
The second type is wear and looseness of the ball cage, causing abnormal noise and shaking. When the lubricating grease is lost and impurities enter, the steel balls and rollers inside the ball cage will gradually wear and the gap will continuously increase. In the early stage of the fault, the wear of the outer ball cage will be manifested as a clear "click-click" abnormal noise when making low-speed large-angle turns, and the noise disappears when steering returns to normal. As the wear intensifies, abnormal noise will also occur during straight-line driving and acceleration. When the inner ball cage wears out, it will manifest as a "buzzing" vibration sound from the left front chassis during acceleration or during coasting, and the vibration becomes more pronounced during sudden acceleration. In the later stage of wear, if the gap between the ball cage is too large, it will cause significant shaking of the left front wheel during vehicle start-up and acceleration, and the entire vehicle will experience continuous shaking at high speeds, seriously affecting driving experience and safety.
The third type is deformation of the half shaft body or imbalance in dynamic balance. The main cause of deformation is collision, such as tires scraping against the curb or a front-end collision accident, which can cause the half shaft to bend and deform; if the operation is improper when replacing the ball cage, it can also lead to imbalance in dynamic balance. After deformation and dynamic balance imbalance, the most obvious symptom is that the steering wheel shakes significantly during high-speed driving, and the shaking becomes more obvious as the speed increases, which is very similar to the symptom of tire dynamic balance imbalance, making it difficult to distinguish. Long-term deformation driving will exacerbate the wear of bearings and the ball cage, and also cause uneven tire wear on the front wheels, shortening the service life of the tires, and in severe cases, it may even cause the half shaft to break.
The fourth type is half shaft fracture, which is the most serious fault. It is mostly caused by long-term overloading, unaddressed hidden deformation after a collision, and fatigue aging. After the half shaft fractures, the left front wheel loses power directly, and front-wheel drive vehicles will experience power interruption, sudden engine stall, and if it occurs at high speed, it will directly cause a serious traffic accident, with unimaginable consequences.
Daily maintenance and fault handling
During daily driving, maintaining the left front half shaft is actually very simple: during regular maintenance, when lifting the vehicle, you can simultaneously check the dust covers of the left and right half shafts, observe whether there is cracking or oil leakage, and replace the dust cover in time if it is damaged. Reapply lubricating oil and only a few hundred yuan can avoid the failure of the ball cage, significantly reducing maintenance costs. If the vehicle has scraped against steps or has experienced a collision, it is necessary to check if the half shaft is deformed. When there is abnormal noise during turning or shaking at high speed, it is necessary to go to the repair shop for inspection, confirm the wear of the ball cage, and replace the half shaft or the ball cage assembly in time. Do not force the vehicle to continue driving, to avoid the expansion of the fault. When replacing the half shaft, choose components that are compatible with the original factory specifications. After replacement, it is best to perform four-wheel alignment and dynamic balance to ensure stable driving.
The left front drive half shaft assembly may seem simple, but it is the core of power transmission and driving stability. Timely inspection and maintenance can avoid small problems causing major faults and ensure driving safety.
