The Function and Fault Analysis of the Left Installation Bracket on the Radiator of a Car
In the cooling system of a car engine, the radiator is the core component that maintains the stable working temperature of the engine. The various installation brackets that fix the radiator are the foundation for ensuring the stable operation of the radiator. Among them, the left installation bracket on the radiator, as the core load-bearing unit of the three/four-point fixation structure on the upper part of the radiator, not only performs the basic function of fixing and positioning, but also has the functions of buffering and shock absorption, and preventing the radiator from moving and damaging. Once it fails, it can easily cause abnormal damage to the radiator and affect the normal operation of the entire cooling system. Understanding the function and common faults of this small component can help car owners promptly identify potential problems and avoid the occurrence of engine overheating faults.
The Core Function of the Left Installation Bracket on the Radiator

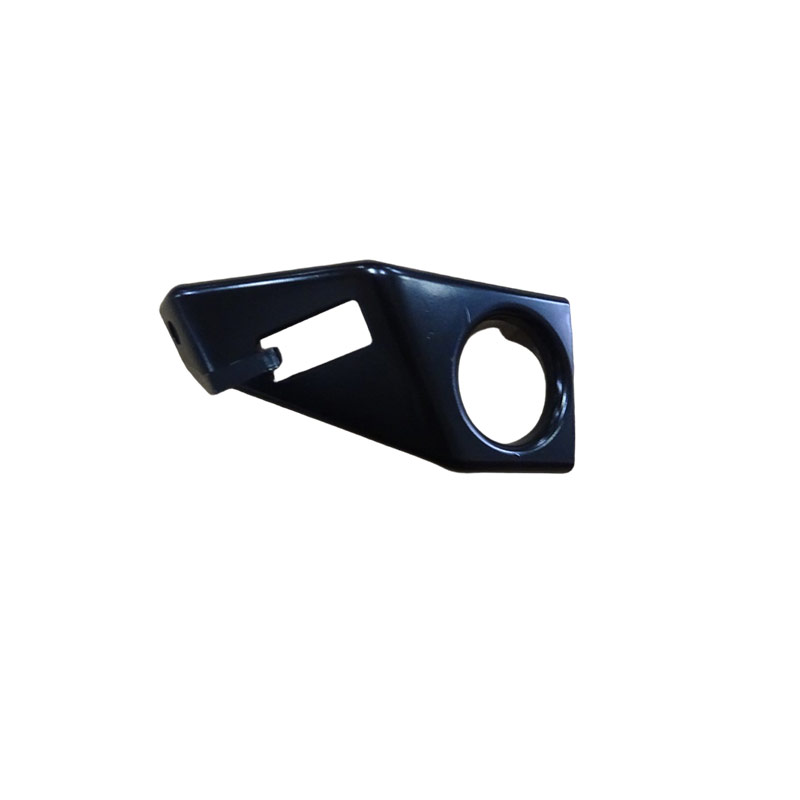

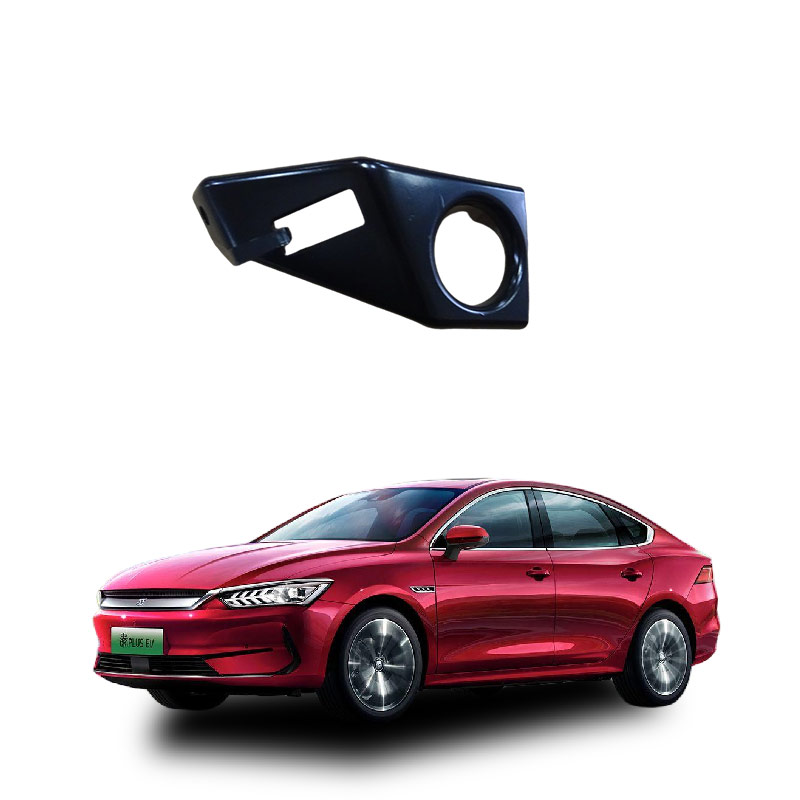

The radiator is generally fixed using a combination of upper and lower brackets. The left upper installation bracket is usually connected to the upper left corner of the radiator and the body longitudinal beam or water tank frame. It is the key component for bearing the load among the two upper fixation points. Its core function is mainly reflected in four aspects:
First, it fixes and positions the radiator, ensuring precise installation position. The engine compartment is a compact space, and the radiator needs to maintain precise installation gaps with components such as fans, condensers, and intercoolers. If the position is offset, it will not only affect the ventilation and heat dissipation efficiency, but also cause friction and interference with surrounding components. The left upper installation bracket, together with the right upper installation bracket, fixes the upper position of the radiator, and the lower part is fixed by the base, which can firmly lock the radiator in the designed installation position, ensuring the precise connection angle of the inlet and outlet water ports with the water pipes, avoiding uneven force at the connection parts and causing leakage faults, while also ensuring that the radiator is aligned with the engine grille air intake, allowing the oncoming wind to pass uniformly through the radiator core, maximizing the heat dissipation efficiency.
Second, it disperses the load, protecting the radiator structure. The core body of the radiator is mainly composed of thin aluminum sheets and fine heat dissipation tubes, and the overall structure has low strength. It cannot withstand large impact forces and alternating vibrations. Most of the weight of the entire radiator assembly is borne by the upper two installation brackets. The left upper installation bracket evenly distributes the weight of the radiator to the body water tank frame, avoiding the entire weight of the radiator being concentrated on the lower base and the connecting water pipes. At the same time, vehicle vibrations and engine vibrations during driving will generate alternating forces, and the installation brackets can conduct these forces to the vehicle structure, avoiding the radiator body from being stressed for a long time and causing deformation or welding failure, thereby extending the service life of the radiator.
Third, it buffers vibrations and reduces resonance noise. The left upper installation bracket is not a purely metal rigid structure. Most of the metal bracket bodies are integrated with rubber buffer sleeves. The rubber sleeves can absorb high-frequency vibrations caused by engine operation and road bumps, blocking the transmission of vibrations from the radiator to the vehicle body, avoiding resonance of the radiator at idle or high-speed driving, and causing abnormal noise in the engine compartment. At the same time, the buffer structure can also reduce the pulling force on the welding points of the radiator core body caused by vehicle bumps during driving, and reduce the risk of leakage of the radiator due to the opening of the gap.
Fourth, it counteracts thermal deformation stress and protects connection parts. When the engine is working, the temperature of the radiator itself will rise from normal temperature to 80-90℃. Metal materials will expand due to heat, and the upper left installation bracket's rubber buffer sleeve allows the radiator to have a slight displacement and deformation, counteracting the thermal expansion stress, avoiding cracking of the radiator core body due to thermal expansion and contraction, or aging and leakage of the connection water pipe interface, and improving the service life of the entire cooling system.
Common Faults and Hazards of the Left Installation Bracket on the Radiator
The left upper installation bracket is always in the high-temperature environment of the engine compartment, subject to vibrations, oil stains, and alternating high and low temperatures. It is prone to various faults. The common faults can be divided into three categories:
The most common is the aging, cracking, and detachment of the rubber sleeve of the bracket. Rubber bushings work in a high-temperature environment for a long time and will gradually age and harden, losing their elasticity. Over time, cracks, fractures, and even detachment may occur. Once the rubber bushing fails, the original buffering function will be lost, and the radiator and bracket will directly become rigidly connected. During driving, vibrations will be directly transmitted to the radiator, and at idle and high-speed driving, obvious buzzing resonance noise will occur in the engine compartment. Long-term vibration will pull the welding points of the radiator core, easily causing the cooling pipe to weld open and leak coolant, triggering a coolant leakage fault. After the bushing detaches, there will be a gap on the upper part of the radiator during driving. The radiator will shake and pull the inlet and outlet hoses, accelerating the aging of the hose interface, and easily causing the interface to leak.
The second is the deformation and fracture of the bracket body. The causes of deformation and fracture mainly include three types: First, collision accidents. When the vehicle's front part suffers a minor collision, it is easy to cause the bracket on the radiator to be compressed and deformed. Even if the appearance is repaired, the deformation of the bracket will still leave hidden hazards. Second, long-term overloading. Some car owners modify the radiator to be larger, increasing the load on the bracket. Long-term overloading will cause metal fatigue and trigger deformation and fracture. Third, corrosion and aging. The cooling liquid and oil stains in the engine compartment will gradually leak and adhere to the bracket, gradually corroding the metal bracket, reducing the structural strength, and easily causing fractures. After the bracket deforms, the most direct impact is that the installation position of the radiator will shift. The radiator will tilt to the right or forward, interfering and rubbing with the condenser and fan. In mild cases, it will cause the radiator core to be worn and leak water, and in severe cases, it will jam the fan, causing the fan to fail to rotate, resulting in a significant drop in cooling efficiency, and directly causing the engine to overheat. After the bracket fractures, the upper left corner of the radiator loses its fixation, and the entire radiator will tilt downward and shift. It will not only break the water pipes but also may cause the fan blades to break the radiator core, resulting in the entire radiator being scrapped. In severe cases, it may also cause the engine to overheat and crack the cylinder, resulting in huge repair losses.
The third is the loosening and rusting of the bracket fixing bolts. Long-term vibration will cause the fixing bolts to gradually loosen. After rusting, they are also prone to slip, causing the bracket to be fixed insecurely. The upper left corner of the radiator will shake. This type of fault is not easy to detect initially and will gradually cause the radiator position to shift, resulting in a decrease in cooling efficiency and a slight increase in fuel consumption. If not dealt with in time, it will gradually develop into a fracture of the bracket, triggering more serious faults.
Fault investigation and response methods
During daily maintenance, each time coolant is replaced and regular maintenance is performed, the status of the radiator bracket can be checked simultaneously. Observe whether the rubber bushing is cracked, whether the bracket body is deformed, and whether the bolts are loose. If the front part has suffered a collision, even if there is no appearance damage, the bracket should be checked for any hidden deformation. When replacing the radiator, it is recommended to replace the new installation bracket bushing to avoid the rapid failure of the old bushing due to aging. If a bracket fault is found, it should be replaced immediately, even if it is just a cracked bushing, do not continue driving. When replacing, choose an adapter with the original factory specifications to ensure the precise installation position. After replacement, check the gap between the radiator and the surrounding components to confirm there is no friction or interference.
Although the upper left installation bracket of the radiator is unremarkable, it is the foundation for ensuring the stable operation of the cooling system. Timely detection of fault hazards can avoid small problems causing engine overheating and major repairs, ensuring the stable operation of the engine.
