What is the air duct assembly on the left side of the car dashboard that provides ventilation?

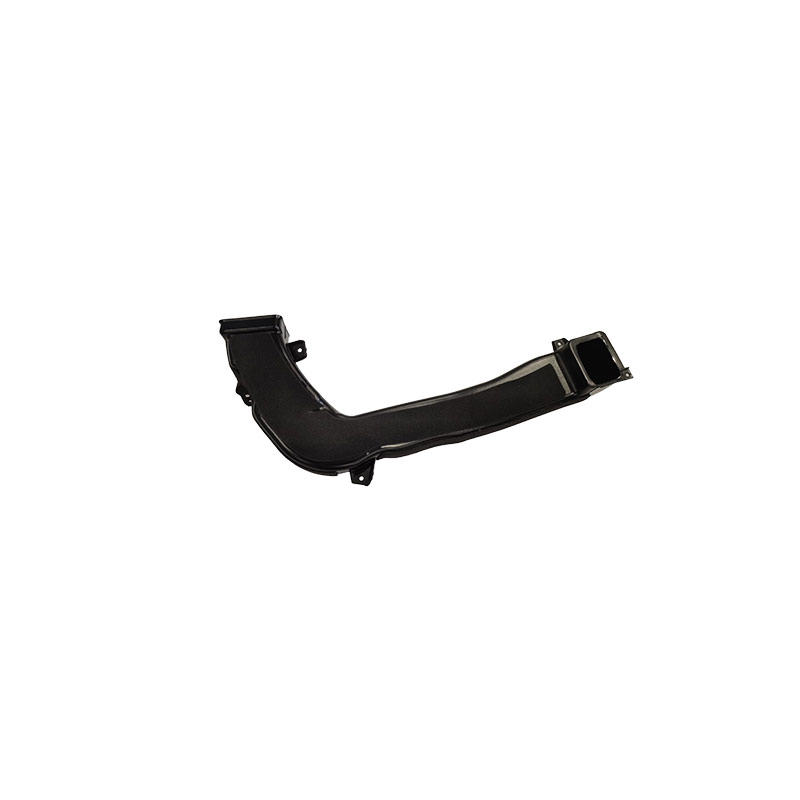

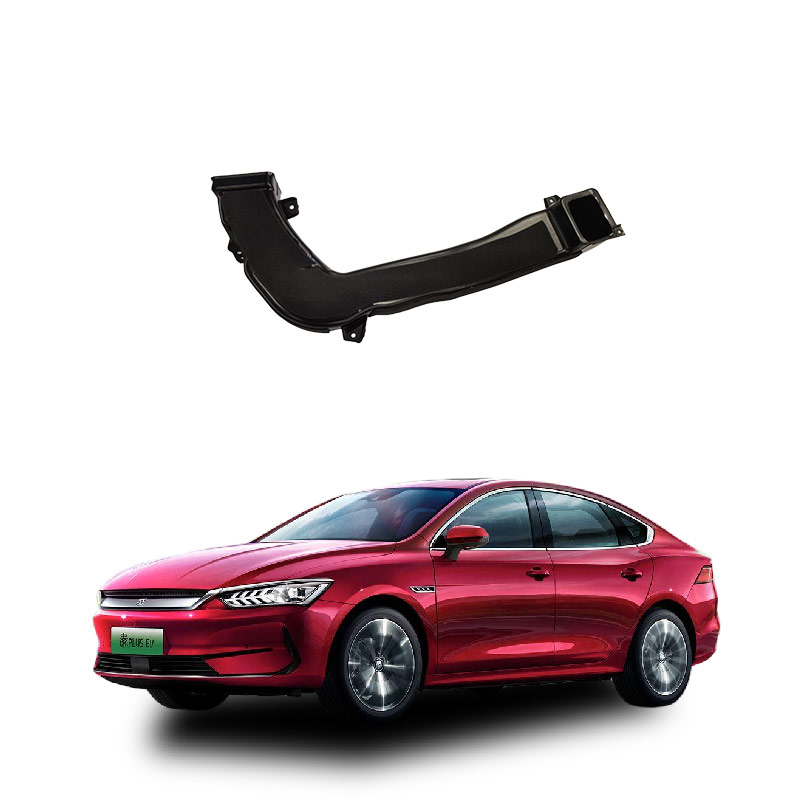

The "ventilation surface duct assembly" on the left side of the car dashboard usually refers to the left main blowing surface duct (or called the left branch blowing surface duct), which is a part of the internal air conditioning duct system in the dashboard. It is responsible for directing the air generated by the HVAC assembly (heating, ventilation, and air conditioning module) towards the left outlet, achieving air supply to the driver's face or the front windshield.
Function: Guide warm air/cold air to be blown out from the left outlet for passenger comfort air supply or in conjunction with the defogging mode to blow towards the front windshield.
Location: Hidden inside the dashboard on the left side, connecting the HVAC outlet casing with the physical left outlet on the dashboard.
Structure: Mostly made of plastic (such as ABS or polypropylene), the duct is usually formed by injection molding and may contain a wind door actuator linkage mechanism for switching between blowing surface/defrosting/foot mode; some models have detachable branch ducts, not an integrated assembly.
Common problems: If the air volume decreases, there is abnormal noise or air leakage, it may be caused by loose ducts, stuck wind doors, failure of sealing, or accumulation of dust inside.
Note: "Ventilation surface" is not a standard term. It should actually refer to the "blowing surface air duct" (i.e., the channel for air supply to the driver's face); if it refers to the left outlet grille on the dashboard surface, it is a decorative piece, while the duct is the internal air guiding structure behind it. Different vehicle models have significant layout differences (such as central air outlet or independent left and right outlets), and specific judgment requires the actual vehicle's HVAC duct design.
The core function of the "left side ventilation surface duct assembly" (i.e., the left outlet and its internal duct) is to direct the air processed by the air conditioning towards the left (driver's side) area, achieving zone temperature control, comfort adjustment, and window defogging assistance.
Air supply and temperature control: As the end of the air conditioning supply system, the blower drives, air treated by the evaporator (cooling) or heating core (heating), is transported through the left duct to the left outlet on the dashboard, allowing the driver to adjust the perceived temperature.
Defogging assistance: When the front windshield or side window defogging function is activated, this outlet often cooperates with air blowing towards the inner side of the left front windshield, helping to quickly eliminate fog and improving lateral field of vision safety.
Zone airflow management: In dual-zone/multi-zone automatic air conditioning models, the left duct assembly can independently control air volume and temperature (in conjunction with temperature sensors), meeting the individualized comfort needs of the driver and avoiding direct blowing discomfort.
Structural orientation: The inside of the duct usually contains adjustable air deflectors or servo motor-driven slats to achieve wind direction (face/foot/windshield) switching. The "surface" refers to the visible outlet grille, and the inside is a concealed plastic duct assembly.
Note: If the "assembly" referred to includes the control buttons or temperature sensors below the outlet (in some models, there is an interior temperature probe near the left outlet), it also involves feedback of environmental temperature to automatically adjust the air conditioning output; but the duct itself does not have sensing or control functions, it is only an air flow channel. If there is abnormal noise, no air, or leakage, it is usually caused by duct detachment, flip stuck, or condensate water accumulation, not a design failure.
"Fault of the left side ventilation surface duct assembly on the dashboard" usually refers to no air, small air volume, or accompanied by abnormal noise, the core reason is usually failure of the wind door actuator, duct blockage/leakage, blower problem, or abnormal control signal, and it is not that the "duct assembly" itself often breaks down, but it is the associated components that have problems.
First, check the air conditioning settings: Confirm whether the left outlet is manually closed (such as mode/fan direction switch/keys), some models (such as BMW, Audi) have independent microswitches or wind door actuators to control the left and right ducts, the "fault of the left grille microswitch" will cause the system to "think" the outlet is closed.
Listen for the blower to work: Listen for the blower to operate at full speed in the left foot area; If there is no sound, it might be a fault in the blower motor, resistor or power supply circuit (fuse, loose wiring connector).
Common failure of the damper actuator is that the dashboard has no fault indicator but only the left side does not blow air. This is usually due to the stepper motor (damper actuator) controlling the left wind direction getting stuck, having broken teeth or losing power. A diagnostic tool is needed to read the air conditioning system fault codes (such as codes of type B10XX) to confirm.
Air duct blockage or foreign objects: If something fell into the outlet, it might be stuck in the evaporator box or the flexible air duct. Light objects can be blown out forcefully, while heavy objects need to disassemble the lower part of the instrument panel to remove them (do not blindly dismantle the dashboard).
Air duct rupture or detachment: The soft air duct inside the instrument on the left side (connecting the evaporator box and the outlet) breaks due to aging, thermal expansion and contraction, or the detachment of the snap fasteners, causing weak air supply and abnormal noise. It needs to be checked from the glove compartment or the foot trim.
If there is a "clicking" noise instead of no air: It is more likely that the damper motor is idling or the plastic air duct is rubbing against the trim, not a circuit fault. If the outlet has no air but the blower is noisy, focus on checking the damper.
If the troubleshooting by yourself (switches, filter, blower sound) is ineffective, it is recommended to use an OBD diagnostic tool to read the air conditioning system fault codes. Most models require professional equipment to identify errors in the damper actuator or the IHKA control unit. Avoid disassembling the dashboard, as it is prone to damaged fasteners or wiring. If the vehicle is under warranty, contact the 4S store first (especially for deep components such as the damper/evaporator).
If only the air supply is weak and there is no fault indicator, you can first replace the air conditioning filter (this is a common cause), check if the "foot/defrost" mode is mistakenly set; if there is no air supply at all and the blower is silent, the circuit or blower motor fault is likely to be high, and an electrical inspection is required.
