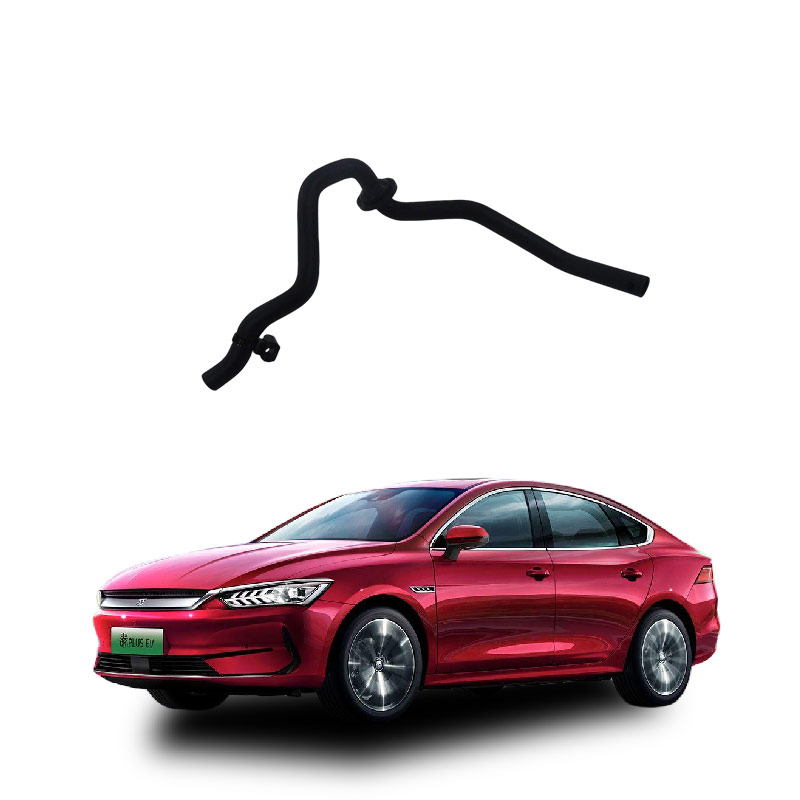

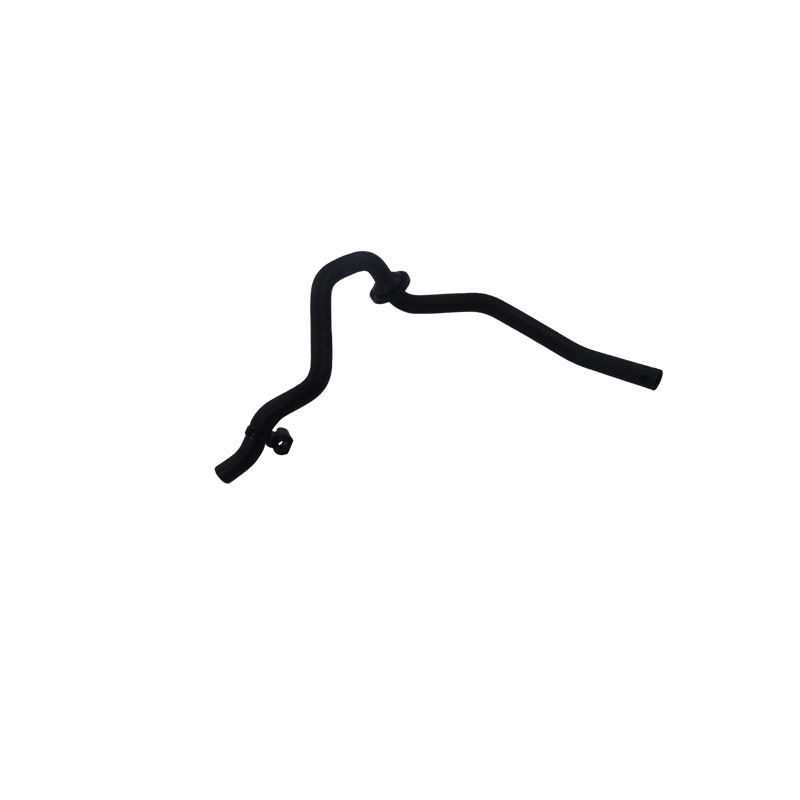

What is the front drain pipe of the car?
The "front drain pipe" of a car usually refers to the front air conditioning condensate drain pipe or the drainage system beneath the front windshield of the engine compartment, which is used to discharge the accumulated rainwater or air conditioning condensate from the front of the vehicle.
Air conditioning drain pipe: Located in the front compartment (below the evaporator), it extends from the dashboard area through a hose to the front of the chassis, discharging the condensate water generated during air conditioning; if clogged, it can cause water accumulation on the passenger seat/ driver's footpad.
Engine compartment drain hole (often mistakenly called "front drain pipe"): Usually there is one on each side of the windshield lower edge and the inner side of the wiper, guiding the rainwater, washing water, etc. flowing through the engine compartment to be discharged, preventing it from seeping into the cabin or corroding components.
Most models do not have a separate "front drain pipe" assembly; instead, multiple front drainage points (air conditioning + engine compartment + sometimes the front section of the sunroof) jointly form the front drainage system; the positions are often hidden inside the front fender, the lower edge of the windshield, or the front edge of the chassis.
If you find abnormal water accumulation in the front (such as the passenger seat footwell or the engine compartment), it is usually due to blockage in one of these areas. It is recommended to check if there are any wet marks on the front chassis (normal air conditioning drainage) or if the drain hole beneath the windshield lower edge is blocked by leaves or dirt.
The core function of the car's front drain pipe (usually referring to the air conditioning condensate drain pipe or the drain pipe beneath the front windshield of the engine compartment) is to discharge the condensate water generated by the air conditioning evaporator or the accumulated rainwater in the front windshield area from the vehicle, preventing water ingress, corrosion, or damage to electronic components inside.
Air conditioning drain pipe: Located in the front compartment (often below the driver's side firewall), it discharges the moisture condensed in the evaporator during air conditioning. If clogged, it can cause water accumulation on the footpad, carpet, mold, or unpleasant odors.
Engine compartment front drain hole (often called "front windshield drain pipe"): Located on the lower edge of the windshield and on both sides of the engine cover, it is used to discharge rainwater or washing water to prevent it from seeping into the cabin or corroding the body panels/ wiring harnesses.
If referring to "the small hole under the front face", most are engine compartment drain holes, not part of the air conditioning system; if water drips from under the vehicle when the air conditioning is on, it is normal; if there is no water or it drips inside the vehicle, it may indicate a blocked drain pipe. Regularly checking if it is unobstructed (such as having water droplets on the chassis 10 minutes after starting the air conditioning) can prevent the risk of water accumulation.
