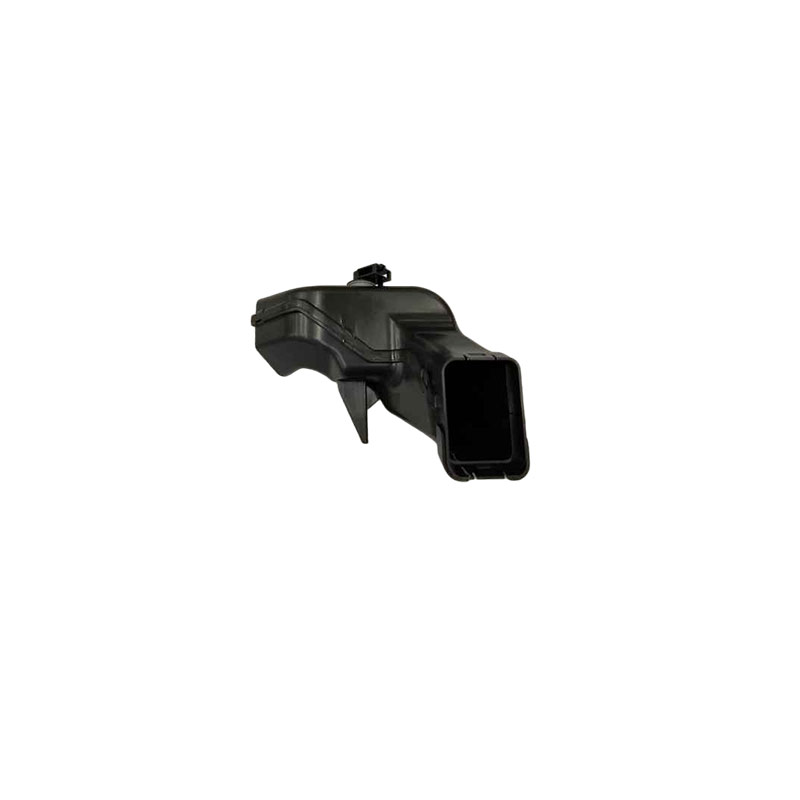

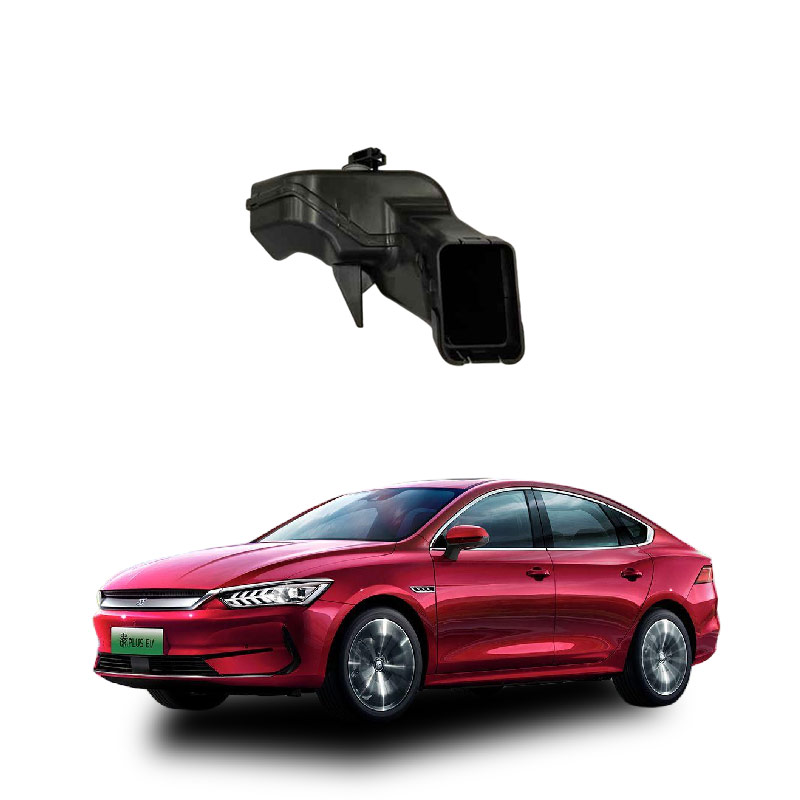

What is the foot-mounted air duct assembly for car drivers?
The foot air duct assembly for the vehicle driver refers to the assembly of ducts, conduits, air valves and connecting structures that specifically guide warm or cold air from the HVAC unit to the foot outlet of the driver's seat. It is usually located below the center console and near the driver's foot floor. It is composed of plastic ducts, mode air valves (or air deflectors), motor actuators (for some models), outlet grilles and fixing clips. Its function is to direct the airflow pushed by the blower to the foot outlet.
The function is to achieve the "foot blowing mode" (often represented by a foot icon and an arrow pointing downward), which is used for heating in winter or defogging (some systems will also activate the front windshield outlet).
It is not an independent detachable part but integrated into the vehicle's HVAC system. The design varies greatly among different models: some have only a main duct on the right side, while the left side has no or a weaker duct (such as some early models of Chery Fengyun T9), and some have adjustable air deflectors.
If there is insufficient airflow, abnormal noise, air leakage or air deviation, it may involve loose ducts, stuck air valves, failure of sealing or deformation of the air duct. Common repairs include adjustment, sealing or replacement of the "foot blowing duct assembly".
This component is not equivalent to the "outlet panel", but the internal air routing structure behind it; if referring to "upgrading the duct" (such as adding a left branch duct), it usually refers to a hardware modification of the original factory duct.
The foot air duct assembly (i.e., the foot air outlet duct) is part of the HVAC system of the vehicle, its function is to direct the heated or cooled air to the foot area of the driver to achieve rapid body comfort and uniform cabin temperature field and assist in defogging.
During winter heating: Warm air is blown from the floor outlet to the feet, using the principle of natural air ascent to improve the overall heating efficiency (the feet warm first can shorten the vehicle preheating time by about 40%).
During summer cooling: Cold air is sent from the foot outlet, combined with the high-position outlet to form convection, avoiding the discomfort of "cold on top and hot at the bottom", and improving the uniformity of cooling (the measured cooling rate at the foot can reach 0.8℃/minute).
Anti-fog assistance: Most models will slightly mix the front windshield air when in the "foot blowing" or "foot + front windshield" mode to reduce the accumulation of moisture in the foot area and indirectly reduce the risk of window fogging.
Air duct design: The ducts are usually composed of plastic ducts and adjustable air valves, connecting the bottom outlet of the air conditioning box to the foot outlet of the driver's floor. Some have grille adjustment for wind direction.
Note: If there is abnormal hot air when the air conditioning/heat is not turned on (such as outside circulation bringing in engine residual heat), it is abnormal air ducting, which may be related to poor sealing of the heating valve or lack of insulation; if there is no air, it may be due to blocked ducts, faulty mode air valves or dirty filter.
Faults of the foot air duct assembly for the driver usually manifest as "no air in the foot blowing mode" or "abnormal air leakage/outlet", common causes include damaged air direction flipper, duct blockage, faulty mode air valve, or aging filter or duct sealing components. Sealing failure or hose detachment: The flexible hose at the foot outlet becomes loose, the insulation of the heating water pipe at the firewall is poor (mistakenly judged as "hot air leakage"), or the outlet clip breaks, resulting in air leakage or abnormal noise.
If there is no wind but the mode is selectable, prioritize checking the filter, conducting an electrical test on the wind door motor, and listening for the action sound of the flap; if it keeps blowing at the foot but cannot be switched, it is mostly due to faults in the wind door motor or control switch; if there is abnormal noise or air leakage, focus on checking the hose seal and the clip. Before conducting your own troubleshooting, please ensure that the air conditioning mode has been correctly set to "blow feet" or "face + feet"; it is not just a temperature issue.
If the location cannot be determined, it is recommended to use an OBD diagnostic tool to read the fault codes of the air conditioning system, or go to a repair shop to check the air duct actuator - in most cases, it is not a major repair, but it requires disassembly of the passenger side/ glove compartment. It is not recommended to forcefully pry the duct.
