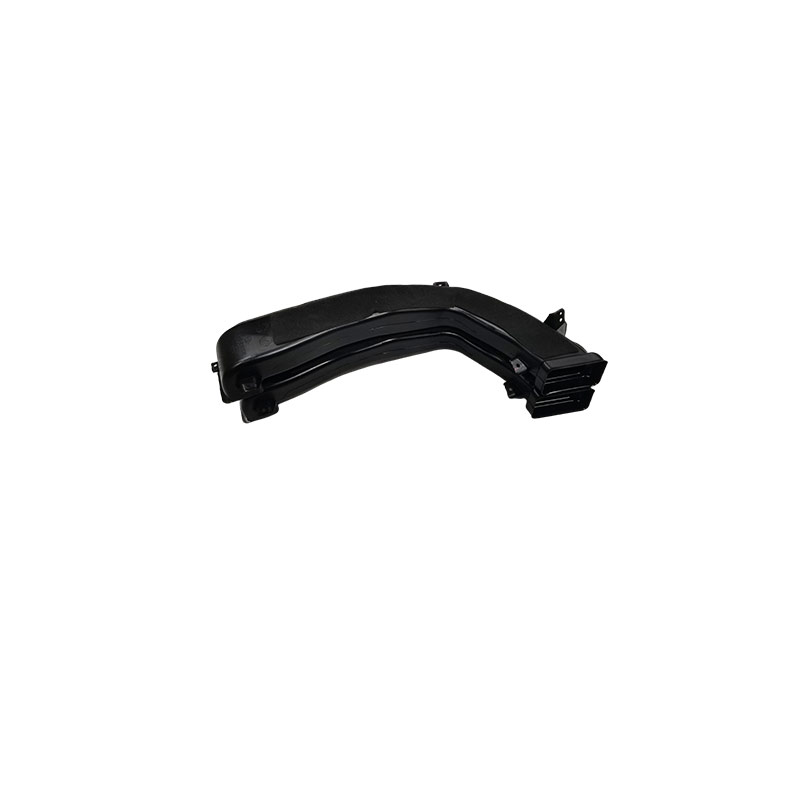

What should I do if there is a strange noise coming from the air duct component on the right side of the car dashboard?
There is an abnormal noise from the air duct component on the right side of the car dashboard. First, we can determine the cause of the noise and then try to solve it accordingly. The specific plan is as follows:
Common causes of noise (targeted troubleshooting)
The noise at this position, apart from common issues such as loose dashboard or foreign objects, is more likely related to the air duct or outlet itself:
Loose connection of the air duct: Long-term vibration of the vehicle can cause the connection of the air duct to loosen, resulting in resonance noise during driving.
Fault of the fan blades: If the fan blades of the outlet are loose or deformed, they will produce noise when rotating; if it is a motor-driven outlet, a motor failure will also cause noise.
Dirty air filter: After the filter accumulates dust and dirt, it leads to poor air circulation, easily causing abnormal sounds.
Friction or displacement of plastic components: The plastic parts of the air duct or outlet deform due to thermal expansion and contraction, or are displaced during installation, and rub against adjacent components, generating noise.
Foreign objects entering: Dust and small particles enter the air duct, and when shaken, they collide with components and emit sounds.
Corresponding solutions (from low to high difficulty)
Cleaning and investigation (low difficulty, can be operated by yourself)
If it is caused by foreign objects or dirty air filter, first use a vacuum cleaner to clean the outlet and the surrounding area of the air duct, remove the filter and clean it or directly replace the dirty filter. The operation is simple and does not require disassembly. When using compressed air to clean, pay attention to controlling the pressure to avoid damaging the components.
Buffering and noise reduction (medium difficulty, can be tried by yourself)
If it is determined that it is caused by plastic component friction, excessive gaps, or displacement: After finding the friction point, pad with rubber sheets or car inner tubes to buffer, and use rubber pads to fill in the excessive gaps; if the outlet joint is loose, you can pry open the outlet panel and use double-sided foam adhesive to reattach and fix it. Note: Disassembly requires the use of rubber pry plates to avoid damaging the interior.
Fitting and repair (high difficulty, recommended professional operation)
If the connection of the air duct is loose, or the fan blades or motor are faulty, it is necessary to disassemble the corresponding position of the dashboard and tighten the loose air duct; if the blades are deformed or the motor is damaged, the corresponding components need to be replaced directly. Disassembling the dashboard requires professional skills and tools. Those who are not familiar with the operation are recommended to directly go to the repair shop for handling to avoid damaging the surrounding electronic components.
The core function of the air duct component on the right side of the car dashboard is to remove fog near the right exterior rearview mirror, and at the same time, it cooperates with the air conditioning to achieve temperature regulation in the right area. The specific functions are as follows:
Safety fog removal: The air duct corresponds to the right front door glass and the exterior rearview mirror position. When the fog removal function is activated in rainy and foggy weather, the air outlet can quickly blow away the fog on the glass, ensuring the driver has a clear view of the right exterior rearview mirror, improving driving safety.
Zone temperature control and air distribution: As a component of the interior air conditioning system, it can be independently adjusted according to the needs of the passenger in the front seat to regulate the wind direction and volume, meeting individual body sensation needs; in mid-to-high-end models that support dual-zone air conditioning, the temperature can be independently set to achieve differentiated temperature control for the main and front seats.
Accelerate interior temperature balance: During the initial start of the air conditioning, directional air distribution can accelerate the air circulation inside the vehicle, reducing the body temperature in the rear seat area in summer, and reducing the probability of fogging when the air conditioning is on in winter.
The daily maintenance of the air duct component on the right side of the car dashboard mainly focuses on three directions: cleaning, checking and tightening, and reasonable use. By doing these points well, the service life can be effectively extended and abnormal noise faults can be reduced. The specific precautions are as follows:
Regular cleaning
Frequency requirements: It is recommended to clean the surface of the outlet once every 3 months and deep clean the air duct once a year to avoid dust and debris accumulation blocking the air duct and increasing the resistance of air supply, causing abnormal noise.
Operation points:
For daily cleaning, use a soft-bristled brush and vacuum cleaner to gently sweep away the dust on the grille of the outlet, and use the vacuum cleaner to simultaneously remove impurities to avoid dust falling into the deep part of the air duct; The stubborn dirt in the crevices can be cleaned by spraying a special cleaner onto a soft brush and gently scrubbing. Do not spray a large amount of cleaner directly into the crevices to avoid liquid seeping into the surrounding electronic components and causing a short circuit. Before operating, you can cover the electronic area with newspapers for protection.
For deep cleaning of the air duct, you can choose the air duct cleaning service at a regular store to thoroughly remove the accumulated dust and mold in the duct. This not only ensures the health of the air supply but also reduces blockage and abnormal sounds.
Regular inspection and tightening
Do a routine inspection every six months: Open the fan to test the airflow, observe if the airflow from the right outlet has significantly decreased, and listen for any abnormal vibrations or noises. If you have already found loose or abnormal noises, you can disassemble the right outlet panel to check if the duct interface and clips are loose.
If the interface is found to be loose, re-tighten it directly. Replace the aging or broken clips in time to avoid long-term loosening resonance that causes wear on the duct. When disassembling the panel, it is recommended to use a special plastic pry tool instead of a metal tool to avoid scratching the dashboard interior.
Lubrication precautions
Lubrication is only necessary when the air duct flap switch is stuck or there is abnormal noise. Do not blindly lubricate the air duct interface; when lubricating the flap mechanism, use automotive-specific silicone-based lubricant instead of ordinary grease lubricant. Using ordinary grease lubricant will absorb dust, exacerbate sticking, and also produce an odor that pollutes the airflow.
Lubrication only requires applying a small amount of lubricant at the flap rotation shaft position. Do not overapply to prevent oil from dripping into the air duct.
Usage precautions
Do not place water cups, perfume bottles, etc. near the right outlet. This will prevent hard objects from falling and damaging the duct interface or grille. Do not spill perfume, beverages, etc. into the outlet. Liquid entering the duct will cause the internal plastic to mold and deform, and may also rust the rotation shaft, causing abnormal noise faults.
Do not forcefully move the grille to adjust the airflow. Excessive force will cause the grille clips to break or loosen, which in turn will cause abnormal noise during driving.
