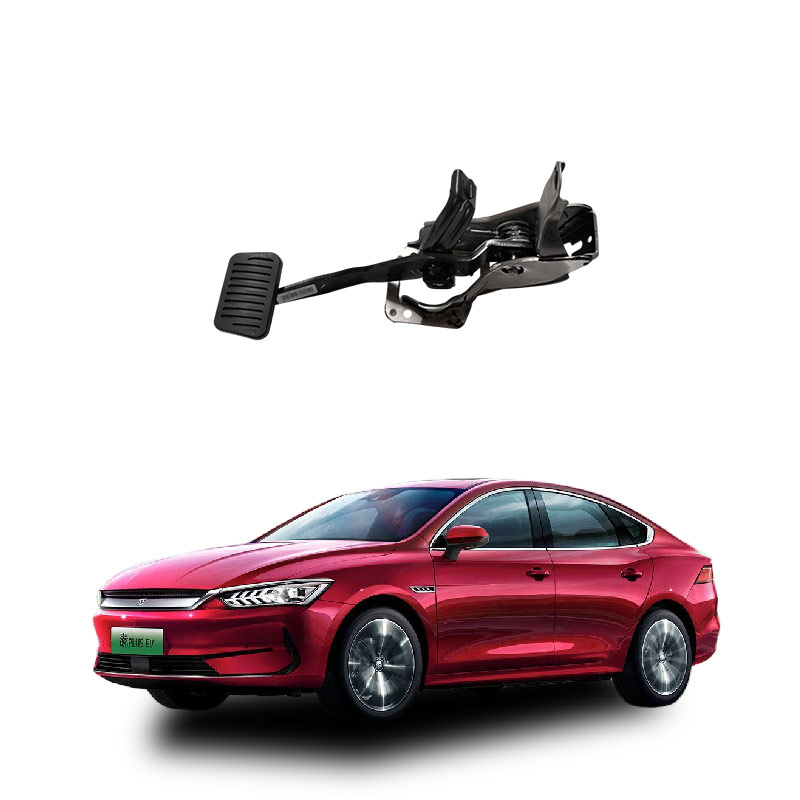

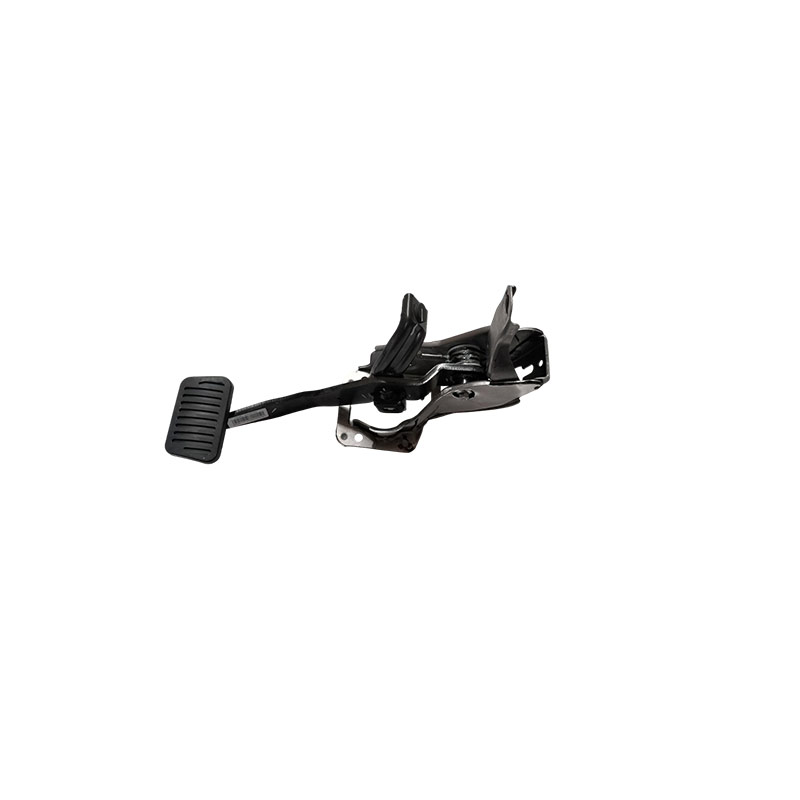

The function of the car brake pedal assembly
The car brake pedal (also known as the brake foot pedal or foot brake) is the core control component of the parking brake system. Its function is to convert the pressure applied by the driver's right foot into braking force, enabling the vehicle to slow down or stop.
Triggering the braking system: When the pedal is depressed, the push rod drives the brake master cylinder (the main pump), transmitting hydraulic pressure (or in some newer models, electrical signals) to the four-wheel brake actuators (such as calipers and brake discs/brake drums), using friction to convert kinetic energy into heat energy, causing the vehicle to slow down or stop.
Force amplification support: Usually in conjunction with the vacuum booster (utilizing the negative pressure of engine intake), the force applied by the foot (approximately 10–30 kg) is amplified by 3–5 times, reducing the operating intensity and enhancing the response sensitivity.
Safety-critical control: As one of the "five major control levers of vehicle driving", it is the only foot-operated device that the driver directly controls and is used for active braking during driving (distinct from hand brakes/electronic parking brakes), being crucial for avoiding collisions, controlling the distance between vehicles, starting/ stopping on slopes, etc.
System integration interface: The pedal component (including the pedal arm, return spring, travel sensor, and assist mechanism) not only transmits mechanical force but also provides braking intention signals to electronic systems such as ABS, ESC, and automatic emergency braking (AEB), supporting the intervention of intelligent safety functions.
The brake pedal is located in the middle in manual transmission vehicles and on the left side in automatic transmission vehicles (controlled by the right foot uniformly), and the design is usually higher and wider than the accelerator pedal to reduce the risk of accidental踩踏. The free travel (approximately 0–30 mm) and effective braking travel need to be maintained normally； otherwise， it may indicate brake fluid leakage， excessive wear of the friction pads， or assist failure， affecting braking performance or even causing failure. Modern regulations (such as the national standards to be implemented in 2026) clearly stipulate that vehicles must be able to come to a complete stop by pressing the brake pedal in the default state, and cannot achieve full stop simply by releasing the accelerator. This highlights the indispensable active control function of the vehicle.
The malfunction of the car's brake pedal assembly is a high-risk safety issue. The handling principle is: stop immediately, avoid continuing to drive, and prioritize contacting professional maintenance. Do not attempt to disassemble or repair the hydraulic or assist components by yourself.
If the brake pedal becomes abnormally hard (especially remaining hard after starting): it is usually due to the failure of the vacuum assist device (such as a leak in the pipeline, damage to the one-way valve, or failure of the assist pump). The hydraulic braking is still effective. Pressing hard can stop the vehicle but the distance will be longer. In an emergency, try restarting the engine (for some models, the assist power will be exhausted after the engine is turned off). If ineffective, turn on the hazard lights, downshift to use the engine braking, slowly pull over and tow for repair.
If the brake pedal becomes soft, sinks, or there is no resistance when fully depressed: it may be due to brake fluid leakage, system air intake, or failure of the master cylinder or slave cylinder. Do not continue driving. Try pressing hard several times (to temporarily establish pressure) and immediately stop and call for help. Do not blindly add brake fluid (it is necessary to check for leaks).
If the brake pedal has excessive travel, slow return, or is stuck: check if the pedal mechanism is blocked by foreign objects, if the return spring is broken, or if the brake caliper or slave cylinder piston is stuck. Do not forcibly move or lubricate the pedal linkage (this may mask more serious hydraulic faults). Instead, tow the vehicle to the repair shop to check the brake master cylinder, wheel cylinder, and friction plate condition.
If accompanied by the brake fault indicator light, ABS alarm, or abnormal electronic braking system (such as electronic parking/automatic braking intervention): it may involve faults in the pedal position sensor, wiring, or control unit. Use a diagnostic tool to read the fault codes (such as P0571, C1234, etc.). Ordinary car owners cannot repair electronic components themselves. Contact a 4S store or specialized repair shop.
The initial self-check is limited to safety items: check the brake fluid reservoir level (between MIN/MAX), check for any leakage in the fluid lines, and look for obvious damage or foreign objects around the pedal. Do not release air, disassemble the vacuum assist device, or modify the brake lines (professional equipment and venting procedures are required).
Daily prevention: check the brake fluid moisture content every 10,000 kilometers (wetness will lower the boiling point), check the thickness of the brake pads/plates every 2-30,000 kilometers (if worn down to 3mm or less, replace them), and avoid overheating due to prolonged braking.
If the malfunction occurs during driving: remain calm, shift gears quickly to slow down (manual transmission downshift/automatic transmission in L/S gear), use intermittent braking or pull the electronic handbrake (press the button for a long time, not forcefully pull the mechanical handbrake) to assist braking, and choose an open area to stop. Any situation involving a decrease in braking performance (inability to depress the pedal, abnormal noise, shaking, or deviation) should be regarded as an emergency fault. It should be repaired by a certified maintenance personnel using specialized tools (such as a brake pressure gauge, diagnostic tool, and venting equipment) before being allowed to drive.
