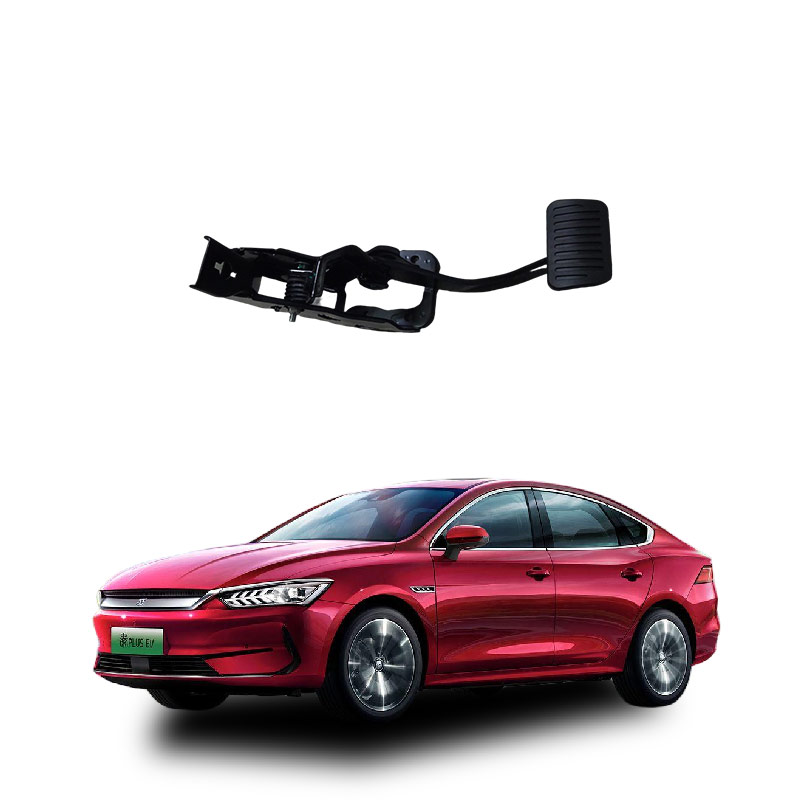

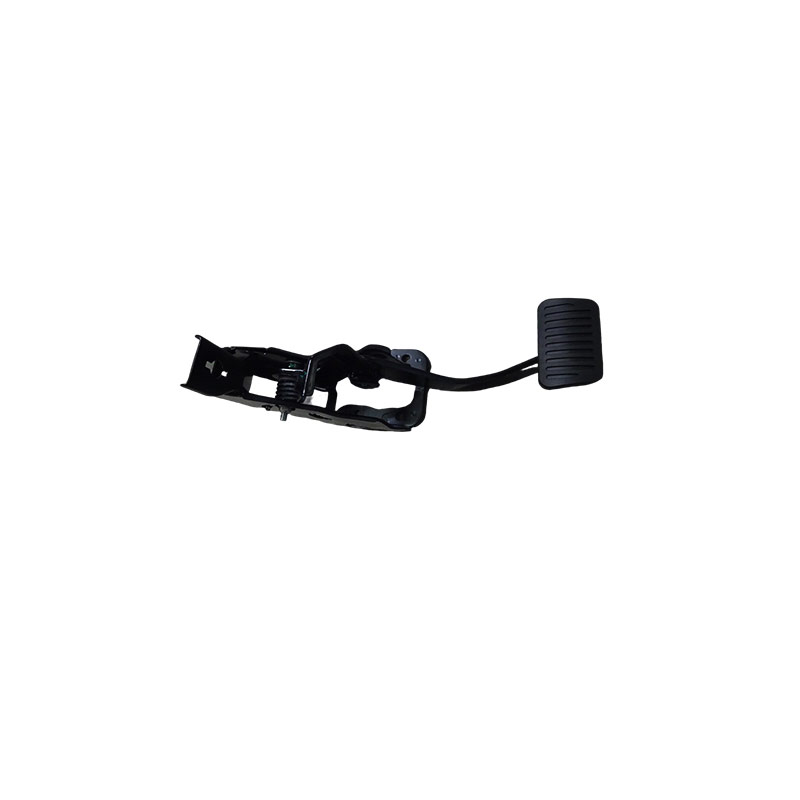

The function of the car brake pedal assembly
The core function of the automotive brake pedal assembly is to convert the mechanical force applied by the driver into hydraulic (or pneumatic) signals, thereby controlling the vehicle's braking system and achieving deceleration or stopping.
As the direct operating component of the braking system, the brake pedal assembly is located in the cockpit (typically in the right foot area) and triggers the entire braking process by being stepped on. It is one of the "five major control components" of a car and is responsible for daily deceleration, temporary parking, and emergency braking.
Force transmission and amplification hub: The pedal assembly (including the pedal arm, return spring, push rod, etc.) connects the brake master cylinder and/or vacuum booster, amplifying the force applied by the foot through the lever principle and pushing the master cylinder piston, generating hydraulic pressure and transmitting it through the brake lines to each wheel brake (disc or drum type), ultimately achieving braking through friction.
Ensuring braking responsiveness and safety: Its structural design (such as free travel, stiffness, human-machine layout) directly affects the feel of the brake pedal, the linearity of response, and the ability to prevent misoperation; when equipped with vacuum assistance, it can significantly reduce the pedal force and improve the handling comfort and emergency braking efficiency.
Integrated auxiliary function interface: Some assemblies integrate brake light switches or travel sensors, used to illuminate the brake lights to alert the following vehicle or provide pedal status signals to electronic systems such as ESP/ABS.
The brake pedal assembly itself does not generate braking force, but it is the key human-machine interaction and energy conversion starting point that connects the driver's intention with the braking execution mechanism (brake pads/plates, wheel cylinders, etc.). Its reliability directly determines whether the braking system can respond effectively and promptly, and is the core control component for vehicle safety.
Common faults of the automotive brake pedal assembly usually manifest as hard, soft, abnormal travel, poor return, or brake failure. The core reasons involve issues with the assist system, hydraulic sealing, or mechanical connections, and require immediate disuse and professional maintenance to ensure safety.
Hard pedal (unable to step on): Often caused by failure of the vacuum assist pump (in fuel vehicles), failure of the electric assist braking system (in electric vehicles/many new energy vehicles), or leakage of the vacuum lines or blockage of the one-way valve, resulting in loss of assistance; if the pedal becomes hard only after the engine is turned off, it is a normal phenomenon (assistance depleted), and it should recover after starting the engine. If the pedal suddenly becomes hard during driving, the hydraulic system is usually still effective, and forced stepping can slow down, but the braking distance will significantly increase; immediately pull over and contact for rescue.
Soft/low pedal/stepping to the floor: Commonly caused by air mixed in the braking system (need to evacuate), leakage of brake fluid (check the master cylinder, slave cylinder, and oil pipe joints), or aging and damage of the main cylinder gasket. If the pedal gradually becomes hard after stepping, it may be due to excessive free travel or abnormal gap; if it remains soft, there is a high risk of hydraulic sealing failure, and it is prohibited to continue driving.
Excessive pedal travel, slow braking: May be caused by excessive wear of the brake pads/plates, blockage of the oil circuit, insufficient pressure in the master cylinder, excessive free travel or misalignment of the brake gap. One or more steps of braking may be effective; this is usually a adjustable issue (such as adjusting the free travel of the pedal or the brake gap); if it is always ineffective, check the wear of the main cylinder and wheel cylinder or the oil contamination/solidification of the brake pads.
Poor return, sticking or abnormal noise of the pedal: May be caused by broken return spring, rusted or oil-starved pedal shaft pins, internal jamming of the brake master cylinder, or failure of the electronic assist mechanism (such as sensor or motor abnormalities). A "clicking" sound does not necessarily indicate a total assembly failure (ABS intervention or brake pad alarm disc is normal), but continuous abnormal noise or shaking requires inspection.
Brake pedal malfunction, abnormality of the pedal: May be caused by broken return spring, rusted or oil-starved pedal shaft pins, internal jamming of the brake master cylinder, or failure of the electronic assist mechanism (such as sensor or motor abnormalities). A "clicking" sound may not be a total assembly failure (ABS intervention or brake pad alarm disc is normal), but continuous abnormal noise or shaking requires inspection.
Brake pedal malfunction, abnormality of the pedal: May be caused by broken return spring, rusted or oil-starved pedal shaft pins, internal jamming of the brake master cylinder, or failure of the electronic assist mechanism (such as sensor or motor abnormalities). A "clicking" sound may not be a total assembly failure (ABS intervention or brake pad alarm disc is normal), but continuous abnormal noise or shaking requires inspection.
Brake warning light on + abnormality of the pedal: Indicates that the brake fluid level is too low, an error from the ABS/ESP module, conflict of the electronic parking system, or a sensor failure of the assembly (such as inaccurate pedal position sensor), and should read the fault code (such as C1xxx series) for precise location. If a serious malfunction occurs during driving (such as complete loss of braking power), remain calm, turn on the hazard lights, shift gears to utilize the engine braking, and intermittently gently pull the electronic/hand brake to assist in deceleration. Do not shut off the engine or sharply turn the steering wheel. The brake pedal assembly is an essential safety component. Any abnormality must not be driven around recklessly. Regularly, brake fluid should be replaced every 2 years or 40,000 kilometers, and the thickness of the friction pads (less than 2–3mm requires replacement) should be checked regularly. Avoid sudden braking after getting wet to prevent the brake discs from rusting.
If the fault code indicates "P0571" (brake switch), "C1101" (power assist motor), etc., or if you find brake fluid leakage or the pedal is loose and the connecting parts are detached, it is necessary to have a certified mechanic use specialized equipment (such as a brake pressure tester, decoder) for diagnosis. Do not attempt to disassemble and repair the hydraulic components yourself. The faults of the electric power-assisted braking system (such as Bosch iBooster) often require factory-level diagnosis, and ordinary repair shops are unable to handle them.
