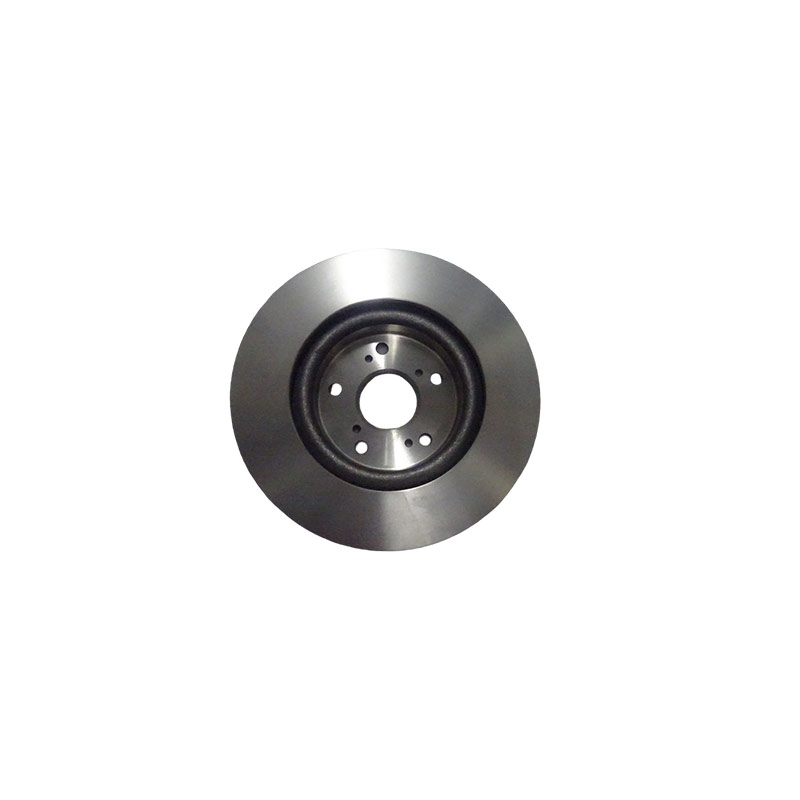

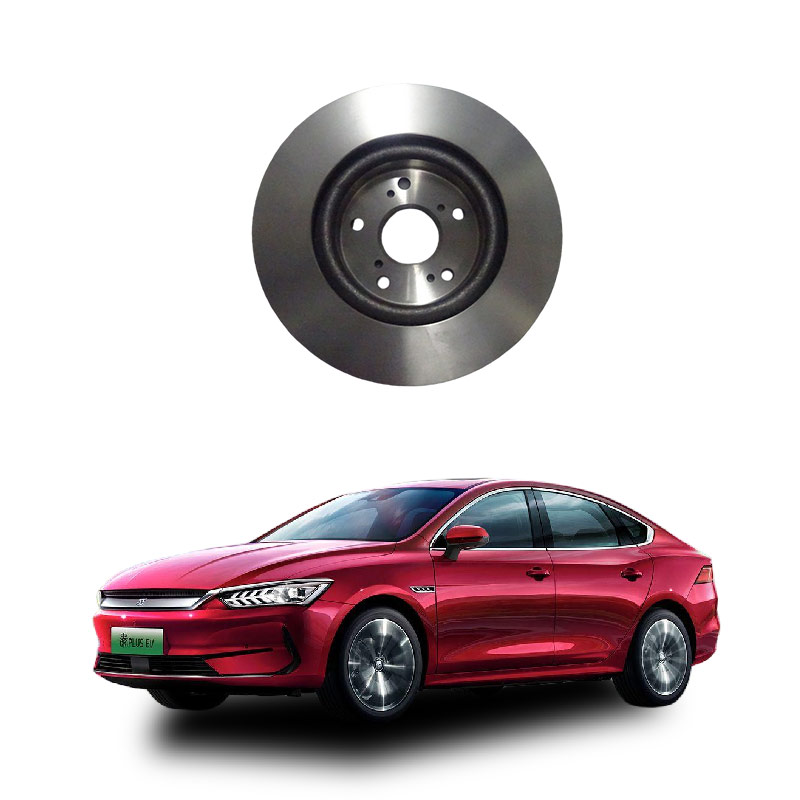

The function of the front brake disc of the car
The front brake disc is a core component of the vehicle's braking system. Its main functions are as follows:
Carrying out friction to generate braking force: The brake disc rotates synchronously with the wheels. During braking, the caliper clamps the brake pads against the brake disc, converting the vehicle's kinetic energy into heat through friction, achieving deceleration or stopping .
Efficient heat dissipation: The front wheels bear approximately 70% of the braking force, especially during emergency braking or high-speed driving, generating a large amount of heat. The ventilated brake disc (commonly found on the front wheels) accelerates air convection through internal air ducts, significantly improving the heat dissipation efficiency and preventing heat fade .
Ensuring braking stability and safety: The front brake disc, in conjunction with electronic systems such as ABS and ESP, provides a responsive, uniform braking force, and good water resistance performance, enhancing emergency avoidance and handling safety on slippery roads .
Since the engine is mostly positioned at the front, the center of gravity shifts forward during braking, and the front wheels bear a greater load. Therefore, the vast majority of passenger cars use ventilated brake discs on the front wheels, while the rear wheels may use solid discs to reduce costs .
The "front brake disc failure" in a vehicle is usually not triggered by the brake disc itself independently, but is caused by related issues in the braking system (such as brake pad wear, insufficient brake fluid, sensor abnormalities, or abnormal detection of braking force by the braking control unit) that cause the dashboard brake fault warning light to illuminate. The front wheels are more likely to show symptoms.
Common manifestations include: The brake fault light illuminates, the steering wheel or vehicle shakes (possibly due to brake disc deformation or uneven thickness), sharp metal scraping sound (brake pads reaching the limit or severe scratches on the brake disc), the brake pedal becomes soft/has a longer travel (possibly due to brake fluid leakage or excessive wear of the brake pads and elongation of the oil cylinder), and the braking distance becomes significantly longer.
The fundamental cause is rarely due to the brake disc itself being damaged independently: The brake disc rarely "actively" triggers the fault light; more commonly, the brake pad wear alarm wire contacts the disc to trigger the signal, the wheel speed sensor is falsely reported as an ABS/ESC fault due to oil contamination or damage, the brake fluid level is too low (due to leakage or excessive wear of the brake pads and elongation of the oil cylinder), or the handbrake is not fully released (some models share the same warning light).
Indirect damage to the brake disc or the need for replacement signs: Thickness below the manufacturer's minimum limit (usually ≤ 2–3 mm, measured with a professional micrometer), obvious grooves/cracks, blue discoloration or thermal deformation caused by high temperature (with brake shaking), severe rust (initial abnormal noise after long parking but often self-melts away).
Emergency handling: Immediately park safely, check if the handbrake is released, and check if the brake fluid reservoir level is between MIN–MAX (if too low and there is oil stain, there may be leakage); Do not continue driving at high speed or with heavy load. If there is only a minor noise but the brakes are normal, drive slowly to the repair point; If there is shaking, abnormal pedal, or the warning light is constantly on, it should be towed for handling.
Diagnostic key: Use an OBD-II diagnostic tool to read the brake system fault codes (such as C1200, C1145, etc., related to wheel speed/brake); It is difficult to determine the cause based solely on symptoms; The statement "front brake disc failure" is mostly a colloquial description and is actually a comprehensive alarm of the braking system.
Maintenance advice: If the brake disc is severely worn, deformed, or cracked, it must be replaced in pairs (same axis left and right); At the same time, check the condition of the brake caliper, brake pads, and hub bearings. After replacement, usually a road test and brake system venting are required. Do not immediately assume the brake disc is bad just because the warning light is on – most cases are due to brake pads or sensor problems.
If the dashboard shows the "BRAKE" light (usually a circle with an exclamation mark or the word "BRAKE"), prioritize checking the handbrake and brake fluid; If it is the ABS/ESC light (often with "ABS" or a wheel skid icon), it may involve the wheel speed sensor or the electronic control unit. The braking system is crucial for safety. Any abnormalities should be diagnosed by professional technicians using equipment to avoid the risk of further damage from improper disassembly and assembly. Regular maintenance (changing brake fluid every 2-3 years and inspecting brake pads/plates every 3-50,000 kilometers) can effectively prevent sudden failures.
