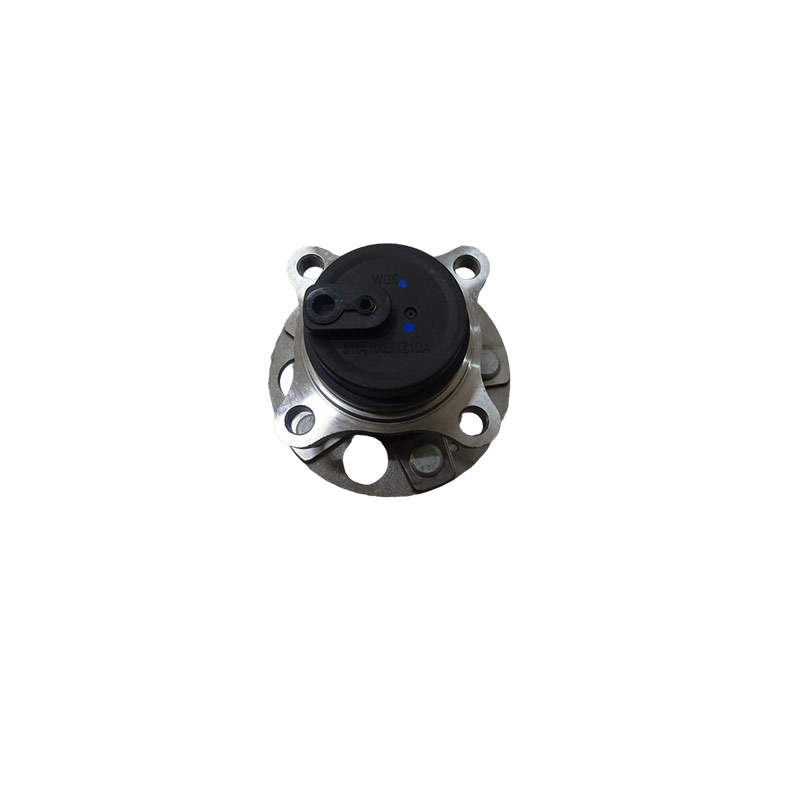

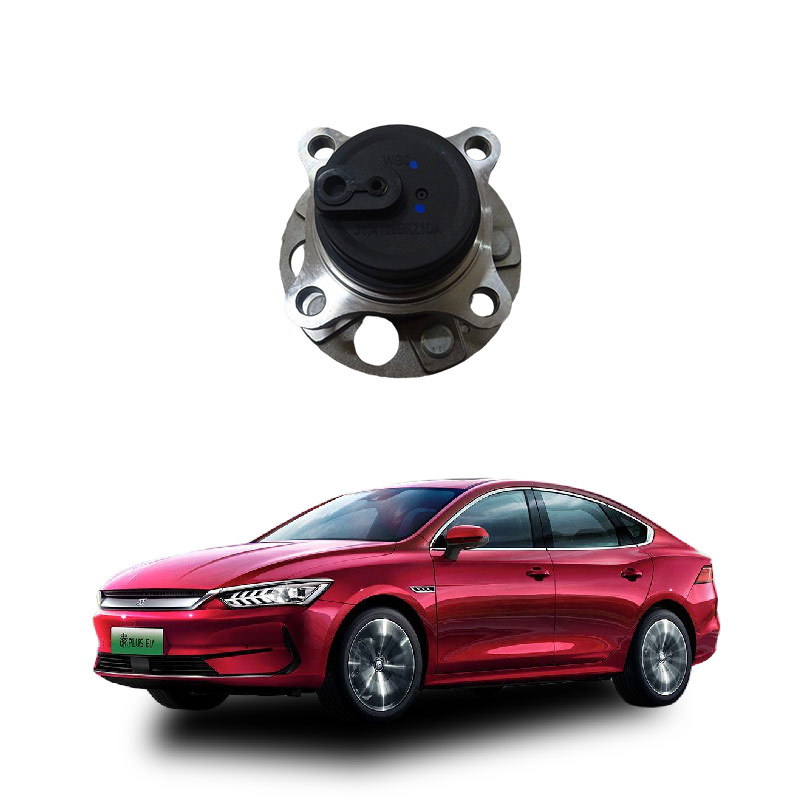

What is the rear wheel hub assembly of a car?
The rear wheel hub assembly refers to the core rotating component installed on the vehicle's rear axle, used to support the tires and connect the braking system with the drive half shaft. It is usually composed of the wheel rim, spokes (or hub center disc), hub bearings, seals, and mounting flanges, and is responsible for load transmission, power output (such as in rear-wheel drive vehicles), and braking response functions.
Wheel Rim: The outer ring part of the hub, directly cooperating with the tire rim, is responsible for supporting the tire and bearing the impact from the road surface.
Spokes (or Hub Center Disk): The radial or disc-shaped structure connecting the wheel rim and the center hole, responsible for transmitting torque from the half shaft (drive wheel) or the brake drum/disc (braking system) to the wheel rim; in integrated hub units, this part is often integrally formed with the bearing seat.
Hub Bearings: Installed in the center hole, enabling the hub to rotate smoothly around the axle, while bearing radial and axial loads. Modern vehicles mostly use pre-tightened sealed hub assemblies (Hub Assembly).
Sealing Devices: Preventing dust and moisture from entering the bearing area while retaining lubricating grease, ensuring long-term operational reliability.
Installation and Brake Interface: Including the flange for fixing the brake disc/band, the part connecting to the axle half shaft spline or flange, and the hub bolt holes (for fixing the entire wheel assembly).
The rear wheel hub assembly in front-wheel drive vehicles mainly performs the functions of support and braking; in rear-wheel drive or four-wheel drive vehicles, it also needs to transmit the torque output by the engine/diffuser, with higher structural strength and thermal load requirements. Common materials are steel (economical, impact-resistant) or aluminum (lightweight, good heat dissipation), and their specifications (such as diameter, PCD, offset) must match the vehicle model.
It should be noted: "Hub" is often mistakenly called "wheel rim" or "steel rim", but strictly speaking, the "wheel rim" is the ring-shaped part for installing the tire, while "hub" more accurately refers to the entire set of components containing bearings and connecting to the axle; in the context of vehicle manufacturers, "rear wheel hub assembly" often refers to the pre-assembled hub unit including bearings, seals, and brake installation surfaces.
The rear wheel hub assembly is the core component connecting the axle, supporting the tires, and transmitting driving and braking forces, with main functions including load bearing, power transmission, braking support, and ensuring driving stability.
Supporting the vehicle's weight and transmitting loads to the road surface: The hub assembly installs the tires through the wheel rim, transmitting the rear vehicle load (including passengers, cargo, or the reaction force of the drive system) through the tires to the ground, being a key load-bearing structure in the vehicle weight transmission path.
Transmitting driving and braking torque: In rear-wheel drive or four-wheel drive vehicles, the hub is rigidly connected to the rear half shaft through spline or flange, converting the torque output by the engine/motor into wheel driving force; at the same time, it receives the braking force from the brake disc/band, achieving deceleration or parking.
Integrating hub bearings to ensure precise wheel rotation: The hub assembly contains hub bearings (often integrated units), ensuring low friction and high precision rotation of the wheel while bearing radial and axial loads, directly affecting steering stability and driving smoothness.
Matching braking and suspension systems: The hub provides an installation reference for rear brake discs (or drums), ABS wheel speed sensors, and forms a force transmission loop with the suspension lower arm, steering knuckle (if applicable), affecting braking efficiency, tire positioning parameters, and anti-roll ability.
Buffering some road impact: Although mainly buffering the force borne by the tires, the wheel hub structure (especially the alloy material) absorbs some high-frequency vibrations through its own stiffness and deformation, reducing the impact transmitted to the vehicle body, improving comfort and component lifespan.
The rear wheel hub assembly, due to its driving (such as RWD/4WD vehicles) or parking braking functions, usually has a more complex force distribution than the non-driving front wheel hub, and has higher requirements for strength, stiffness, and thermal management (such as brake cooling). If the hub is deformed, the bearings are worn out, or the installation is loose, it may cause shaking, abnormal noises, brake drift or even loss of control. Regular inspections are necessary (especially after collisions or driving over uneven surfaces).
