What is the rear brake disc of a car?

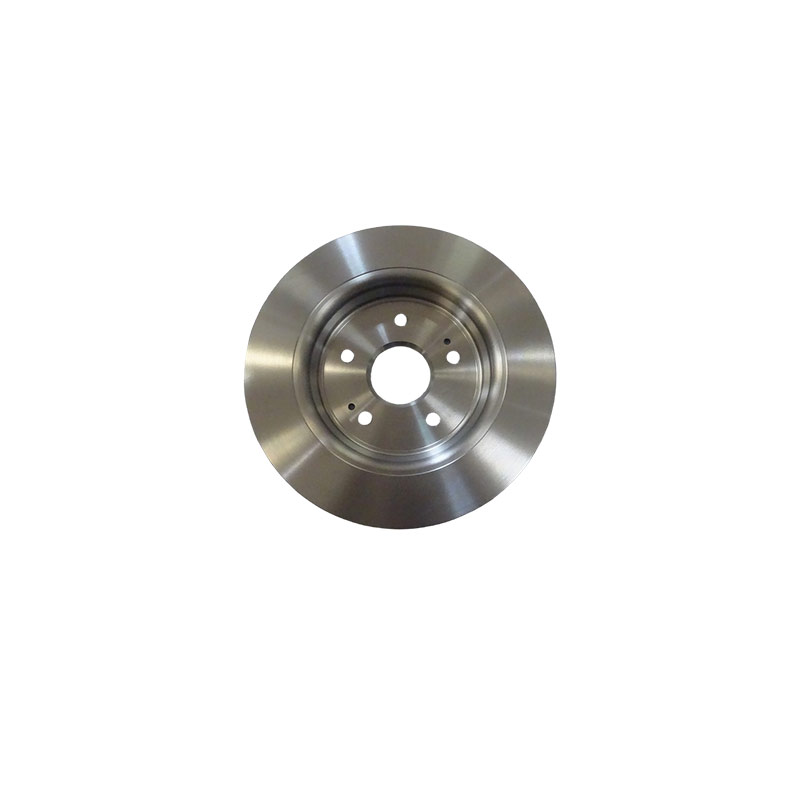

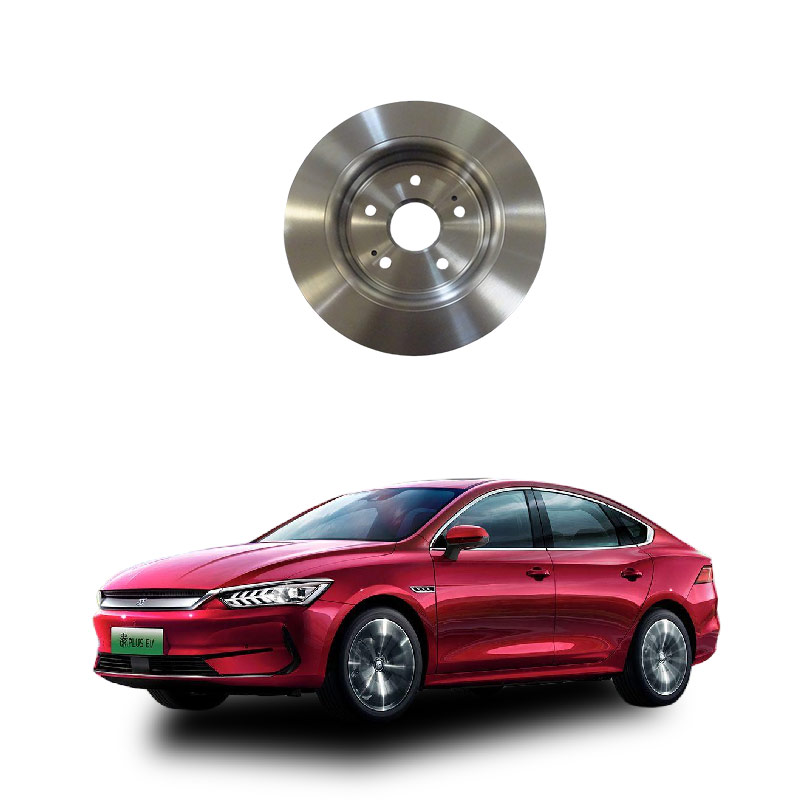

The rear brake disc (also known as the rear brake pad) is a circular metal disc component installed on the rear wheels of a vehicle. It is the core rotating element of the disc brake system and works in conjunction with the brake pads through friction to slow down or stop the rear wheels.
It is typically made of gray cast iron (some high-performance or commercial vehicles may use high-carbon alloys or ventilated structures), rotates synchronously with the wheels; when the brake pedal is depressed, the brake caliper clamps the brake disc, using friction to convert kinetic energy into heat energy, thereby generating braking force.
In most family cars, the rear wheels mostly use solid brake discs (without ventilation channels), which have a simple structure, low cost, and are easy to integrate with parking brakes (hand brakes); a few high-performance or heavy-duty models may be equipped with ventilated rear brake discs to improve heat dissipation performance.
The braking force of the rear brake disc is usually less than that of the front wheels (as the vehicle's center of gravity shifts forward during braking), but it is crucial for braking stability, anti-skid prevention, and parking functions; some economy models may even use drum brakes for the rear wheels, but "rear brake disc" specifically refers to the rear wheels with disc braking configuration.
Its common structure includes the friction working surface, the central mounting hole, and the hub connection flange. Some are equipped with holes or marking slots for chip removal and heat dissipation; it is necessary to regularly check the thickness (must not be lower than the manufacturer's specified MIN THK), for cracks or severe grooves, and if the wear exceeds the limit, it must be replaced on the same axis left and right.
The rear brake disc has the same principle as the front brake disc, but its size, thickness, and heat dissipation design are usually more conservative to match the lower braking load of the rear axle and cost control requirements. If the vehicle is labeled as "front disc rear disc", it means that both the front and rear wheels use disc braking (including rear brake discs).
The main function of the rear brake disc is to generate braking force through friction with the rear brake pads, assisting in slowing down the vehicle, maintaining braking stability, and cooperating with the front braking system to prevent the vehicle from losing control during braking (such as skidding or side sliding).
Provide braking force: The rear brake disc (if the vehicle uses rear disc braking) rotates with the wheels, when braking, the brake pads clamped by the caliper friction its surface, converting kinetic energy into heat energy, assisting the vehicle in decelerating or stopping; in most family cars, the rear wheels bear approximately 20%–30% of the total braking force.
Stabilize braking posture: During braking, the vehicle's center of gravity shifts forward, the front wheels bear more load, and the rear brake disc balances the braking force of the rear wheels to prevent them from locking prematurely or skidding, improving braking direction stability, especially in slippery or emergency braking situations.
Cooperate with parking brakes: The rear wheels often integrate mechanical parking brakes (hand brakes), the structure of the rear brake disc (or drum brakes) is more conducive to integrating with the parking mechanism, ensuring reliable parking on slopes.
Assist in heat dissipation and anti-heat fade: Although the rear brake disc is usually a solid disc (with less heat dissipation than the front ventilated disc), it still needs to be resistant to high temperatures and wear to avoid a decrease in braking force due to overheating (heat fade).
Note: Some economy models use a "front disc rear drum" layout (i.e., the rear wheels use drum brakes instead of brake discs), in this case, there is no rear brake disc; but if the vehicle is labeled as "front disc rear disc", then the rear brake disc is the core rotating component of the disc braking system, its material (such as gray cast iron or ventilated disc) and design directly affect the braking response and durability.
Rear brake disc failures usually manifest as abnormal noises, brake shaking, longer braking distance, abnormal brake pedal, or malfunctioning warning lights. Common causes include excessive wear, deformation, uneven wear, rust, or failure of components (such as brake pads, calipers) in contact. Typical symptoms: A sharp metallic scraping sound when braking (indicating that the brake pads have worn through and the backing plate is directly rubbing against the brake disc); noticeable shaking of the steering wheel or the vehicle body (especially when braking at high speed, often due to uneven thickness of the brake disc or thermal deformation exceeding 0.05mm); soft brake pedal/traction braking (possibly related to stuck or improper return of the master cylinder); malfunction indicator light on (some models trigger when the brake pads/brake discs wear to the limit or the ABS/ESP detects abnormal braking force).
Common causes: Long-term failure to replace brake pads leads to deep grooves or thinning of the brake disc (below the manufacturer's minimum safe thickness, such as 2mm–3mm); long-term parking causes rust on the disc surface (light rust can be eliminated through running-in, severe cases require replacement); stuck guide pin or stuck piston in the master cylinder causing abnormal wear on one side; frequent emergency braking or long downhill driving causing thermal degradation and deformation; using inferior brake pads accelerates uneven wear on the disc surface.
Risk warning: If the brake disc has worn through to the point of "iron-on-iron" contact (visible exposed metal matrix, bluish color or grooves > 1.5mm), continuing to drive will significantly reduce braking efficiency and may cause an accident; if the shaking is due to disc deformation, it will weaken the stability control effect of ABS.
Handling principle: Brake discs and brake pads usually need to be replaced in pairs (same axle for the rear wheels); if the disc thickness is still within the standard and only has minor scratches, consider "polishing the disc" (using a lathe to finely grind and smooth it), but deformation, cracks, and excessive wear must be replaced; at the same time, check the lubrication status of the brake master cylinder, guide pin, and whether the brake fluid contains water (affecting thermal stability).
Suggested operation: Immediately stop the vehicle for inspection (if you smell burnt rubber, obvious deviation, or the pedal is fully depressed); do not disassemble or assemble the braking system yourself; go to a professional repair point to measure the thickness of the disc with a micrometer, use a level gauge to detect the flatness, and read the brake system fault codes (such as C1234 type wheel speed abnormal codes); after replacement, perform a 200-kilometer light braking for 200 kilometers for grinding and to avoid heavy braking.
If the malfunction indicator light is on but there is no abnormal feeling, it may also be due to dirt on the wheel speed sensor or circuit malfunction, which requires using a diagnostic tool to confirm the specific fault code (such as "right rear wheel speed signal lost" ≠ physical damage to the brake disc). Regularly check the braking system every 20,000 kilometers (including the rear wheels), develop a smooth driving habit, and can significantly delay the wear of the brake disc.
If you want to know more, keep reading the other articles on this site!
