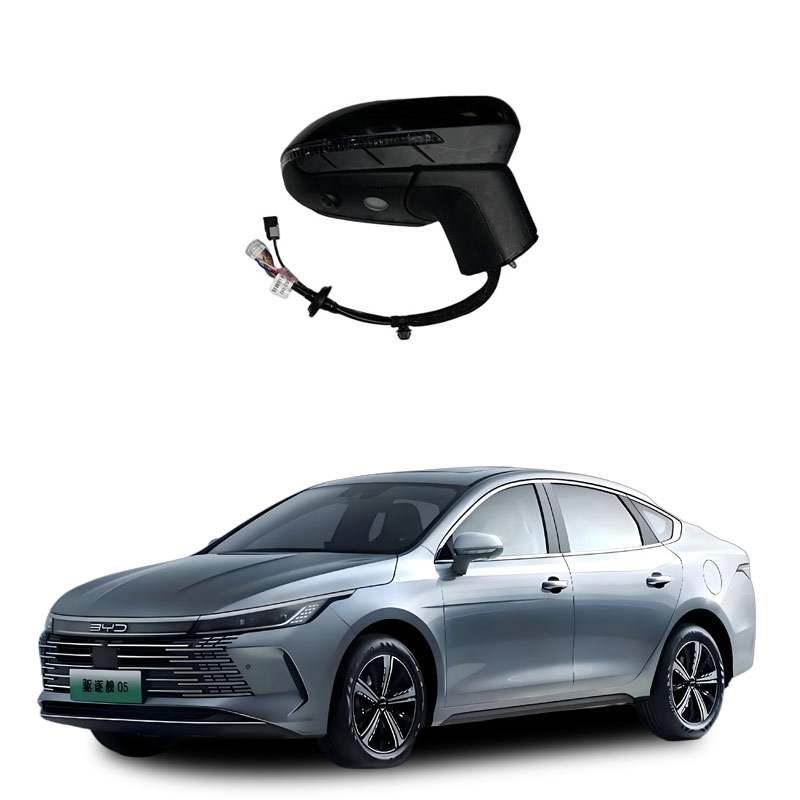

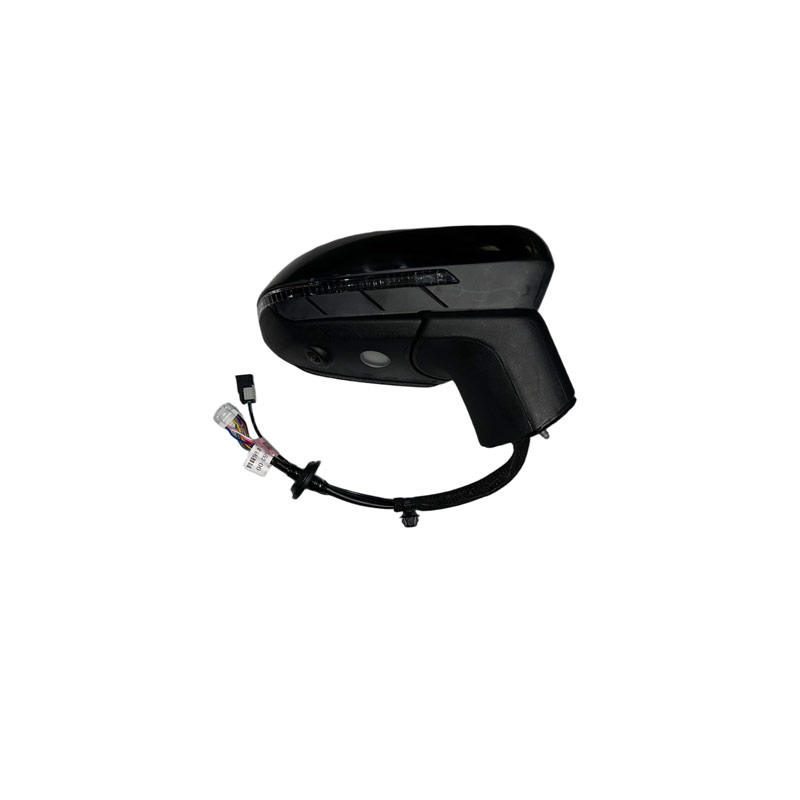

What is the assembly of the right rearview mirror component for the car?
The automotive right rearview mirror assembly refers to a complete modular unit installed on the right side of the vehicle, integrating all components related to the rearview function. It is used to provide the driver with visual information of the right side and the rear of the vehicle, and may incorporate various safety and convenience features.
According to authoritative automotive technical materials, its core components include:
Lens: Provides rear view, some models adopt anti-glare or curved design to reduce blind spots;
Shell: Usually made of high-strength ABS engineering plastic, it serves as protection and aesthetics;
Adjustment mechanism: Includes manual angle adjustment rods or electric stepper motors, enabling multi-directional adjustment of the lens;
Heating module: Embedded with resistance wires, used for defogging, deicing;
Electronic components: Such as automatic folding servo motors, blind spot monitoring sensors (for high-end models);
Connection cables and interfaces: Ensure compatibility for communication and power supply with the vehicle's electrical system.
This assembly adopts a modular design, facilitating quick replacement and maintenance, without the need to disassemble internal parts one by one. During replacement, attention should be paid to matching the wiring definitions, control protocols, and installation angles with the original vehicle, especially in the application of dismantled parts, it is recommended to verify compatibility through professional channels.
The automotive right rearview mirror assembly is a key component of the vehicle's external vision system. Its function is not limited to providing rear and side views, but also integrates multiple functions to enhance driving safety and convenience. According to the latest publicly available information, its main functions can be summarized as follows:
Core functions
Provide rear and side views: Through the reflection of the lens, it helps the driver observe the road conditions, vehicles, pedestrians, etc. in the right rear of the vehicle, serving as the basic guarantee for lane changing, reversing, parking, etc.
Expand the field of vision: The external rearview mirrors generally use convex mirrors (curvature radius of 80–150mm), and some models use double curvature design, with the outer large curvature zone covering approximately 60° of the rear side, balancing the field of vision breadth and distance judgment accuracy.
Adjust the angle to adapt to different driving needs:
Manual or electric adjustment, allowing the driver to find the best viewing angle according to their sitting posture and height;
High-end models support speed-sensing adjustment (such as when the vehicle speed is >80km/h, the lens automatically lowers by 2°) or steering linkage adjustment (automatically expands by 5° when the turn signal is activated);
Auxiliary safety and convenience functions
Heating defogging/defrosting: The back of the lens is embedded with resistance wires, which quickly clear fog, snow, or frost when powered on, ensuring clear vision in low-temperature or humid weather.
Automatic folding: Automatically retracts when the car is locked to reduce the risk of scraping during parking; automatically extends when the car is unlocked to enhance convenience.
Electric adjustment and memory function: Achieved through stepper motors for precise angle control, some models can remember the pre-set positions of multiple drivers.
Integrated turn signal lights: Some models (such as Tesla Model 3) integrate LED turn signals in the lens shell, enhancing the visual warning effect.
Blind spot monitoring (for high-end models): Monitors the side rear area through sensors, with lights or sounds sounding when a vehicle approaches, enhancing the safety of lane changing.
Structural and design features
Shell: Mostly made of high-strength ABS, ASA, or PC/ASA alloys, with shock resistance, weather resistance, and UV resistance properties, some models reduce wind resistance by 15% through flow channels.
Lens: The base material is special glass (containing 70% or more silicon oxide), with a thickness of only 2.1mm, reducing weight by 30% and filtering 99% ultraviolet rays;
High-end models use blue mirror coating to reduce strong light interference.
Modular design: Facilitates overall replacement and maintenance, without the need to disassemble parts one by one, improving after-sales efficiency. In conclusion, the rear-view mirror assembly is not only a basic observation tool, but also a comprehensive safety system integrating optical, mechanical, electronic and intelligent technologies. It plays a crucial role in enhancing driving safety and improving the driving experience.
