What is the air duct assembly on the right side of the car cockpit?

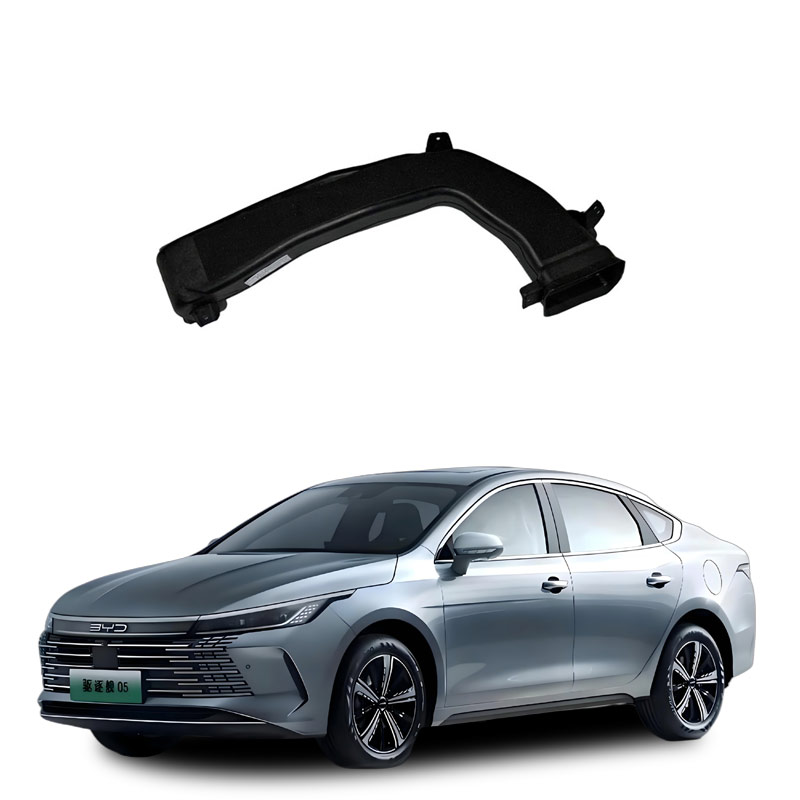

The air duct assembly on the right side of the car cockpit, often referred to as the "right-side blowing air duct", is a key component in the car's air conditioning ventilation system. It is responsible for guiding the processed (cooled or heated) air from the HVAC assembly to the right-side outlets of the cockpit, enabling the delivery of air to the faces or upper body areas of the occupants.
Core Definition and Function
Function: Directly directs the airflow output from the HVAC assembly to the right-side blowing air outlet, regulating the temperature of the face or chest area of the right-side occupants (such as the passenger in the front seat).
Structural Characteristics:
Typically a plastic duct, connecting the HVAC assembly to the side outlet of the dashboard.
May include regulating mechanisms such as valves and levers to control the distribution of air volume.
In some models (such as Tesla Model 3), the right-side blowing air duct adopts a "through-and-through hidden design", without the traditional independent grille for the outlet.
Typical Components
According to public information, this component generally consists of the following parts:
Duct Shell: Main air flow channel, connecting the HVAC and the outlet.
Valves/Leaves: Adjust the direction and size of the airflow.
Connection Brackets/Clips: Fixed to the internal structure of the dashboard.
Decorative Frame/Panel: Integrated with the interior to enhance aesthetics.
This type of accessory has detailed parameters and applicable vehicle models on platforms such as Auto Parts People and Chonghe Auto Parts Network.
Common Faults and Maintenance
Blockage: Results in reduced or no airflow from the right-side outlet.
Valve Jamming: Affects the adjustment of the airflow direction.
Connection Loosening: Causes abnormal sounds or air leakage.
If repair or replacement is needed, it is recommended to consult a professional auto parts platform for the compatible model or refer to the vehicle maintenance manual.
The right-side blowing air duct assembly in the car cockpit is part of the air conditioning ventilation system. Its main function is to guide the air processed by the air conditioner (cooling or heating) to the right-side passenger area (usually the passenger seat) of the cockpit, achieving precise air delivery and temperature regulation.
According to public information, the specific functions and design features of this component are as follows:
Zone-Specific Ventilation Control System: In models supporting dual-zone or three-zone automatic air conditioning, the right-side blowing air duct can independently control the air volume, direction, and temperature, meeting the personalized comfort needs of the passenger in the front seat.
Collaborative Airflow Organization: Cooperates with the central and lateral outlets to form a "golden triangle" air delivery area covering the upper body and face, enhancing thermal comfort.
Structural Integration Design: As shown in Tesla Model 3, some models adopt a "through-and-through hidden outlet design", with the right-side duct independently controlled from the left side, driven by a motor to adjust the angle of the blades, achieving multi-directional air delivery.
Reduce Noise and Improve Visibility: Some models flatten the duct and adopt a hidden layout, reducing the height of the dashboard "cap", expanding the forward visibility, and optimizing the air flow uniformity to reduce the noise of air delivery.
Note: If the "right-side blowing air duct" referred to is located inside the dashboard (not the outlet itself), it is essentially a branch of the air duct system, responsible for transporting the air from the air conditioning box to the right-side outlet; if it refers to the outlet itself (such as the grille visible on the passenger seat), it focuses on air flow guidance and comfort regulation.
The fault of the right-side blowing air duct assembly in the car cockpit typically manifests as no airflow or significantly reduced airflow from the right-side outlet. According to recent authoritative automotive maintenance information, such problems may be caused by the following types of reasons:
Common Fault Causes
Duct Dividers Valve Plate Jamming or Damage
If the valve plates responsible for distributing the airflow in the duct are not opened or mechanically stuck, the right-side airflow will be blocked .
Outlet Leaf Plate Mis-adjusted to Closed Position
Manual manipulation of the right-side outlet leaf plate may cause it to completely cover the outlet, seemingly "no airflow" . Faults in the blower or its associated components
Blower resistance damage (there is air only in high gear)
Blower capacitor aging or motor coil burnout (no air in all gears or abnormal noise)
Severe clogging of the air conditioning filter
Excessive dust accumulation in the filter significantly increases the resistance of the duct, especially affecting the more complex right duct .
Incorrect dual-zone control settings
If the vehicle is equipped with dual-zone air conditioning, setting the temperature on the right side to "off" or the air volume to "minimum" will result in no air .
Faults in the fan actuator (servo motor)
If the motor controlling the central control outlet mode gets stuck, it may cause the duct to remain closed for a long time .
Communication failure of the wiring or control panel
If the air conditioning control panel cannot send instructions, or the related wiring is loose or disconnected, use a diagnostic tool to read the fault code (such as B1089) for confirmation .
Suggested troubleshooting steps
Check the basic settings
Turn off the dual-zone function (press the "DUAL" or "SYNC" button)
Adjust the outlet blades on the right side to the fully open position
Set the air volume to the maximum and test if air is restored
Clean or replace the air conditioning filter
The filter is usually located behind the glove compartment on the passenger side, remove it and check if it is blackened or caked
It is recommended to replace every 1–20,000 kilometers
Test the operation status of the blower
Listen for any abnormal noises (such as harsh friction sounds)
Observe if there is air only at the highest gear (indicating resistance fault)
Restart the air conditioning system
Disconnect the negative terminal of the battery for 30 seconds and reconnect, reset the control unit
Professional inspection
If the above operations are ineffective, it is recommended to go to a repair shop and use a diagnostic tool to read the air conditioning system fault code
Focus on checking the fan actuator, blower power supply circuit, and refrigerant pressure (low pressure may trigger protection shutdown)
Precautions
Avoid disassembling the ducts by yourself: The right air ducts are mostly located inside the dashboard, and non-professional operation can easily cause secondary damage .
Regular maintenance: Clean the evaporator and replace the filter every 20,000 kilometers, which can effectively prevent such faults .
