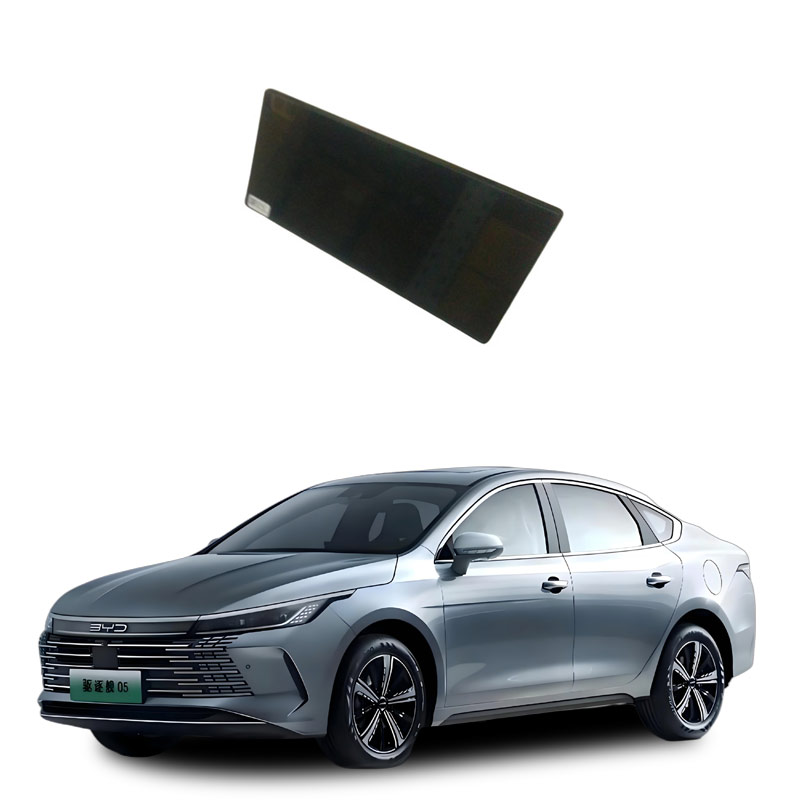

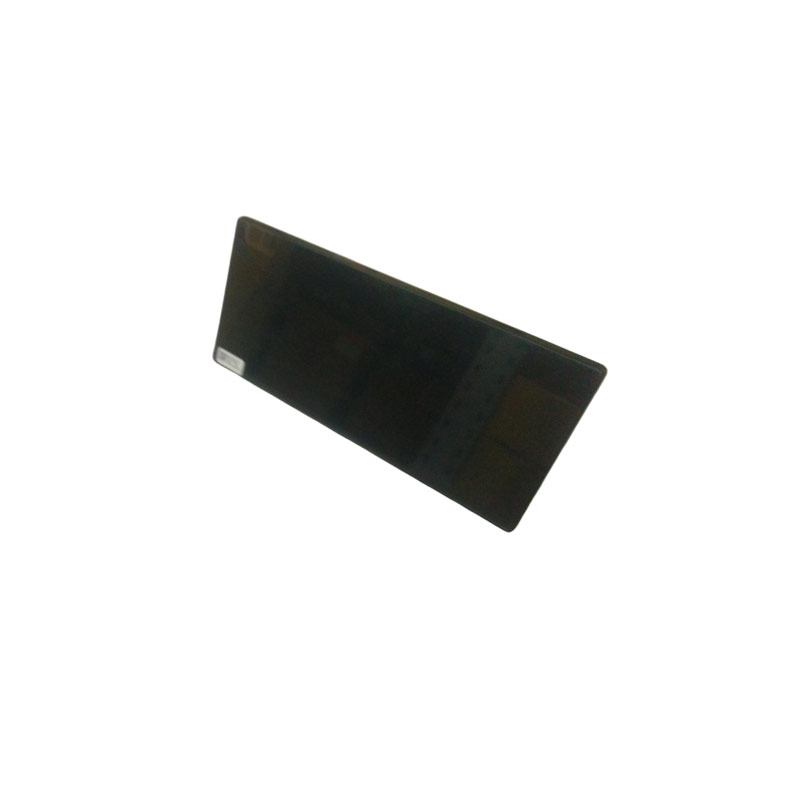

The function of the automotive modular instrument assembly
The automotive integrated instrument assembly (often referred to as the combined instrument) is the core human-machine interface in a vehicle that provides critical operating information to the driver. Its main functions are as follows:
Core functions
Display vehicle operating parameters: including speed, engine speed, cumulative mileage, fuel reserve, coolant temperature, oil pressure, etc.
Indicate system status: through indicator lights to show the status of common functions such as lights, turn signals, parking lights, and fog lights.
Issue fault and safety warnings: such as generator failure, transmission abnormality, airbag failure, braking system problems, etc., usually accompanied by audible alarms.
Support driving assistance information: modern high-end models can integrate ADAS information such as lane departure, blind spot monitoring, adaptive cruise control (some models equipped with 3D rendering display).
Enable multi-mode interaction: some all-lcd instruments support driving mode switching (economy/normal/sport) and allow viewing of vehicle computer data (such as mileage, fuel consumption, Bluetooth phone, etc.) through steering wheel buttons.
Technical features
Integrated design: using microcontrollers (MCU), CAN bus communication, stepper motor-driven pointers, LCD/LED/OLED displays, etc., to enhance integration and reliability.
Modular architecture: facilitating production assembly, with different functional modules that can be flexibly configured to fit various vehicle models.
Intelligent trend: in the future, it will integrate artificial intelligence, vehicle networking, 5G communication, and support personalized settings and cloud data interaction.
Safety significance
The combined instrument is the first line of defense for ensuring driving safety. If a fault light on the instrument panel is constantly on or there is abnormal fluctuation of values, the driver should immediately stop to check to avoid potential risks from escalating.
The "combined instrument failure" in automobiles usually refers to an abnormality in the combined instrument (i.e., the dashboard) that prevents normal display of vehicle status information. The combined instrument is the core interface for the driver to obtain vehicle operating data, and its failure may be caused by various reasons, not necessarily indicating that the instrument itself is damaged. More often, it is a problem with the connected sensors, wiring, or communication system.
Common failure causes
Soft shaft-related issues (common in older models)
Soft shaft not connected or broken
Soft shaft bent, knotted, or with dried lubricating oil
Solution: Reconnect, replace the soft shaft, or add special lubricating oil
Internal hardware failure of the combined instrument
Internal circuit boards, displays, or pointer motors damaged
Requires professional inspection, and in severe cases, the entire instrument assembly needs to be replaced
Indirectly caused by other vehicle systems
Speed sensor failure → malfunction of speedometer/mileage meter
Battery or generator problem → charging indicator light on, unstable voltage
Fuel sensor or ground connection problem → inaccurate fuel gauge or no display
Water temperature sensor or wiring problem → abnormal water temperature gauge
Network communication failure (common in modern vehicles)
HS2CAN and other vehicle network communication interruptions
Causes include: interference from added accessories, ground short circuit of wiring, damage to gateway module, etc.
Need to use an oscilloscope and diagnostic instrument to detect communication waveforms and resistances
Fuse blown or power line open circuit
Causing the instrument to go black or completely unresponsive
Software or calibration issues
Not resetting after changing engine oil and not receiving maintenance reminder
Alarm triggered when mileage or time reaches the set value
Vehicle software needs to be updated or reset
Suggested handling steps
Observe specific abnormal phenomena: is it some indicator lights on, a complete black screen, or some dials not working?
Check basic items:
Has the fuse blown?
Is the instrument connector loose?
Is the battery voltage normal (≥12.4V) Read fault codes: Use an OBD diagnostic tool to read the fault codes stored in the engine, ABS, body control module, etc., to locate the real source.
Avoid disassembling the instrument yourself: Modern combined instruments are often integrated with anti-theft and mileage recording systems. Non-professional operation may cause more problems.
Go to a professional repair shop as soon as possible: Especially when accompanied by warning sounds, power loss, steering weight increase, braking abnormalities, etc., you should stop the vehicle immediately for inspection.
If further judgment is needed, you can provide the specific vehicle model, type of fault light (such as engine diagram, battery icon, ABS light, etc.) or the display content of the instrument, so as to conduct a more accurate analysis.
