The function of the car fog lamp cover

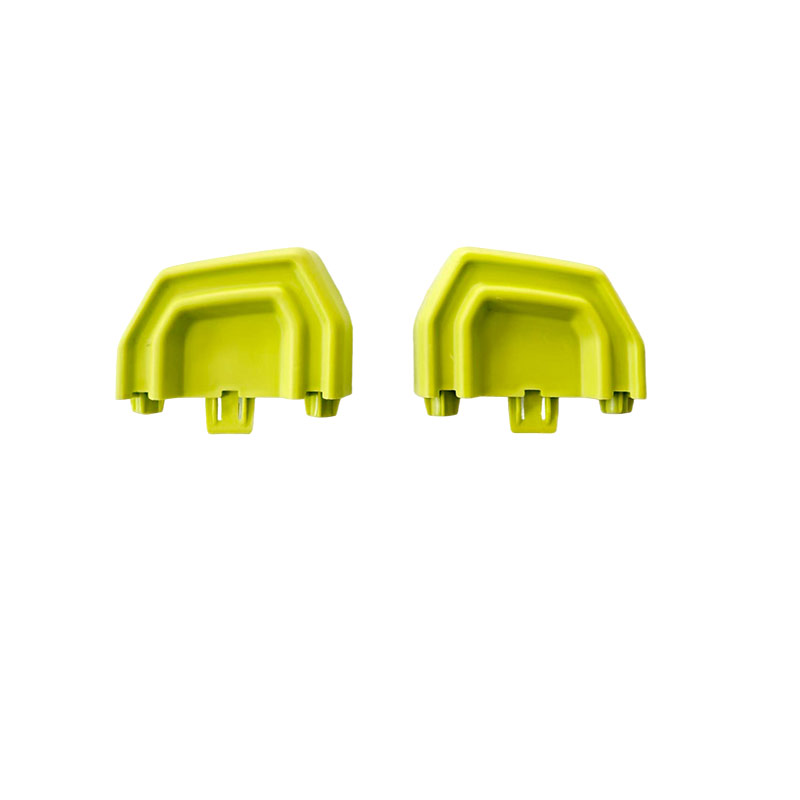

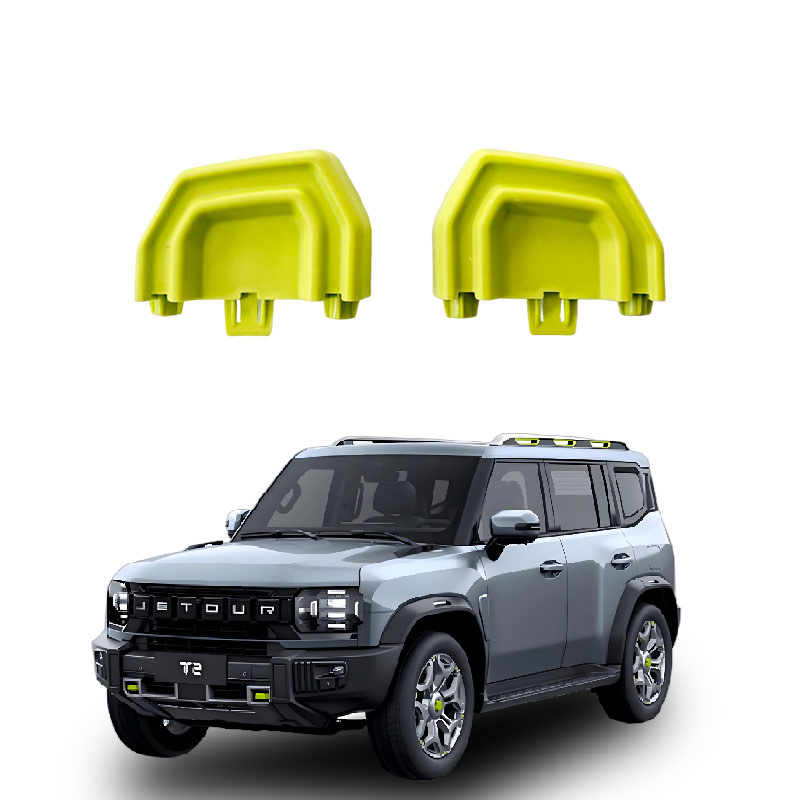

The car fog lamp cover (fog lamp hood) is a protective component installed on the exterior of the fog lamp. Its main function is to physically protect the lamp body, maintain optical performance, and enhance aesthetics. Core function
Impact protection: Prevents flying stones and sand from directly hitting the fog lamp lens during driving, avoiding scratches, cracks or breakage, and extending the lamp's lifespan.
Dust and water sealing: Combined with sealing rings, it prevents dust and rain from entering the lamp cavity, avoiding circuit short-circuiting or fogging/mildew on the inner side of the lamp cover.
Optimized light distribution: Some original factory designs use special textures or refraction structures to assist in light scattering, reducing glare and improving the penetration effect in rain and fog (not the main function of the decorative piece).
Appearance enhancement: Fills the bumper openings to maintain the integrity of the vehicle's front appearance; if the fog lamp is missing, it can be used as a decorative cover to prevent foreign objects from entering. Notes for Attention
Non-luminous components: They do not emit light and only serve as protection and auxiliary functions; poor-quality or modified transparent covers, if their materials are not resistant to weathering, may turn yellow and become brittle, thereby affecting the light transmittance.
Distinguishing concepts: Do not confuse "fog lamp cover" with "fog lamp" itself. The fog lamp is responsible for low visibility lighting and warning (front yellow/white, rear red), while the cover is only an external protective device.
Impact of absence: If the original fog lamp is present but the cover is missing, the vehicle can be driven for a short period, but it must be replaced as soon as possible to prevent the lamp body from being damaged or experiencing water ingress failure; if the original vehicle has no fog lamp, this position is usually a decorative cover with no actual lighting function.
Core technique for installing car fog lamp covers: Strictly follow the "first the outer side → then the lower side (close to the headlight/rim) → finally the inner upper side" locking sequence for pressing and resetting. Use tools for protection against scratches and damage, and test the function after installation.
Key operation steps
Preparation and protection: Turn off the engine and disconnect the power supply. Wrap a thin cloth around or a dedicated locking tool to avoid scratching the paint surface or damaging the locking mechanism.
Alignment and pre-installation： Align the edge of the fog lamp cover with the installation slot， and initially insert the outer side locking position by hand.
Sequential pressing： Press in the order of "outer side → lower side (close to adjacent parts) → inner upper side"， apply even force with the root of your palm， until you hear a clear "click" sound. Do not use violent single-point tapping.
Tightening and inspection： If there are fixing screws， tighten them after the cover is in place； check that the gaps around are uniform and without warping.
Function verification： Turn on the power and turn on the fog lamp to confirm that the light is properly illuminated and there is no obstruction. Notes for Attention
Irreversible sequence: If the inner or upper part is installed first, it will cause the outer part's snap fastener to fail to align properly, and forced installation may lead to breakage.
Force control: The snap fastener material is brittle, and it needs to be pressed vertically and firmly; sideward prying may cause permanent deformation.
Model differences: For some models, the inner tire liner needs to be removed or the steering wheel angle needs to be adjusted to obtain operation space. Refer to the repair manual for details.
If there are gaps or looseness after installation, it is usually due to incorrect sequence or the snap fastener not being fully unlocked, requiring removal and reinstallation; if the snap fastener breaks, the cover assembly needs to be replaced.
The core fault manifestation and cause of the car fog lamp cover failure:
Sealing failure causing water ingress and fogging: The rubber seal ring of the rear cover hardens, deforms or is missing, and water from washing or rainy days seeps in; slight fog can be dried, but significant water accumulation requires replacement of the seal ring.
Unable to install or loose detachment: Plastic snap fastener breaks, thread slips or rear cover cracks, resulting in loss of dust-proof and waterproof functions, and is prone to causing lamp socket short circuit.
False fault light reporting: For some models, when replacing the bulb, the rear cover or the seal ring is not restored, or the seal ring is not tight, the BCM detects abnormal power or moisture in the circuit and alarms.
Troubleshooting and solution steps:
Visual inspection: Remove the fog lamp rear cover, observe whether the rubber seal ring is hardened, cracked or missing, and check if the cover body has cracks and if the threads are intact.
Component replacement: If the rear cover plastic cracks or the threads are damaged and cannot be repaired, a corresponding model fog lamp rear cover assembly needs to be purchased for separate replacement (no need to replace the entire lamp assembly).
Function test: After installation, ensure the snap fastener is in place, conduct a water spray test, confirm no water ingress and no fault codes on the dashboard. Notes for Attention
Before operation, make sure to turn off the vehicle power supply to avoid short circuits.
If water ingress has caused corrosion of the lamp socket or burning of the bulb, you need to clean the contacts and replace the bulb simultaneously. Do not test with power on directly.
When replacing the LED bulb yourself, make sure to confirm whether a decoding resistor needs to be installed to prevent triggering faulty lights due to power mismatch.
If you do not have the experience in disassembly and assembly or if there is a deep circuit fault, it is recommended to go to a professional repair shop for handling to avoid damaging the surrounding wiring.
