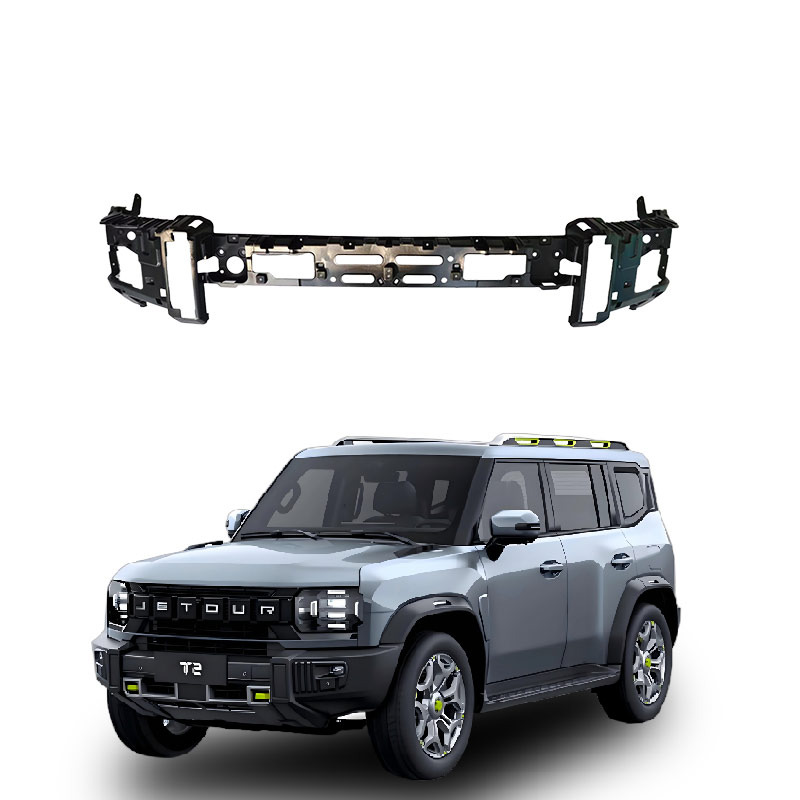

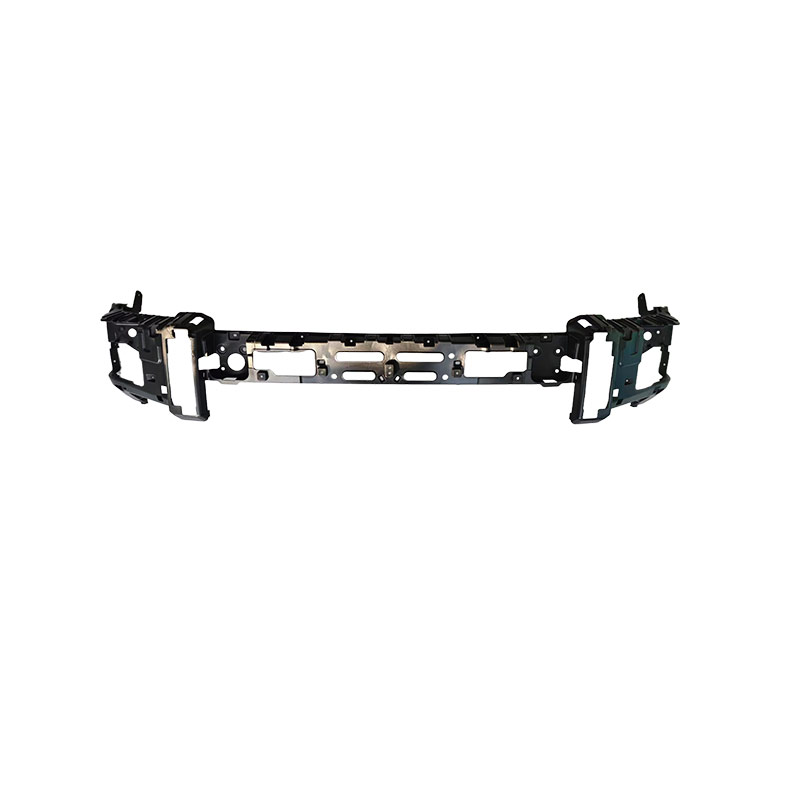

What is the inner frame of the car bumper?
The inner frame of a car bumper typically refers to the bumper frame (or the crash bar/beam), which is a core metal component located inside the plastic outer cover and used to support the structure and absorb collision energy. It is the main metal component that provides structural support and fixes the outer cover, and it is responsible for transferring and distributing the impact force during medium to high-speed collisions, preventing the energy from directly impacting the passenger compartment and expensive vehicle components.
Core definition and composition
Name: The professional term is "bumper frame" or "crash bar", commonly known as "inner bar" or "metal frame"; not all models are equipped with independent energy absorption boxes, but the beam structure is widespread.
Material: Mostly made of high-strength steel, aluminum, or composite materials, with a cross-section often in U-shaped, Ω-shaped, or box-type structures to balance strength and lightweight.
Position: Hidden behind the plastic outer cover and the buffer foam, it is laterally connected to the vehicle longitudinal beams, and is the third layer of protective structure from outside to inside.
Function: As a key passive safety component, it is responsible for transmitting and distributing the impact force during medium to high-speed collisions, preventing the energy from directly acting on the passenger compartment and expensive vehicle components.
Structural hierarchical relationship (from outside to inside)
Outer decorative panel: Made of PP/PU plastic material, mainly providing aesthetic appearance and low-speed scratch buffering.
Buffer layer: Foam or honeycomb energy absorption material, used to absorb low-speed collision energy and pedestrian protection.
Inner frame (crash bar/frame): The core load-bearing component, resisting medium to high-speed impacts and connecting the vehicle main beams.
Energy absorption box (standard in some models): Located between the crash bar and the longitudinal beams, further dissipating huge energy through deformation.
It should be noted that "inner frame" is not a standard engineering term. In daily communication, it is often confused with the "crash bar" as a whole or its supporting brackets; its essence is a rigid support and energy absorption system, different from the external soft plastic skin.
The core function of the car bumper inner frame (i.e., bumper frame/crash bar) is to provide structural support and fix the outer cover, absorb and transfer collision energy, and protect the key components of the vehicle and the safety of the occupants.
Core function analysis
Structural support and fixation: As a rigid base, it firmly installs the outer decorative panels, buffer materials, radar/fog lights, etc., maintaining the overall shape and position stability of the bumper.
Collision energy absorption and force transmission: During low-speed collisions, it absorbs the impact force through its own deformation or in conjunction with the energy absorption box; during high-speed collisions, it effectively transmits the remaining force to the vehicle longitudinal beams to prevent the engine, fenders, etc. from being directly damaged.
Passenger and vehicle protection: Preventing the intrusion of the collision into the cabin and ensuring the survival space, while reducing maintenance costs (avoiding direct damage to the main beams).
Structural composition and collaborative mechanism
Main beam (crash bar): Usually made of steel or aluminum U-shaped channels, responsible for the main impact resistance task.
Energy absorption box: Connecting the main beam and the vehicle longitudinal beams, absorbing energy through deformation to protect the longitudinal beams from damage.
Installation brackets: Used to fix the outer panels and internal sensors, lamps, and other functional components.
It should be noted that "inner frame" is not a single part, but a system composed of the crash bar + energy absorption box + installation structure. Its performance directly determines the maintenance economy at low-speed collisions (such as scratches at 15 km/h or below whether they damage the main beam) and the safety at high-speed collisions.
