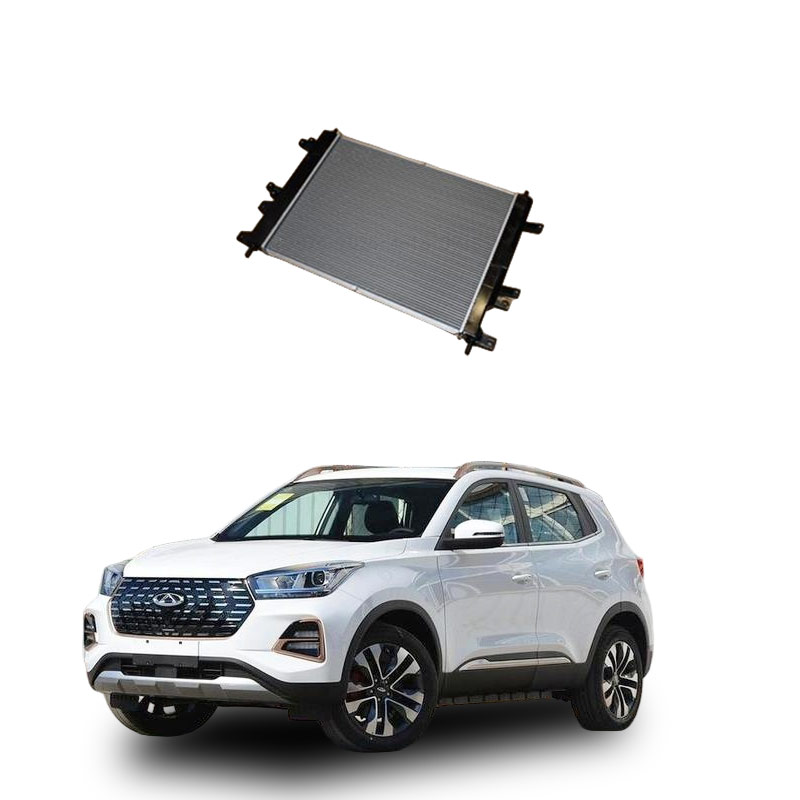

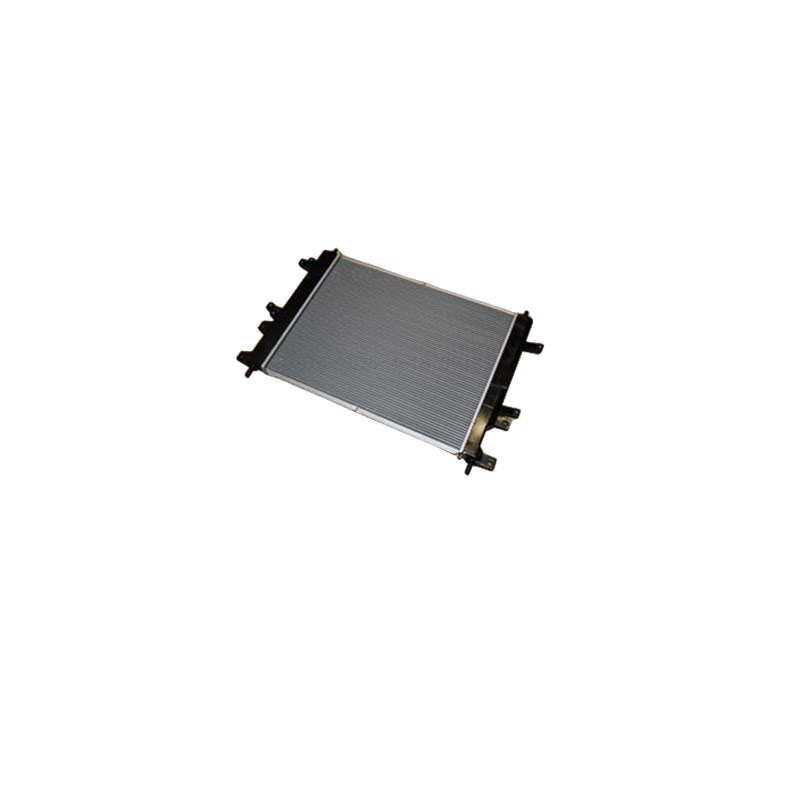

The function of the automotive radiator assembly
The automotive radiator assembly is the core component of the vehicle's cooling system. Its main function is to transfer the heat generated by the engine through the coolant to the outside air, thereby maintaining the engine's operation within the normal temperature range and preventing performance degradation, increased wear, and even damage due to overheating.
Core Function
Heat Exchange Cooling: The hot coolant flows out from the engine, passes through the radiator core, and releases heat through aluminum or copper heat sinks into the air. The cooled liquid then circulates back to the engine to absorb more heat.
Temperature Control: In coordination with components such as thermostat, electric fan, and water pump, it precisely regulates the engine temperature to ensure efficient operation.
System Protection: It prevents engine failures such as cylinder seizure, detonation, and oil failure due to high temperatures.
Component Structure (Typical)
Inlet Chamber and Outlet Chamber: Used for introducing and discharging the coolant respectively.
Radiator Core: The core heat exchange part, consisting of flat cooling tubes and heat sinks, increases the heat exchange area.
Auxiliary Components: Some assemblies also integrate functions such as intercooler, oil cooler, and transmission oil cooler, serving the vehicle's overall thermal management.
Material and Type
Material: The mainstream is aluminum (lightweight, corrosion-resistant), while for commercial vehicles, copper is used (good thermal conductivity, durable).
Structural Form: Common types include plate-type and belt-type, balancing heat exchange efficiency and structural strength. Notes for Attention
Use long-lasting antifreeze to prevent corrosion or freezing.
Regularly check the water level, the aging of the hoses, and whether the radiator fins are clogged or damaged.
When cleaning, rinse the core in the opposite direction of the air flow with clean water to avoid damaging the heat dissipation area. In conclusion, the automotive radiator assembly is not merely about "heat dissipation", but rather a crucial system that ensures the thermal balance of the engine, enhances reliability and prolongs the lifespan.
The failure of the automotive radiator assembly refers to the performance abnormalities or damage of the core component in the engine cooling system - the radiator (commonly known as the "water tank"), which may cause the engine to overheat or even be severely damaged. According to authoritative public information, the common types of faults, their manifestations, and handling methods are as follows:
Common Fault Types
Leaking
Radiator core tube rupture or aging;
Seal failure of the radiator cover;
Burst or loosening of the inlet and outlet water hoses .
Blockage
Internal scaling: After long-term use, minerals in the coolant form scale and adhere to the inner walls of the water channels;
External dust accumulation: Dust, willow fibers, etc. block the gaps between the radiator fins, affecting ventilation;
Using inferior coolant: White crystals form and block narrow water channels .
Poor heat dissipation
Faults in the water pump cause poor circulation of coolant;
Thermostat gets stuck and cannot open the large circulation;
The radiator fan does not rotate (motor, relay, fuse, or ECU failure);
Insufficient or deteriorated coolant;
Improper installation affects air circulation .
Typical Fault Manifestations
Abnormally high engine temperature, the water temperature gauge enters the red zone, or "boiling" (coolant boiling and spewing out) ;
Power loss: Weak acceleration, dull driving ;
Coolant leakage: Colored (commonly green or red) liquid appears on the ground, and the liquid level in the coolant tank drops significantly ;
Increased engine noise: Due to high temperature, components expand and friction intensifies ;
Air bubbles, oil stains floating in the coolant, or the coolant level drops for no reason .
Judgment and Handling Suggestions
Initial Inspection
Observe the coolant level and appearance for leakage under cold engine conditions;
Check if the radiator surface is severely covered with dust and willow fibers;
Observe if the radiator fan operates normally when the engine is started .
Slight Blockage Handling
Use specialized radiator cleaning agent and follow the instructions for circulating cleaning .
Severe Fault Handling
Large leakage, core tube rupture: Replace the radiator assembly, do not use sealant for temporary repair ;
Fan does not rotate: Check the fuse, relay, motor, and ECU control signal ;
Suspected thermostat or water pump failure: Suggest having a professional repair shop use a diagnostic tool to read the fault code and test .
Preventive Measures
Replace the original recommended coolant every 2 years or 40,000 kilometers;
Clean the interior of the radiator during each coolant change;
Regularly use a low-pressure water gun to rinse the exterior of the radiator from the inside out (be careful not to damage the fins) .
Important Reminder: If you find that the engine has "boiled over", do not immediately open the radiator cover, stop the engine, wait until it is completely cooled down before checking, to prevent high-temperature coolant from spewing out and causing burns .
