What is the car tie rod assembly?
The steering tie rod assembly is a crucial force-transmitting component in the vehicle's steering system, responsible for accurately transferring the driver's steering wheel rotation to the wheels to achieve vehicle steering control. Depending on its structure and installation location, the tie rod assembly is mainly divided into two types: the steering cross tie rod assembly and the steering straight tie rod assembly.
Main types and functions
Steering cross tie rod assembly
It connects the left and right steering knuckles (or steering gears and steering knuckles), forming the core part of the steering trapezoidal mechanism.
It ensures that the left and right wheels turn proportionally according to the predetermined angle during steering, maintaining driving stability and precise control.
Typical structures include: inner ball joint, outer ball joint, tie rod body, dust cover, fastening thread, etc.
Steering straight tie rod assembly
It is mostly used in commercial vehicles or independent suspension models, connecting the steering rocker arm and the steering knuckle arm.
It bears bidirectional tension and compression loads, converting the steering torque into the lateral displacement of the wheels.
It is usually made of high-strength alloy steel (such as 35CrMo), and has a gap compensation mechanism to enhance durability.
Key functions
Transmitting steering force: Converting the steering wheel rotation action into the wheel's deflection.
Maintaining driving stability: Reducing steering deviation, false steering, and abnormal noises.
Ensuring safety: Directly affecting tire wear, control response, and accident risks.
Common problems and maintenance suggestions
Wear manifestations: Steering wheel shaking, steering illusion, abnormal noise, uneven tire wear, etc.
Check cycle: It is recommended to check the ball joint gap and the condition of the dust cover every 20,000 kilometers.
After replacement, operation: A four-wheel alignment must be performed to restore the original factory steering parameters and avoid tire wear.
Note: In some materials, "tie rod assembly" may also refer to the handbrake tie rod (parking brake system), but based on the context and frequent usage scenarios, here it is assumed to be the steering tie rod assembly. If you need information about the handbrake tie rod, please provide further clarification.
The steering tie rod assembly is a key component in the vehicle's chassis system, mainly distributed in the steering system and suspension system, and performs multiple functions such as force transmission, stabilizing the vehicle body, and improving control. According to authoritative public materials, its core functions can be summarized as follows:
In the steering system, the tie rod assembly (such as the steering cross tie rod, straight tie rod)
Transmitting steering force: Converting the steering wheel rotation command through the steering gear into the wheel's deflection, achieving precise steering.
Synchronizing left and right wheels: In the steering trapezoidal mechanism, the cross tie rod ensures that the left and right wheels turn at different angles synchronously, avoiding "deviation".
Adjusting the toe-in parameters: By adjusting the length of the tie rod, the toe-in of the front wheels can be calibrated, reducing abnormal tire wear.
In the suspension system, the tie rod assembly (such as the lateral stabilizer bar, rear axle tie rod)
Suppressing vehicle body roll: The lateral stabilizer bar (anti-roll bar) generates reverse torque during turning, limiting excessive vehicle body tilt and improving cornering stability.

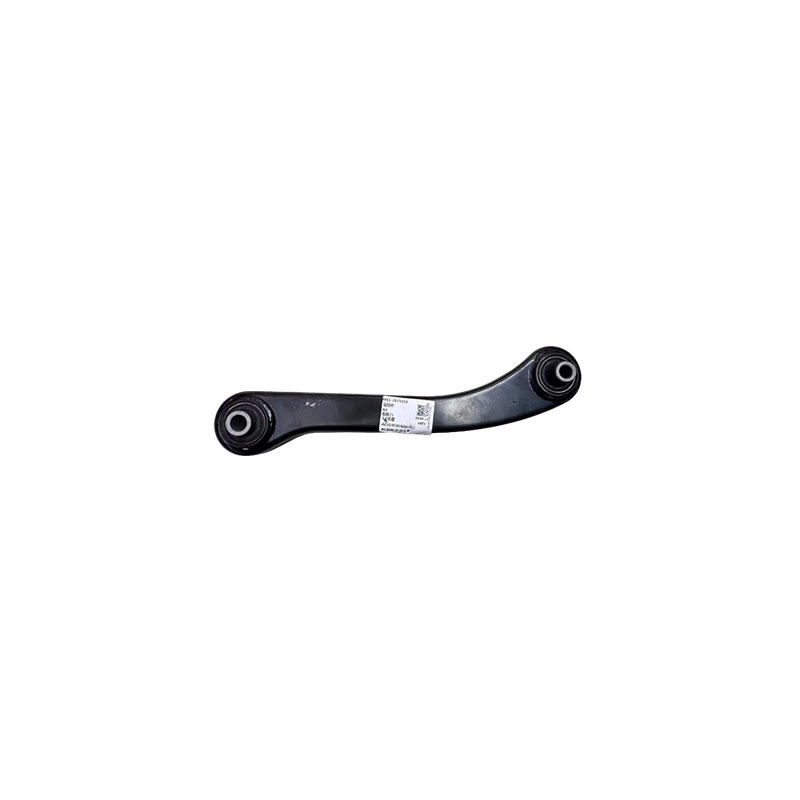

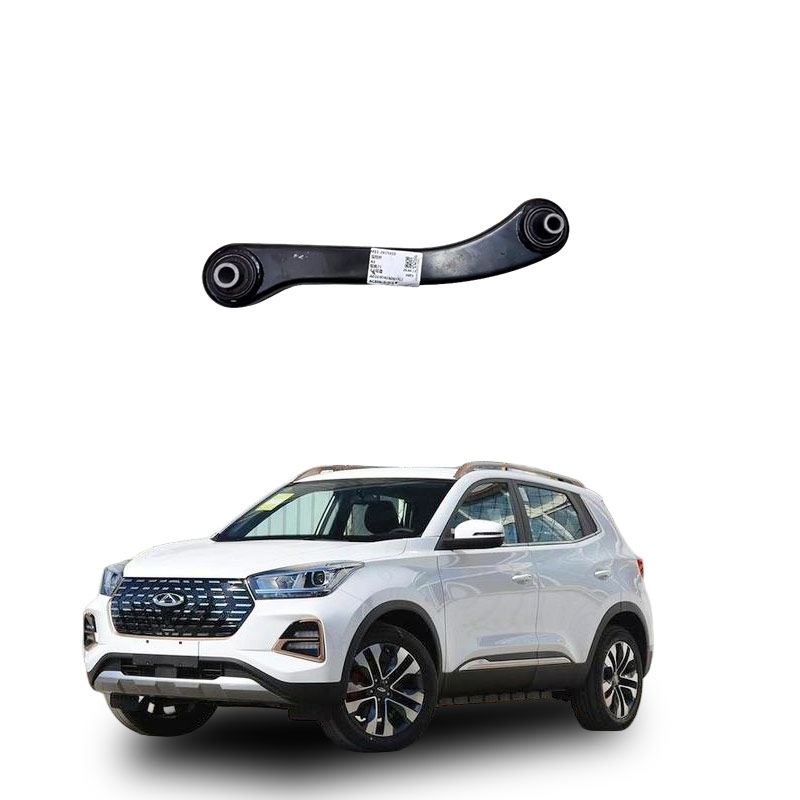

Stabilizing the rear axle position: The longitudinal/vertical tie rods prevent rear axle displacement during acceleration/braking, maintaining the synchronization of rear wheels and straight driving ability.
Absorbing road shock: Some tie rods use bushings or structural design to buffer vibrations, improving passenger comfort.
Other important functions
Protecting the suspension system: Absorbing impact forces during collisions or bumps, reducing direct damage to suspension components.
Enhancing chassis rigidity: Improving the torsional stiffness of the entire vehicle, enhancing handling limits and collision safety.
Maintenance tips: The ball joint and dust cover are wear-prone parts. It is recommended to check the ball joint gap and the condition of the dust cover every 20,000 kilometers. If the joint is loose, there is abnormal noise, or the dust cover is damaged, it should be replaced promptly. It is also necessary to perform a four-wheel alignment to ensure driving safety.
