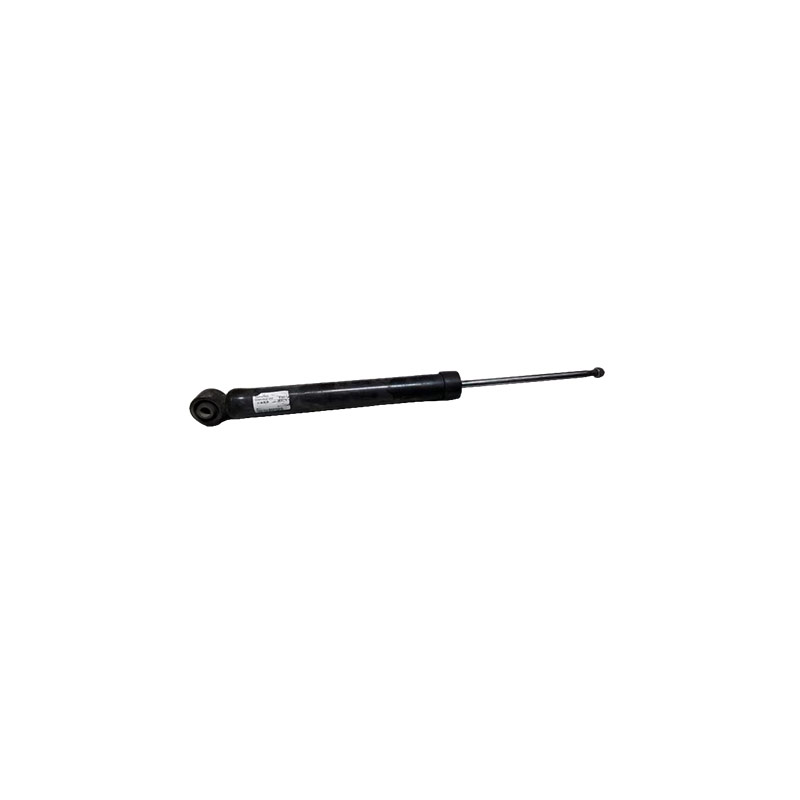

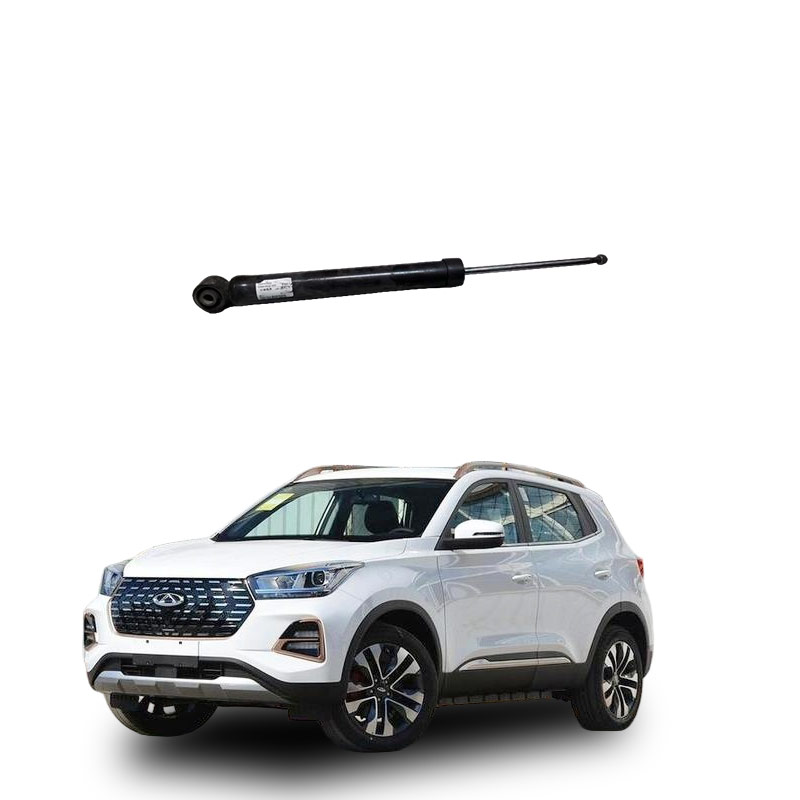

The function of the car rear shock absorber assembly
The rear shock absorber assembly is a key component in the vehicle's rear suspension system. Its functions go far beyond simple "damping". According to authoritative public information, its core functions can be summarized as follows:
Core Functions
Suppressing spring rebound oscillation: When the vehicle passes over bumpy road surfaces, the spring absorbs impact energy and undergoes compression and rebound. The rear shock absorber assembly uses hydraulic damping to control the back-and-forth movement of the spring, preventing the vehicle body from continuously bouncing or "swaying".
Maintaining tire adhesion to the ground: Ensuring that the wheels always remain tightly attached to the ground, enhancing grip, thereby improving braking stability, steering control, and safety at high speeds.
Improving ride comfort and handling stability: Effectively absorbing and attenuating the impact from the road surface, reducing vibrations and noises transmitted to the vehicle body, making the ride more stable; at the same time, suppressing undesirable post-curve roll, sudden braking nodding, etc.
Protecting chassis components: Reducing the impact load on the lower arm, ball joint, rubber sleeve, frame, and other suspension and vehicle body structures, delaying aging, reducing abnormal sounds and looseness risks.
Structural Characteristics (Assembly vs. Individual Components)
The rear shock absorber assembly is different from a single shock absorber core. It is an integrated unit, typically including:
Shock absorber body (containing piston, cylinder, damping valve)
Spring (for some models)
Upper and lower supports
Dust cover, buffer block, rubber sleeve
Pre-installed fastening components
This integrated design not only performs the damping function but also often serves as a suspension pillar, participating in force transmission and guidance.
Failure Indicators (Signals for Replacement)
If the following phenomena occur, it may indicate that the rear shock absorber assembly is aging or failing:
Repeated bouncing of the vehicle body when passing over speed bumps or potholes (“sailing sensation”)
明显 drifting at high speed， significant side-slip during lane change
Vehicle rear sinking (nodding) or starting up with a head-up
Abnormal "clunking" or "thud" sounds from the chassis
Abnormal tire wear
Leaking shock absorber cylinder， deformation of appearance
Unequal height on the left and right sides of the vehicle
Recommendations： The rear shock absorber assembly is an aging component. Even if there is no obvious oil leakage， it is recommended to inspect or replace it after 6-80，000 kilometers or 5 years of use， especially for vehicles that frequently travel on rough roads， at high speeds， or in mountainous areas. When replacing， it should be done in pairs (left and right are the same)， and the matching rubber sleeves and dust covers should also be inspected or replaced simultaneously. Before replacing the front wheel assembly， a four-wheel alignment should be performed.
The failure of the rear shock absorber assembly can significantly affect driving comfort and safety. According to the latest public information (as of May 2026)， its typical manifestations and handling suggestions are as follows：
Main Failure Manifestations
Leaking oil： Oil stains， sludge， or dripping traces on the shock absorber shell indicate internal hydraulic oil leakage， and the damping function is basically lost .
Abnormal noise：
When passing over speed bumps or potholes， emits low-pitched "thump" or "bang" sounds (damping failure)；
There is a "clicking" sound during steering or low-speed driving (possibly due to damage to the top rubber or flat bearing).
Abnormal vehicle posture：
The bouncing sensation is enhanced： After passing over speed bumps， the rear of the vehicle is noticeably "jumps" or "bounces"， with obvious aftershocks (repeated bouncing more than 3 times)；
The side-slip increases： During turning， the vehicle body tilts severely， prone to drifting at high speed ；
Braking nodding： The front of the vehicle sinks more during emergency braking， and the braking distance may be prolonged .
Abnormal temperature： After driving on rough roads for 10 kilometers， if the shock absorber shell is cold to the touch， it has failed (normally it should be warm).
Abnormal tire wear： The rear wheel shows unilateral wear， wave-shaped wear ("chewing the tire").
Recommendation for Handling
Do not rush to replace the assembly：
If it is only the aging of the oil seal and the damping force is normal， consider professional maintenance (such as cold pressing repair， replacement of the oil seal， etc.)， which is much cheaper than replacing the assembly . Prioritize professional diagnosis:
It is recommended to visit a repair shop equipped with original factory-level shock absorber testing equipment to measure the damping force curve and confirm the actual condition.
Maintenance principles:
It is recommended to replace in pairs: even if only one side is damaged, both sides should be replaced simultaneously to avoid performance imbalance.
Choose high-quality components: recommend original factory or well-known brands such as KYB, Sachs, Monno, etc.
Must perform four-wheel alignment: after replacement, the parameters such as front toe and caster need to be corrected to prevent tire wear or deviation.
Daily inspection suggestions:
Monthly visually inspect whether the shock absorber is leaking oil;
Press the rear of the vehicle and release it, observe the number of rebounds (normal is 1-2 times, stable);
Suggested comprehensive inspection of the chassis (including shock absorbers, bushings, rubber sleeves, etc.) every 80,000 kilometers or 5-6 years.
