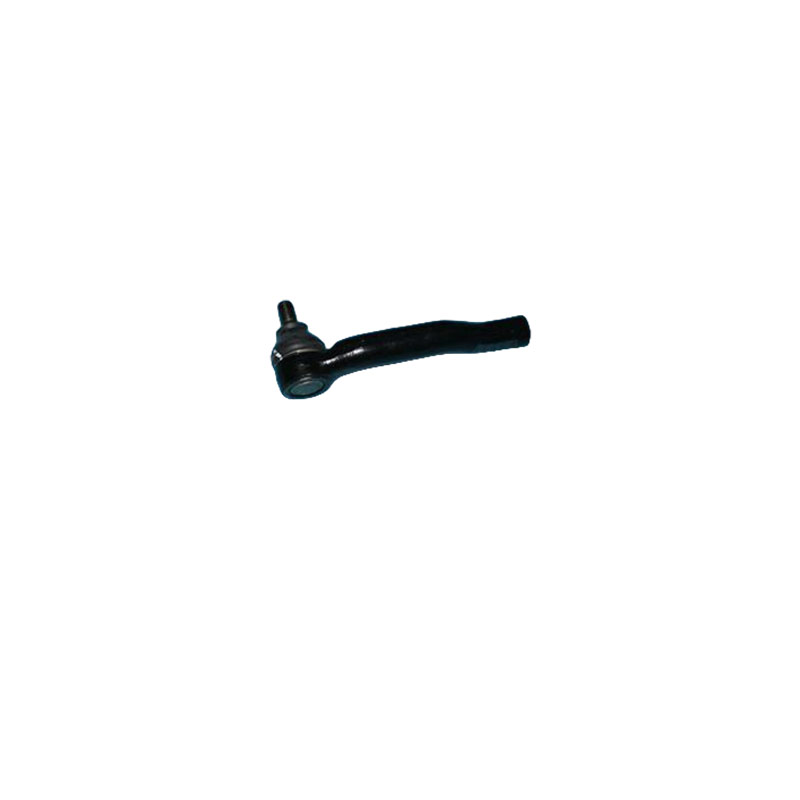

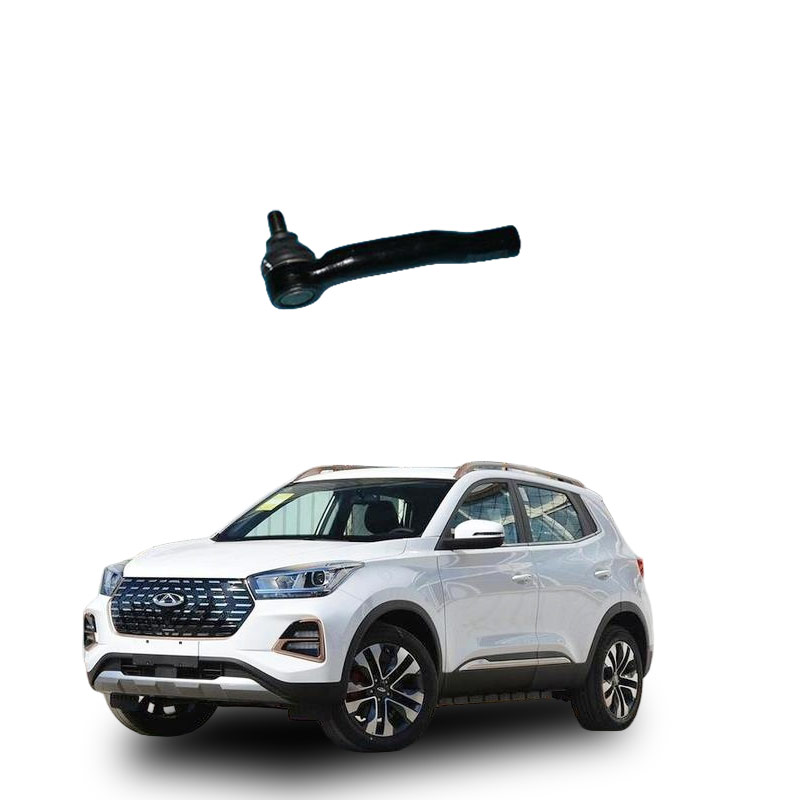

What is the automotive outer ball joint assembly?
The outer ball joint assembly is a crucial connecting component in the vehicle's steering system and is an important part of the chassis. Its main function is to transfer the steering force between the steering tie rod and the steering knuckle (or wheel hub), allowing the wheels to flexibly swing during turns and bounces.
Core functions:
Transmit steering commands: The steering wheel rotation is transmitted through the steering tie rod to the wheels, enabling steering.
Adapt to multi-angle movement: With the ball joint structure, the wheels can move simultaneously in the vertical direction (such as over potholes and bumps) and the horizontal direction (such as during turns).
Absorb road shock: It buffers the vibrations from the road, improving driving comfort and handling stability.
Structural features:
Ball joint design: Composed of a steel ball and a ball socket, the steel ball can rotate freely within the ball socket.
Dust-proof and sealing structure: Equipped with a rubber dust-proof sleeve to prevent dust and sand from entering the interior and seal lubricating grease.
High-strength material: Typically made of high-carbon steel, with the surface treated by passivation or spraying to enhance wear resistance and corrosion resistance.
Common type distinctions:
Outer ball joint: Connects the steering cross tie rod and the steering knuckle, located at the end of the steering system.
Inner ball joint: Connects the steering gear to the steering tie rod, located near the steering wheel.
Both work independently but cooperate together to ensure precise steering response.
Fault manifestations (requiring timely inspection or replacement):
The chassis emits a "clack-clack" noise (especially when passing over)；
The steering wheel is loose and has excessive free play (free movement)；
The vehicle veers off course， or tires wear abnormally；
There is a sluggish or shaking sensation when steering at low speeds.
Maintenance suggestions：
Check once every 30，000 - 50，000 kilometers， especially for vehicles that frequently travel on rough roads.
When the dust-proof sleeve is damaged， lubricating grease leaks， or the rotation gap is significant， it should be replaced immediately.
After replacement， a four-wheel alignment must be performed to restore precise control.
Although the outer ball joint is small， it is a core component ensuring steering safety. Its failure may cause the wheels to lose control. It is essential to pay attention to daily inspections and timely replacements.
