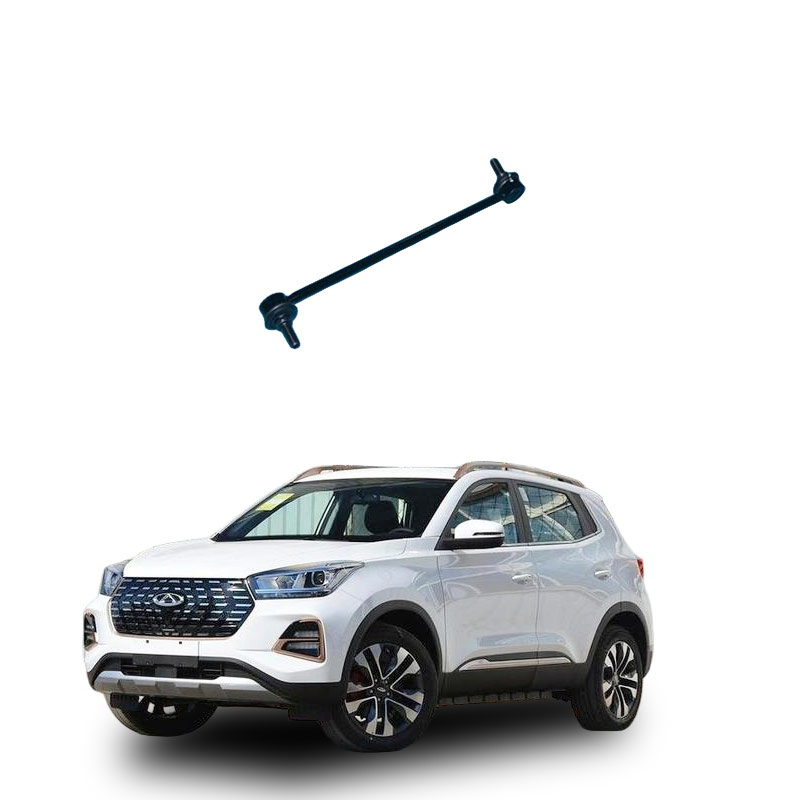

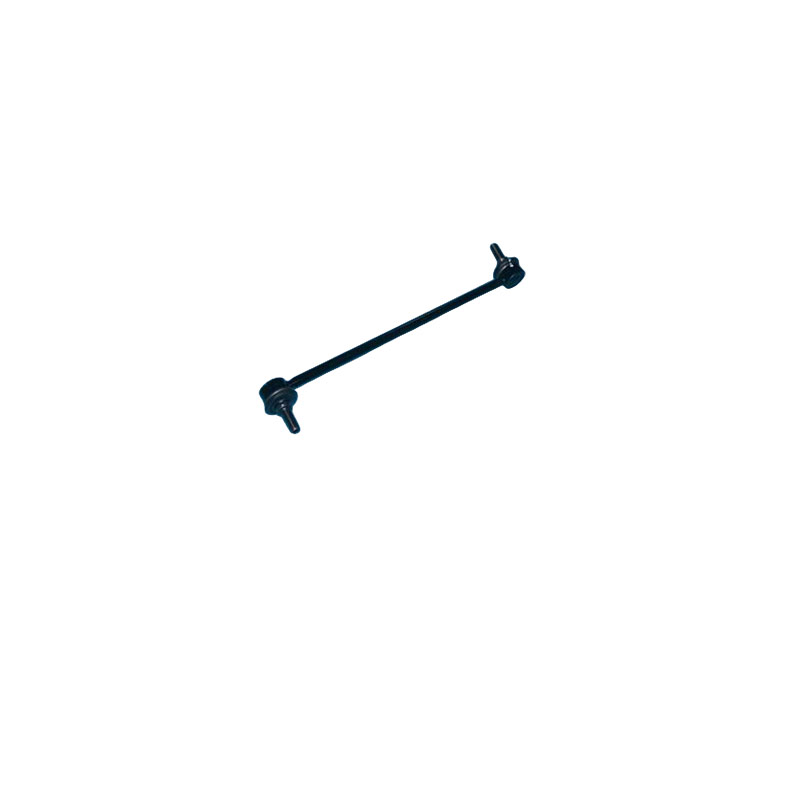

What is the front connecting rod assembly of a car?
The front connection rod assembly is a key component in the vehicle's front suspension system, mainly used to connect the wheels to the body (or sub-frame). It transmits forces and movements during driving, and absorbs road shocks to ensure the vehicle's handling stability, ride comfort, and safety.
According to public information, its main features and functions are as follows:
Structural composition: It usually consists of two or four connecting rods, a ball joint pin, shock absorbers, and bolts, nuts, and other fasteners. One end of the connecting rod is connected to the axle, and the other end is connected to the hub. It achieves rotational motion through the ball joint pin, allowing the wheels to bounce up and down.
Function and role:
Supports the suspension system;
Absorbs road vibrations;
Maintains tire contact with the ground, enhancing grip;
Improves steering response and driving stability .
Common application scenarios: In models like Changan Yidong, the front connection rod assembly often produces abnormal sounds due to excessive clearance caused by long-term bumpy road conditions, requiring regular inspection or replacement .
Note: In some materials, "connecting rod assembly" refers to the component inside the engine that connects the piston to the crankshaft, but "front connection rod assembly" specifically refers to the connecting rod component in the front suspension system. Their functions and positions are completely different and should not be confused.
The front connection rod assembly is a key component in the vehicle's front suspension system. Its functions may vary depending on the specific type and installation position, but can generally be summarized as the following categories:
Main functions
Enhance handling stability: During turns or high-speed cornering, it suppresses body roll, maintains body balance, and improves steering response and driving stability .
Connection and force transmission: Connects the lateral stabilizer bar to the lower control arm (or shock absorber), transferring the force from the outer wheel to the inner wheel to achieve balanced body force .
Enhance chassis rigidity: Reduces body distortion and deformation during bumps or sharp turns, improving overall structural rigidity .
Maintain wheel alignment: Prevents the deviation of parameters such as front wheel toe-in and caster due to force, ensuring tire contact and tracking ability .
Buffer and energy absorption: Some connecting rods absorb road shocks through rubber sleeves or ball joints, improving ride comfort .
Common types and sub-functions
Front stabilizer bar connecting rod (balance bar connecting rod)
Connects the lateral stabilizer bar to the control arm, mainly suppressing roll .
Front crossbar (steering crossbar)
Transmits steering force, controls front wheel toe-in, ensuring synchronous movement of both wheels .
Front suspension connecting rod (in multi-link structure)
Supports the wheels, transmits longitudinal/vertical forces, optimizing suspension geometry .
Note: Different vehicle models have significant structural differences. For example, the Camry uses a McPherson front suspension, which does not have a traditional "front axle connection rod", and its stability functions are achieved by stabilizer bars and connecting rods .
Damage consequences
If the front connection rod assembly is damaged, it may result in:
Increased side roll during turns, reduced handling confidence;
Chassis abnormal sounds, steering wheel shaking;
Tire uneven wear, misalignment;
In extreme cases, it may affect driving safety .
If you need to further confirm the connection rod structure of a specific vehicle model, it is recommended to consult the vehicle maintenance manual or a professional repair facility.
