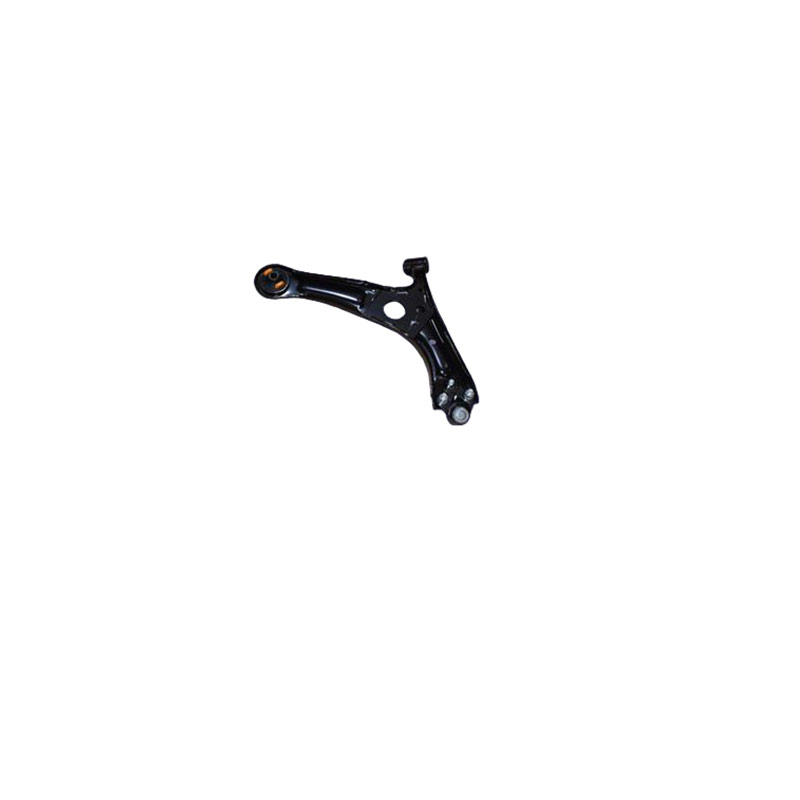

The function of the front control arm assembly of the car
The front control arm assembly is a key component of the chassis suspension system, connecting the wheels (through the steering knuckle) to the vehicle body (or sub-frame). It performs multiple core functions during vehicle operation. According to authoritative public information, its functions can be summarized as follows:
Core Function
Precise Constraint of Wheel Movement Trajectory
The control arm, through the combination of ball joints and rubber bushings, strictly limits the irregular movements of the wheels in the longitudinal, lateral, and vertical directions, ensuring that the wheels maintain the preset parameters (such as camber angle, toe-in angle) during steering, acceleration, braking, or bumps, with deviations typically controlled within ±0.5°, thereby ensuring handling stability and driving safety.
Efficient Transmission of Driving Forces
The vertical force (vehicle weight), lateral force (centrifugal force during turning), and longitudinal force (acceleration/braking force) borne by the wheels need to be transmitted to the vehicle body through the control arm. High-quality control arms can withstand up to 3 times the vehicle weight in impact force. Some high-performance designs can even withstand 15 times the vehicle weight in lateral force.
Optimize Tire Ground Contact State and Grip Performance
By maintaining the optimal ground contact posture of the wheels, the normal state of the control arm can increase the tire contact area by approximately 15%, reduce uneven wear, and prevent "tire eating" phenomena.
Buffer Road Impact and Filter Vibration
The rubber or hydraulic bushings at the connection point between the control arm and the vehicle body can absorb 60%–70% of road impact, significantly improving ride comfort. For example, Chery's latest hydraulic bushing technology has increased the shock absorption effect by 40%.
Maintain Vehicle Dynamic Balance
Working in conjunction with shock absorbers and springs, it suppresses "nodding" during emergency braking and "lifting" during sudden acceleration, preventing excessive vehicle shaking.
Structural and Type Differences
Different suspension systems use different forms of control arms:
McPherson Suspension: Usually, there is only one L-shaped lower control arm;
Double Wishbone Suspension: Equipped with two A-shaped upper and lower control arms;
Multi-link Suspension: May contain multiple link-type control arms to achieve more precise wheel control.
In terms of materials, mainstream models use high-strength steel (such as FB780) or aluminum alloy, balancing lightweight and fatigue durability.
Damage Manifestations and Maintenance Suggestions
Common Damage Indicators:
The chassis emits "creaking" or "clattering" sounds;
The steering wheel shakes or the vehicle veers;
Abnormal tire wear (especially unilateral wear);
The vehicle pitches during cornering.
Suggested Inspection Periods:
Inspect the condition of the bushings and ball joints every 6–8 thousand kilometers;
Under adverse road conditions, it is recommended to inspect every 3 thousand kilometers;
After replacement, a four-wheel alignment must be performed, with an error controlled within ±0.05°.
If the ball joint clearance exceeds 12 millimeters or the bushing crack exceeds 3 millimeters, it should be replaced immediately.
The front control arm assembly is a key component of the suspension system, connecting the wheels to the vehicle body, directly affecting driving stability, handling, and safety. Once it fails, it will cause various obvious symptoms.
Common Fault Manifestations
Vehicle Deviation: When the steering wheel is centered, the vehicle automatically deviates to the left or right, especially at high speeds.
Chassis Noise: When passing over bumps or uneven road surfaces, it emits "clunk", "thud", or "click" sounds, and may have frictional noise during cornering.
Abnormal Tire Wear: Uneven wear on the inner or outer side (commonly known as "tire eating"), or the new tires may wear out severely in a short period of time.
Steering Wheel Shaking or Loose Feel: During high-speed driving, the steering wheel shakes, or the steering feels loose, with inconsistent left and right steering forces.
Brake Deviation: When braking, the vehicle suddenly veers to one side, presenting a high safety risk, and immediate repair is required.
Body stability decreases: During cornering, there is obvious side-slip, and the vehicle feels very shaky, even with a sense of losing control.
Main cause of the fault:
Rubber bushings aging or cracking: Long-term use or harsh road conditions accelerate the aging of rubber parts, resulting in increased gaps.
Ball joint wear or looseness: The dust cover of the ball joint is damaged and gets into mud and water, causing rust and loosening.
Arm body deformation or fracture: Impact with curb stones, potholes, etc. may cause the metal part to bend or fracture.
Corrosion: Long-term driving on damp, muddy or salt-sprayed winter roads accelerates the rusting of metal parts.
Detection suggestions:
Visual inspection: Check if the bushings are cracked or have come out, and if the dust cover of the ball joint is damaged or leaking oil.
Manual shaking test: Raise the vehicle and shake the tires with your hands. If it is obviously loose or you hear abnormal sounds, it may indicate that the bushing or ball joint has worn out.
Professional diagnosis: It is recommended to go to a regular repair shop to use a lift to conduct a comprehensive inspection of the chassis and combine with the four-wheel alignment data to determine if the control arm failure causes abnormal alignment parameters.
Maintenance suggestions:
Mild damage: If it is only the aging of the bushing but not coming out, you can replace the bushing alone (cost about 200–500 yuan). Some professional repair shops support this operation.
Severe damage: If the arm body is deformed, the ball joint is loose or the bushing has come out, it is necessary to replace the entire control arm assembly. Do not rely on repair alone.
After replacement, a four-wheel alignment must be done: The control arm is a key component for alignment. After replacement, it is necessary to re-perform the four-wheel alignment to avoid accelerating tire wear and affecting handling.
Part selection: Prefer original factory parts or well-known brands (such as Vika, TRW, etc.). Avoid using inferior parts that may affect driving safety.
Note: The failure of the front control arm will significantly reduce driving safety, especially in high-speed or emergency avoidance situations, the risk is extremely high. Once the above symptoms occur, it is recommended to repair as soon as possible, do not delay.
