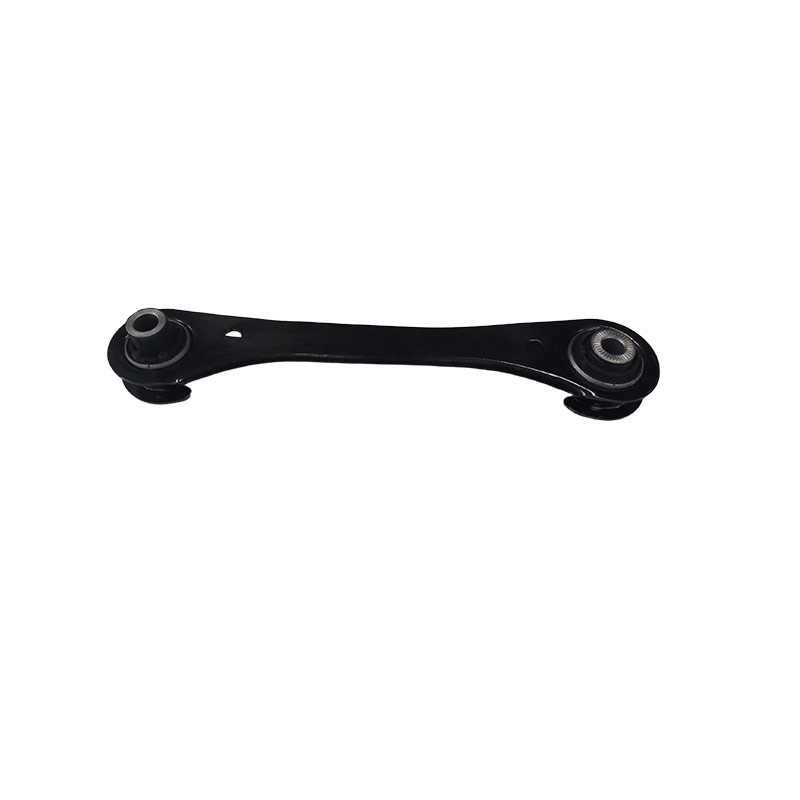

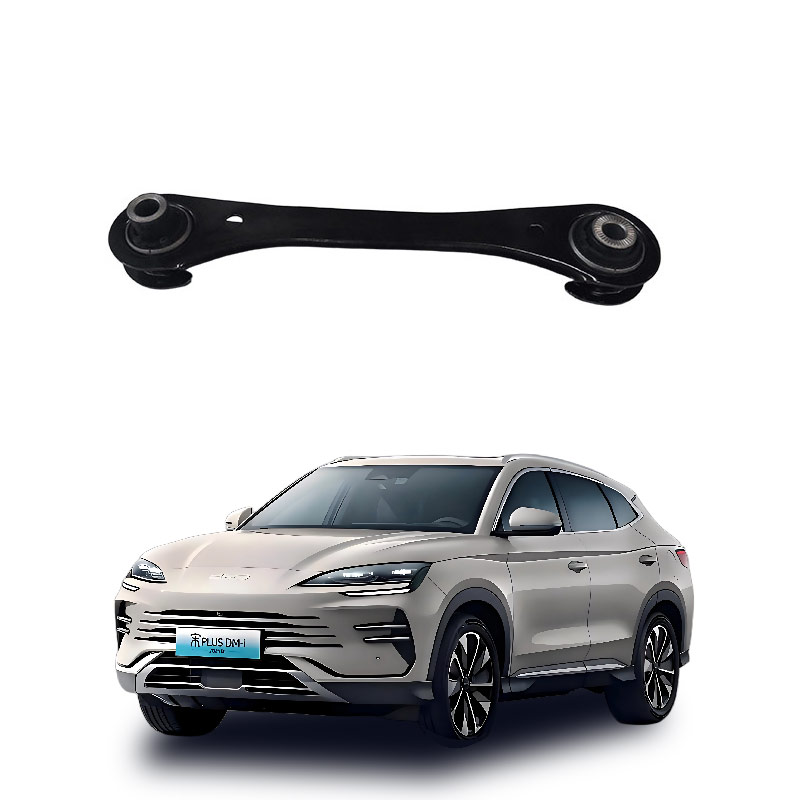

What is the rear suspension control arm assembly of a car?
The rear suspension control arm assembly is the core guiding and force-transmitting component that connects the rear wheel steering joint to the vehicle body (or sub-frame). It typically consists of the control arm body, rubber/hydraulic bushings, ball joints, and fasteners. Its functions include constraining the wheel movement trajectory, transmitting longitudinal/vertical/and lateral forces, and maintaining the positioning parameters.
Core Definition and Composition
Essentially: The assembly form of "suspension arms" in the suspension system, not only referring to metal rods, but also the complete interchangeable unit that integrates key components such as the arm body, buffer bushings, and ball joints after pre-assembly.
Main Components:
Control Arm Body: Mostly made of high-strength steel stamping or aluminum casting (A-type, L-type, or fork-shaped), responsible for structural support.
Bushings (Rubber Bushings): Located at the vehicle body connection end, absorbing vibrations through rubber elasticity deformation and allowing for slight deformation to isolate noise.
Ball Joint Pin: Located at the wheel connection end, enabling multi-angle rotation of the steering joint to accommodate wheel up-and-down movement.
Fasteners: Special bolts/nuts, ensuring installation torque and geometric accuracy.
Position Characteristics: Specifically for the rear axle application, it may include multiple arms with different functions (such as longitudinal arms, lateral arms, and thrust rods) in a multi-link suspension, jointly determining the dynamic posture of the rear wheels.
Core Functions and Roles
Trajectory Constraint: Forces the wheels to move along the preset arc, preventing longitudinal jolts during acceleration/braking and lateral displacement during cornering.
Force Transmission: Transmits road impact, driving force, braking force, and lateral force from the wheels precisely to the vehicle frame.
Position Maintenance: Ensures that key parameters such as the rear wheel camber and toe-in remain stable under dynamic conditions, maintaining tire contact area and handling stability.
Shock Absorption Comfort: Utilizes rubber/hydraulic bushings to soften high-frequency vibrations and improve NVH (Noise, Vibration, and Harshness) performance.
Fault Symptoms and Maintenance Logic
Typical Symptoms: "Clunking" noise when passing over potholes, wheel shake at high speeds, vehicle drift, abnormal wear on the inner side of the rear wheels, and body swaying during turns.
Failure Causes: Mainly due to aging and cracking of the bushings (loss of elasticity) or wear and looseness of the ball joint pins (creating gaps), resulting in metal impact or geometric misalignment.
Replacement Strategy: During maintenance, it is generally recommended to replace the assembly rather than just the rubber bushings, as installing a new bushing requires specialized tools and it is difficult to ensure the original factory vulcanization process and concentricity. Replacing the assembly can restore geometric accuracy and sealing at one time.
This component directly determines the handling limits and ride quality of the vehicle's rear axle and is a key component of the chassis safety. If there is significant looseness or deformation, it must be repaired immediately.
The rear suspension control arm assembly is the core guiding and force-transmitting component of the suspension system, connecting the wheels to the vehicle body, constraining the wheel movement trajectory, transmitting longitudinal/vertical/and lateral forces, maintaining positioning parameters, and buffering vibrations. Connection Node: One end is hinged to the steering knuckle through a ball joint (wheel end), and the other end is elastically connected to the chassis frame through a bushing (body end), achieving a balance of rigidity and flexibility.
Assembly Concept: The "control arm assembly" usually consists of the arm body, the pressed bushing, and the ball joint component; due to the aging of the bushing involving the vulcanization process and assembly accuracy, it is often recommended to replace the entire assembly for safety redundancy during maintenance.
The condition of this component directly determines the control accuracy of the rear axle of the vehicle, the stability of the brakes, and the abnormal noise of the chassis. If there is deformation, cracks, or failure of the bushing, it will cause uneven tire wear, deviation, and oscillation during driving.
