What is the assembly of the front shock absorber mounting on the car?
The front shock absorber mount assembly (commonly known as the "top rubber assembly") is a key component that connects the shock absorber to the vehicle body, supports the spring, and allows for steering rotation. It is mainly composed of a flat bearing, rubber top rubber (buffer pad), and spring mount (spring seat).
Core Components and Functions
Flat Bearing (Pressure Bearing): Located inside or below the top rubber, it supports the axial pressure of the spring, allowing the shock absorber to rotate smoothly with the steering wheel and ensuring smooth steering.
Rubber Top Rubber (Buffer Pad): Wrapped around a metal frame, it serves to buffer vibrations, isolate noise, and prevent hard contact with metal, protecting the vehicle mounting points.

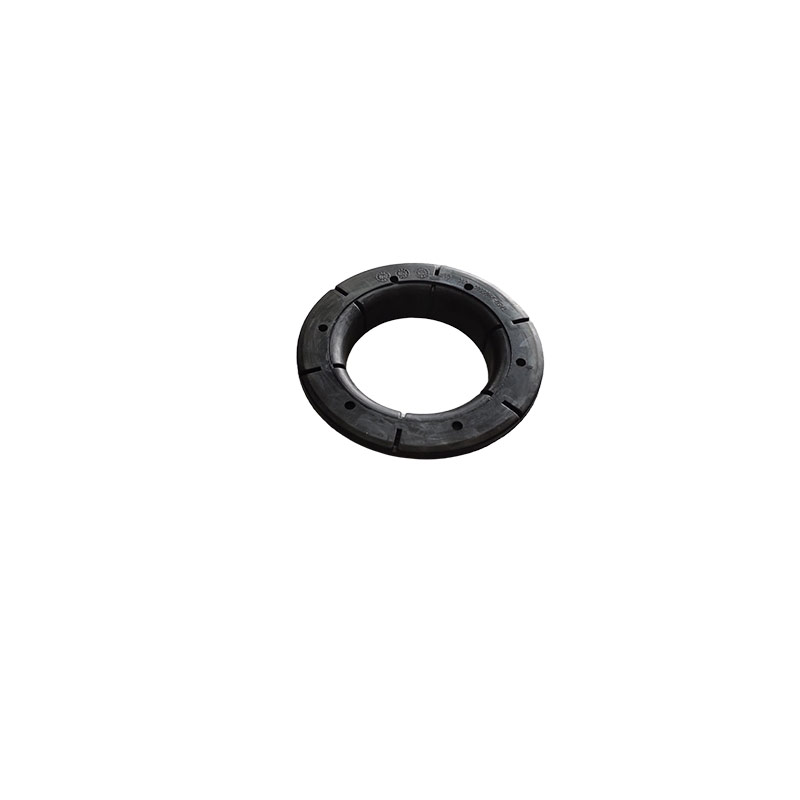

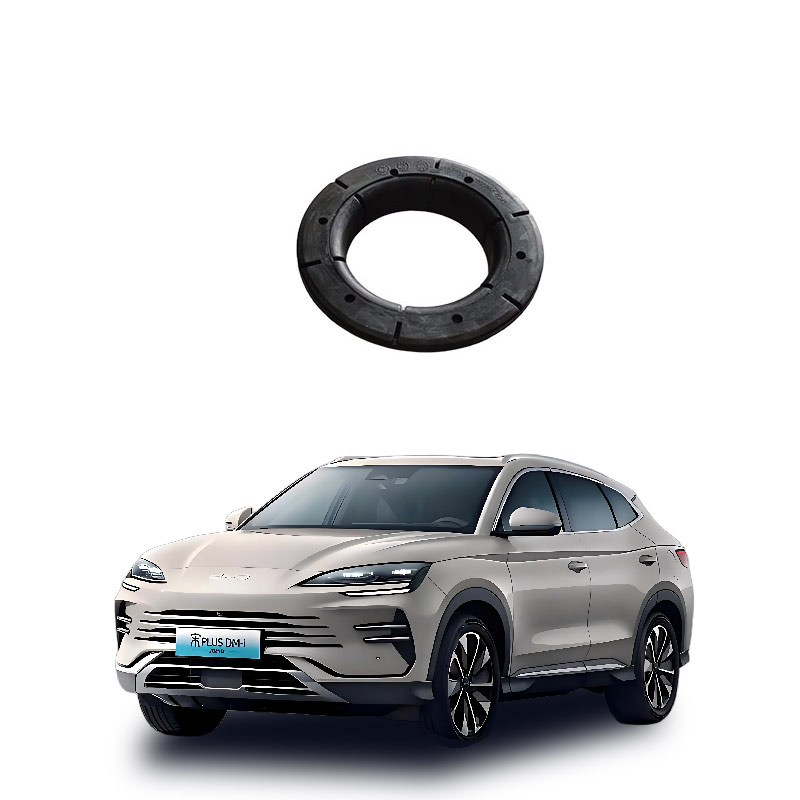

Spring Mount (Spring Seat): It fixes the top position of the helical spring, cooperating with the lower spring pad to maintain the preload and geometric angle of the spring.
Dust/Buffer Accessories: Some designs include dust covers or limit buffer blocks to prevent foreign objects from entering and to prevent impact at the end of the stroke.
Common Fault Manifestations
When this assembly is aged or damaged, typical symptoms include: a "clunking" noise from the front when passing over speed bumps or bumpy roads, steering shake, heavy steering or a feeling of sticking, and a decrease in the vehicle's stability when driving straight. Notes for Attention
During maintenance, it is generally recommended to replace the entire assembly (bearing + top rubber + seat), as replacing the bearing alone can easily lead to seal failure or improper installation.
Different vehicle models have significant structural differences (such as the specific structure of the McPherson suspension), and they need to be strictly matched with the original factory specifications. They cannot be used interchangeably.
The core function of the upper seat of the front shock absorber (including the top rubber, flat bearing, spring seat, etc.) is to connect the vehicle body and the suspension, absorb shock and noise, support the positioning of the spring, and allow the steering to rotate.
Core Function Analysis
Buffering and shock absorption and sound insulation: The top rubber (rubber component) absorbs the high-frequency impact when the spring compresses and rebounds, preventing hard collisions between metals and generating "clunking" sounds, significantly reducing road noise and improving smoothness.
Steering rotation support: The built-in flat bearing enables the shock absorber assembly to flexibly rotate with the vehicle wheel, avoiding spring distortion and ensuring a smooth and unobstructed steering without any jamming or abnormal noise.
Spring positioning and force distribution: The spring seat fixes the position of the spring up and down, preventing wear or detachment, and evenly transferring the load of the vehicle body to the top of the shock tower.
Structural connection and fixation: As the rigid connection point between the suspension system and the vehicle tower top, it bears vertical loads and maintains the stability of the suspension geometry.
Common failure manifestations
Abnormal noise: When passing over speed bumps or turning, a "clunk" or "ping" sound is emitted (top rubber aging or bearing damage).
Control abnormality: The steering becomes heavy, the return alignment is poor or there is a tire-wearing phenomenon (bearing jamming causes the spring to twist).
Comfortability decline: The bumps are directly transmitted to the cabin, losing the last soft buffer.
This component is usually recommended to be inspected synchronously with the shock absorber assembly. Generally, it should be replaced when it has been in use for 6-80,000 kilometers or when there is a significant abnormal noise.
Fault core manifestations of the front shock absorber upper seat assembly failure: At rest or at low speed, there is an abnormal noise when turning (clicking/squeaking), a "clunking" impact sound when passing over speed bumps, insufficient vehicle rebound or deviation, heavy steering and slow return alignment, etc. It is necessary to replace the shock absorber assembly (including the spring, upper seat, pressure bearing) in pairs and perform four-wheel alignment.
Core fault phenomena and causes
Noise characteristics: At rest or at low speed, when turning, the top of the front shock absorber emits "clicking", "squeaking" or metal friction sounds (pressure bearing stuck/misaligned); when passing over speed bumps or potholes, a dull "clunking" impact sound is emitted (top rubber pad fracture, spring shift or shock absorber failure).
Control abnormality: When turning, the vehicle body tilts more, has a sinking feeling or becomes unstable; the steering becomes heavy, the return alignment is weak or there is slight deviation.
Driving quality: The shock absorption effect deteriorates, the vehicle body shakes significantly, and the residual vibration from emergency braking is strong; single-sided failure will cause the vehicle to be uneven in height or deviate during driving.
Main causes: Pressure bearing (flat bearing) wear and jamming, top rubber aging and cracking, spring fatigue fracture or deformation, or oil leakage in the shock absorber causing damping failure.
Diagnosis and troubleshooting steps
Listening and locating: At rest while turning, listen for any abnormal noise from the top of the shock absorber; lift the vehicle and turn the steering again. If the noise disappears, it is basically confirmed to be a problem with the pressure bearing or the top rubber.
Visual inspection: Check if there is oil stain on the piston rod of the shock absorber (leakage failure); check if the top rubber of the upper seat has cracks or脱落； observe if the spring has broken or has signs of end face tilt and wear.
Pressing test： Press down on one corner of the vehicle and release. Normally， it should quickly rebound and stop； if there is repeated oscillation or weak rebound， it indicates that the shock absorber or spring is failed.
Road test verification： Pass over speed bumps at low speed to feel if there is a unilateral impact sensation or steering vibration； pay attention to if the front of the vehicle shakes or jolts when braking.
Maintenance plan and precautions Replacement Principle: The shock absorber assembly (including spring, upper seat, and bearing) must be replaced in pairs from left to right. It is strictly prohibited to replace only one side to prevent inconsistent damping/handling on the left and right sides, which may cause steering drift or loss of control.
Operation Specifications: When disassembling, use a dedicated spring compression tool. It is strictly forbidden to directly disassemble an uncompressed spring to prevent injury from the spring's ejection. After installation, the bolts must be tightened according to the standard torque.
Subsequent Calibration: After replacement, a four-wheel alignment must be performed to correct the tire wear and steering drift caused by the geometric changes in the suspension.
Accessory Selection: It is recommended to choose original factory or reputable brand assemblies to avoid the problem of abnormal noise or safety hazards caused by inferior parts.
Such faults involve driving safety and handling stability. Once the symptoms are confirmed, please go to a professional repair shop or 4S store for handling as soon as possible. Do not drive with faults.
