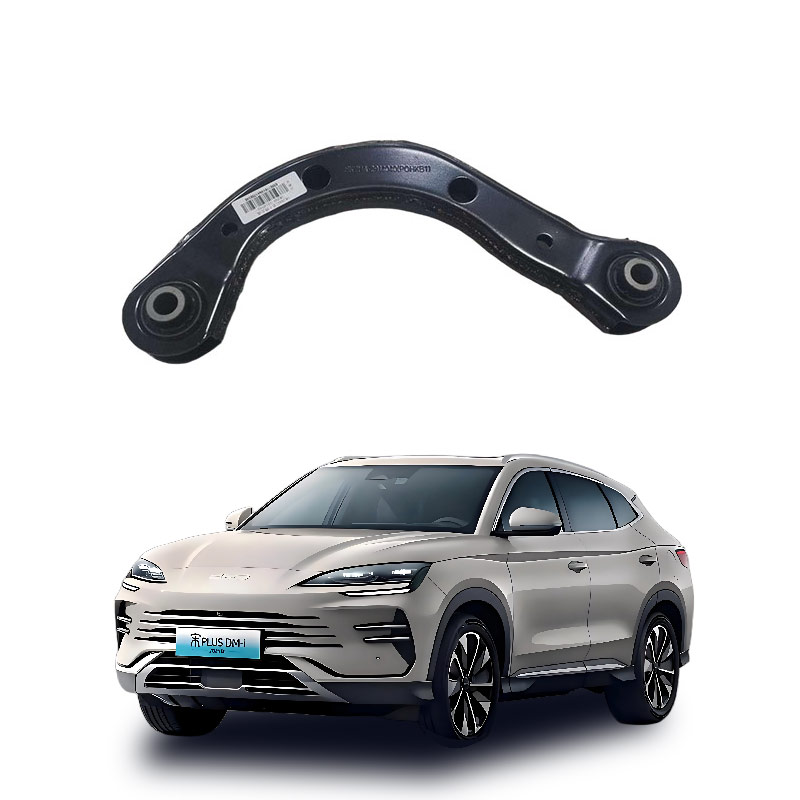

What is the rear suspension upper arm assembly of a car?
The upper arm assembly of the car's rear suspension is the upper part of the guiding and force-transmitting component that connects the vehicle body to the rear wheel steering joint in the independent suspension system. Its core function is to constrain the wheel's movement trajectory, withstand multi-directional impact forces, and maintain the tire's contact with the ground.
Core Definition and Composition
Essentially: "Upper Control Arm", it belongs to the key connecting rod of the suspension guiding mechanism and is often sold as a complete assembly together with bushings and ball joints. Hence, it is called "assembly".

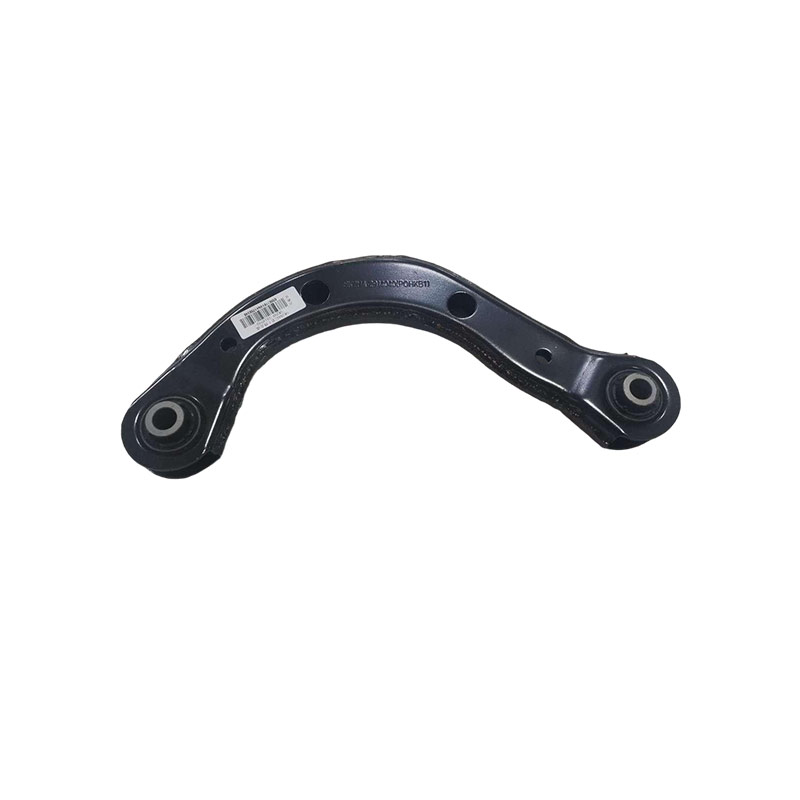

Structure: It is usually composed of a high-strength steel or aluminum arm body, rubber/hydraulic bushings at both ends (connecting the vehicle body/fork chassis), and a ball joint connection point (connecting the steering joint).
Location: It is located above the rear wheel suspension, commonly seen in multi-link, double wishbone, etc. independent suspension structures. The McPherson rear suspension usually has no upper arm.
Main Functions
Trajectory Constraint: Limits the changes in the wheel's camber and caster during vertical movement to prevent abnormal wheel oscillation.
Force Transmission: Transfers longitudinal and lateral forces generated by braking, acceleration, and cornering from the wheels to the vehicle body.
Posture Maintenance: Collaborates with shock absorbers and springs to ensure that the tires remain in contact with the ground during bumps, improving handling stability and ride comfort.
Fault Characteristics and Lifespan
Common Failures: Aging and cracking of rubber bushings lead to an increase in clearance (resulting in abnormal bumping sounds and tail wagging), or deformation of the arm body due to impact (causing deviation and tire uneven wear).
Reference Lifespan: Approximately 8–12 kilometers under normal road conditions. If there is a sense of chassis looseness, it is necessary to check and replace it promptly.
Car Rear Suspension Upper Arm Assembly is a key guiding and force-transmitting component in the independent suspension system (such as multi-link, double wishbone). Its core functions are to constrain the wheel's movement trajectory, control the changes in camber, resist the side-torsion moment, and transfer longitudinal/sideways forces, aiming to balance handling stability and ride comfort.
Core Functions
Guidance and positioning control: Works in conjunction with the lower arm and other connecting rods to precisely limit the vertical movement of the wheels, actively adjusting the camber and caster angles during the movement to maximize the tire contact area.
Anti-side-torsion support: During vehicle cornering or lane changing, it withstands and resists the force generated by the vehicle's side roll, maintaining the stability of the vehicle's posture, and enhancing the cornering limit.
Force transmission: Effectively transmits the longitudinal force (acceleration/braking) and lateral force (steering/wind load) received by the wheels to the vehicle body or sub-frame, ensuring the response of power and braking stability.
Shock absorption synergy: Absorbs high-frequency vibrations through the connection points of the rubber bushings, and optimizes the filtering effect of road impact with springs and shock absorbers.
Structure and Working Characteristics
Common Forms: Commonly seen in multi-link rear suspensions (such as four-link, five-link) or double wishbone structures, usually in an A-shaped, L-shaped, or straight rod form, with high-strength steel or aluminum as the material.
Force Logic: When the wheels move up and down, the upper arm and lower arm form a geometric constraint, determining the "virtual kingpin" position and the changing rules of positioning parameters; the upper arm often focuses more on lateral stiffness and side-torsion center control.
Failure Impact: If the upper arm deforms, the bushings age, or the ball joint is loose, it will cause four-wheel alignment errors, tire uneven wear, high-speed deviation, chassis abnormal sounds, and handling instability.
Note: Not all rear suspensions have an independent "upper arm"; the McPherson rear suspension usually only has a lower arm; this component is mainly found in multi-link, double wishbone, and some H-arm multi-link structures.
