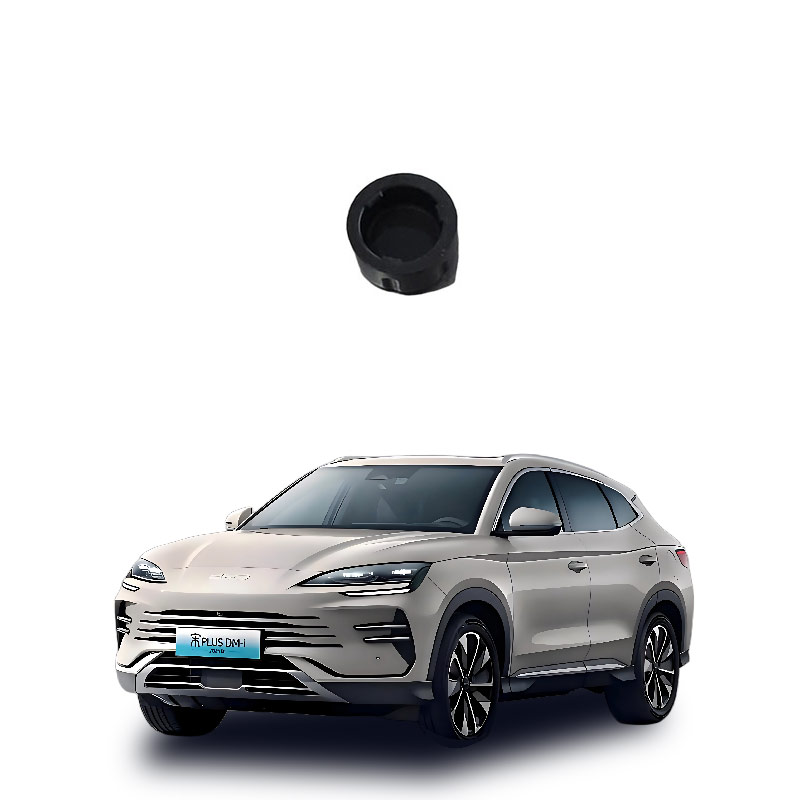

What is the shock-absorbing rubber sleeve for the hinge limit pin of the car front cover?
The shock-absorbing rubber sleeve for the hinge limit pin of the car's front cover is an elastic buffer component installed on the hinge limit pin of the engine cover. Its main function is to absorb the impact energy when the cover opens and closes, prevent metal-to-metal collisions from causing abnormal sounds, protect the hinge structure, and improve NVH performance.
Core Definition and Function
Essentially: A tubular/dome-shaped component made of rubber (or rubber-metal composite), placed or pressed on the top of the hinge limit pin or the corresponding contact surface.
Main Functions:
Buffer and energy absorption: Absorbs the impact force at the moment the engine cover is closed, preventing metal-to-metal direct collision from generating a "clunking" sound.
Shock absorption and noise reduction: Reduces resonance and abnormal sounds caused by road vibrations transmitted to the engine cover during driving, improving the quietness.
Structural protection: Reduces fatigue damage to the hinge pin shaft and the metal connection points due to repeated impacts, extending the lifespan.
Limitation assistance: Cooperates with the limit pin to determine the final position when the engine cover is fully closed, providing a moderate rebound sensation.
Common Faults and Manifestations
Aging failure: The rubber hardens, cracks, decays, or falls off, resulting in a brittle sound when the engine cover closes and an increased vibration sensation.
Height anomaly: The rubber sleeve is permanently deformed or lost, causing the engine cover to close too high (wide gap) or too low (indentation/ difficult to close).
Troubleshooting Suggestions: If there is an abnormal sound when closing the engine cover or uneven gaps, check first if the rubber sleeve is missing or hardened. Usually, a pair replacement is required to maintain balance.
This component is different from the shock-absorbing rubber sleeve of the suspension system and is specifically for the engine compartment cover opening and closing mechanism. Although it is small in size, it has a significant impact on the vehicle's overall feel.
The core function of the shock-absorbing rubber sleeve for the hinge limit pin of the car's front cover is to buffer the opening and closing impact, limit the maximum opening angle, eliminate metal abnormal sounds, and protect the hinge structure.
Core Functions
Buffer and shock absorption: Utilizes the elasticity of rubber to absorb the impact force when the engine cover reaches its extreme position or closes, preventing damage to the hinge or the vehicle's body panel from hard collisions.
Angle limitation: Works in conjunction with the limit pin structure to physically prevent the engine cover from over-tilting, ensuring a fixed and safe opening angle and avoiding blocking the driver's view or touching the windshield/wiper.
Noise reduction and quietness: Isolates the "clunking" sound caused by direct friction or impact between metals, improving the feel and quietness when opening and closing the cover.
Dust and corrosion prevention: Wraps the hinge pin connection point to reduce wear and rust caused by sand and rain intrusion, extending the lifespan of the hinge.
Failure Consequences
If the rubber sleeve ages, hardens, or falls off, it will cause obvious metal impact noise when the engine cover is opened or closed, unstable opening angle (such as automatic fallback or inability to fix), and in the long term, may cause wear and deformation of the hinge pin shaft or even fracture, posing a safety hazard of the engine cover unexpectedly bouncing during driving.
Note: Public information is mostly concentrated on "door limiters" or "suspension shock absorbers" rubber sleeves, and there are fewer specific descriptions for "front cover hinge limit pin rubber sleeve". The above conclusions are based on the general principles of automotive mechanical structure and the functional derivation of similar hinge limit components. Impact damage: When the hood is closed, there is a lack of buffering, causing the edges of the hood, the latch, or the body panel sheet metal to suffer a hard impact. Over time, this can lead to paint damage or structural deformation.
Safety hazard: Severe aging and fracture may cause the hood to unexpectedly pop up and obstruct the view during driving, or failure to close tightly may trigger flying risks.
Causes of failure
Natural aging: Rubber is exposed to high temperatures, ultraviolet rays, and rain for a long time, resulting in hardening, cracking, or powdering.
Mechanical wear: Frequent opening and closing cause friction between the limit pin and the rubber sleeve, with the gap increasing until it detaches.
External force damage: Non-normal force pressing of the hood or accident impact causing the rubber sleeve to tear or deform.
Suggested treatment
Check and confirm: Manually open and close the hood to observe if the rubber at the limit pin is missing or cracked; try pushing the hood to the half-open position to test if it will automatically slide down.
Maintenance plan: This component is usually not repairable and must be replaced. You can purchase the limit pin rubber sleeve separately (if the design allows for pressing in for replacement) or directly replace the hinge limit assembly.
Construction note: During replacement, support the hood to prevent it from falling, adjust the limit height to ensure the hood closes smoothly and without abnormal noise; for some models, lubricate the hinge shaft.
Cost reference: The cost of the individual rubber sleeve material is relatively low (several dozen yuan), while the cost of replacing the hinge assembly is higher (hundreds to several thousand yuan), and the labor cost depends on the difficulty of disassembly and assembly.
