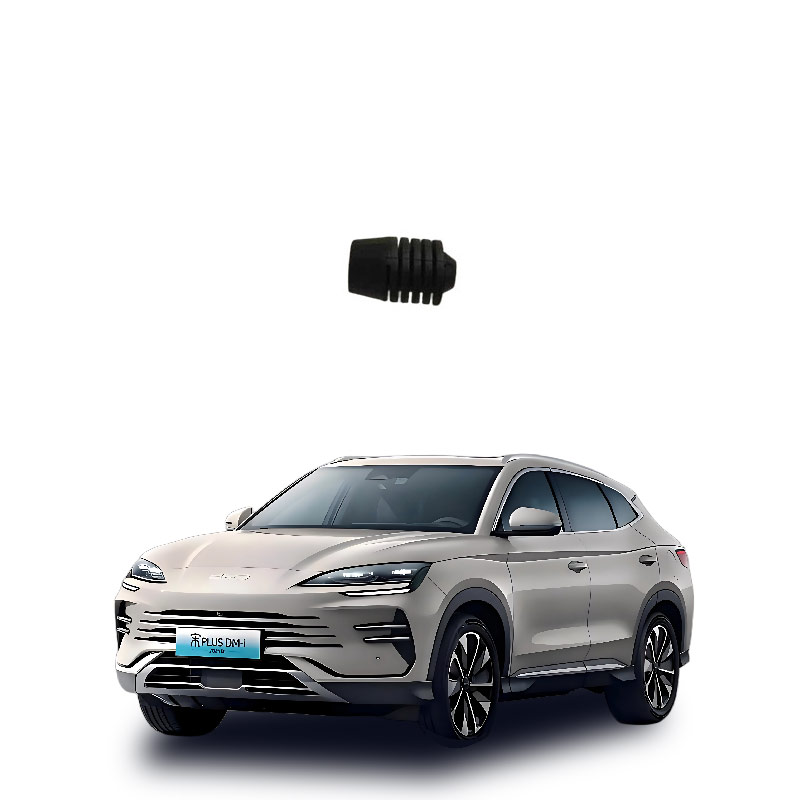

What is the front cabin buffer block of a car?
The front cabin buffer block in a car is an elastic component installed between the engine hood and the body (front cabin crossbeam/locking area). Its main function is to absorb opening and closing impacts, limit closing displacement, isolate vibrations and noise, and assist in absorbing energy during a pedestrian collision.
Core Definition and Function
Essentially: It is a buffer component made of high elasticity rubber or polyurethane (PU), partially in a hollow or porous structure to provide non-linear stiffness.
Main Functions:
Buffering closing impact: Prevents the engine hood from directly colliding with the body during closing, protecting the paint, locks, and sheet metal from deformation.
Isolating and reducing noise: Absorbs the vibrations transmitted from the road surface to the front cabin during driving, eliminating "clicking" noises, and improving the quietness.
Limiting and protecting: Limits the maximum opening angle or deflection of the engine hood to avoid interference and scratches with the headlights and fenders.
Providing safety energy absorption: Offers elastic deformation space in low-speed pedestrian collisions to reduce the injury to the pedestrian's head.
Common Types and Locations
Adjustable Buffer Pillars: Located at the support points on both sides of the engine hood, usually as threaded rubber cylinders, they can be rotated to adjust the height to control the closing force and gap.
Fixed Buffer Pads/Blocks: Located around the locking area or contact points of the engine hood inner frame, mostly made of sponge foam or solid rubber blocks, they are not adjustable and mainly serve for vibration isolation and positioning.
Material Evolution: Early models mostly used solid rubber, while modern vehicles mostly use porous polyurethane or high-density closed-cell sponge, offering better resistance to aging, rebound, and temperature adaptability.
Failure Symptoms
If there are hollow sounds when closing the engine hood, abnormal noises in the cabin when the hood is opening, uneven gaps, or excessive force during closing, it usually indicates that the buffer block is aging and hardening, collapsing, cracking, or falling off, and it needs to be replaced promptly.
Front Cabin Buffer Block Core Function: To absorb the closing impact of the engine hood, limit the mechanical overstroke, isolate metal hard impacts, and protect the paint and locks.
Core Functions
Buffering closing impact: Provides elastic resistance during the final closing stroke of the engine hood to prevent direct metal impact on the body sheet metal, avoiding dents and paint peeling.
Limiting and noise reduction: Acts as a physical stop point to limit the descent position of the engine hood, eliminating "clunking" metal impacts, and improving the quietness.
Protecting locks and hinges: Reduces the wear on the lock mechanism and hinges caused by repeated hard impacts, extending their lifespan.
Assisting sealing and gap control: Can be adjusted in height to optimize the gap between the hood and the fenders/lights, and some designs also have auxiliary functions such as water drainage or dust prevention.
Key Characteristics and Failure Manifestations
Material: Mostly high-rebound rubber, polyurethane (PU), or high-density closed-cell sponge, requiring resistance to oil, high temperatures, and aging.
Failure Signals: The rubber or sponge blocks harden, crack, fall off, or fail to rebound after compression, resulting in louder closing sounds, abnormal noises, or paint scratches.
Note the distinction: There are also suspension buffer blocks in the cabin (limiting the compression stroke of the suspension), although they have the same name, their installation positions and target objects are different, do not confuse them.
Common Failure Manifestations and Causes
Engine Hood Buffer Block Failure: Rubber/sponge hardening and cracking leading to loud "clunking" sounds when closing the hood, front end shaking, uneven gaps, or water seepage; common in use for more than 3 years or in extreme temperature environments.
Suspension Buffer Block Abnormalities: Including not removing the transportation protection block (new car abnormal sounds like tractors), aging and falling off or missing, resulting in "bottoming out" impacts on the shock absorber, dull sounds when passing over speed bumps, rattling noises during steering, and shortened shock absorber lifespan. Improper adjustment: Uneven height of the threaded buffer block causes excessive closing force or scratching of the trim panel paint surface by the hood.
Quick self-check and handling plan
Listen for clues: Drive the car in place and gently close the hood to listen for any metallic knocking sound (not a solid and dull noise); drive over at low speed to listen for any "thumping" hard impact sound above the front wheels.
Visual inspection： Open the hood to check if the rubber blocks on the front end are broken， collapsed， or missing； lift the vehicle to check if the buffer block at the top of the shock absorber piston rod is present， if it is chipped or has fallen off (for new cars， it is necessary to confirm that the transport block has been removed).
Adjustment test： If it is a threaded buffer block， turn it counterclockwise to raise (reduce the closing force)， turn it clockwise to lower (increase the gap)， and adjust left and right synchronously to make the gap uniform and the closing force moderate.
Replacement principle： If there is hardening， cracking， chipping， or detachment， it must be replaced in pairs； it is strictly prohibited to replace only one side to avoid uneven force distribution； when replacing the shock absorber， the buffer block， top rubber， and dust cover must be replaced simultaneously.
Maintenance suggestions and risk warnings
Immediate handling： If the suspension buffer block is missing， long-term driving will directly damage the shock absorber valve and spring， and even affect driving safety； if the engine hood buffer block fails， it may cause the hood to vibrate at high speed or lock mechanism wear.
Accessory selection： Preferentially choose original factory specifications or high-density closed-cell polyurethane/EPDM materials； avoid using ordinary rubber that rapidly ages under extreme temperatures.
Professional construction： Suspension disassembly requires professional lifting equipment； if the new car is suspected of not having removed the transportation buffer block， it should be immediately contacted for after-sales inspection， and if it is a PDI process error， it can be claimed for rights protection.
