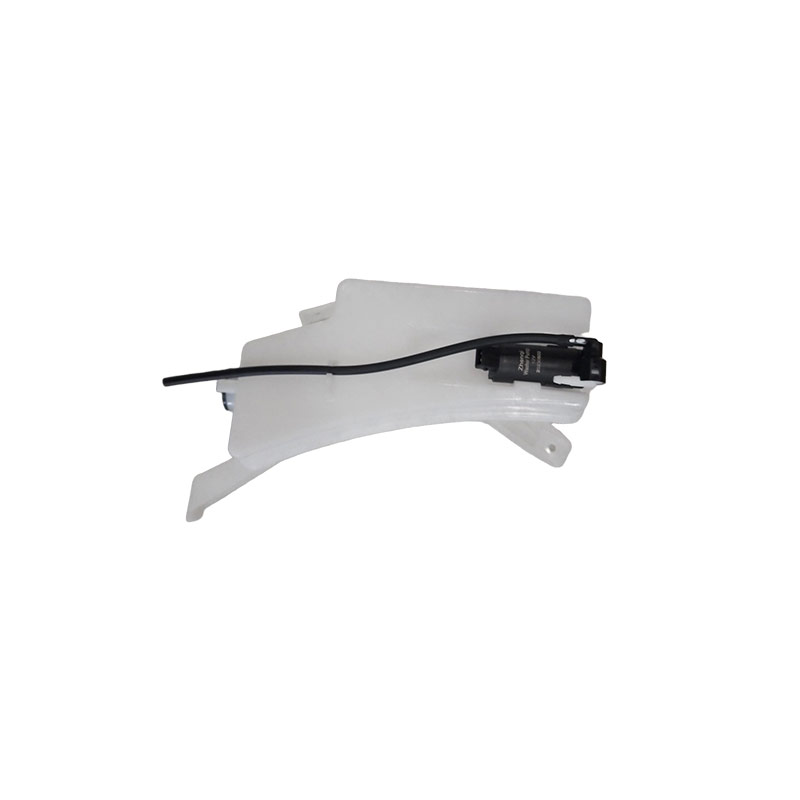

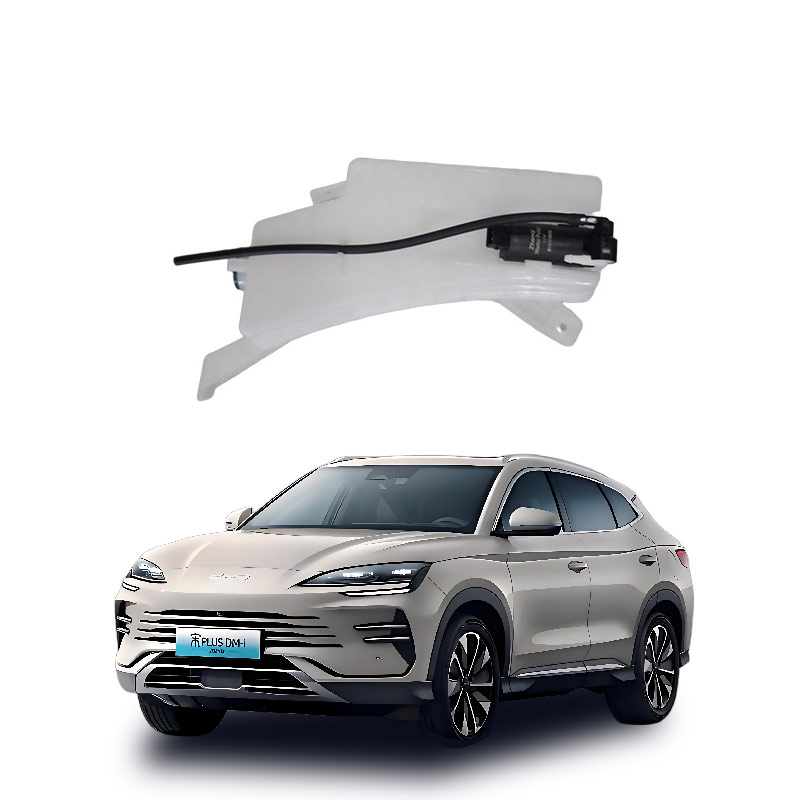

What are the car washing fluid container and the motor component?
The car washing fluid container is a liquid storage tank for storing glass water. The motor component is a miniature DC motor (often referred to as the "washing pump assembly" or "wetting pump") that drives the pump body to pressurize and spray water.
Core definitions and functions:
- Washing fluid container: Usually a plastic liquid storage pot, used to store dedicated washing fluid (water + cleaner/frost inhibitor), with a capacity of ≥ 1L, and equipped with a motor installation port and liquid level sensor interface at the bottom.
- Motor component: Composed of a permanent magnet DC motor and a impeller/piston pump body. When powered on, it rotates to drive the pump body to pressurize the liquid and deliver it through the pipeline to the nozzle for spraying; it has short-term working capability, is resistant to clogging, and can work in a wide temperature range.
Structural relationship and collaborative logic:
The motor is fixed at the bottom or side wall of the container, and the water inlet is directly connected to the interior of the container.
The motor shaft drives the pump to work, drawing the liquid from the bottom of the container and increasing its pressure.
The high-pressure liquid is transmitted through a hose to the nozzle on the windshield or headlights for atomized spraying.
The circuit is controlled by the wiper/washing switch, and usually contains a fuse for protection against stuck rotation and burnout.
Both together constitute the "liquid storage - power" core unit of the car windshield washing system, indispensable.
The washing fluid container stores the cleaning fluid, and the motor component (with a built-in water pump) is responsible for pressurizing the liquid and delivering it to the nozzle, achieving windshield spraying cleaning.
Core function analysis:
- Washing fluid container (liquid storage pot): As a storage unit, it holds dedicated glass water and has chemical corrosion resistance and sealing properties to ensure stable storage of the liquid in the engine compartment without leakage.
- Motor component (washing pump assembly): Driven by a permanent magnet DC motor, it generates mechanical power to draw the liquid from the bottom of the container and increase its pressure, and then delivers it through the pipeline to the nozzle to form a jet.
- Collaborative working mechanism: Press the switch → Motor starts → Motor shaft drives the pump → Pressurized liquid is sprayed → Combined with the wiper to remove dirt and restore clear vision.
Key functional details:
- Container function: Pure storage, no power output; it needs to be refilled regularly to prevent dry rotation damage to the motor.
- Motor function: Provides short-term high-torque power (single operation usually ≤ 1 minute), overcoming pipeline resistance and nozzle back pressure; it has a clogging prevention load capacity.
- System value: Removes tar, oil film and dust, reduces rain scraper friction, prevents dry scraping damage to the glass and rubber strips, and ensures driving safety.
The core failure phenomena and quick judgment for the car washing fluid container and motor component are as follows:
- No water spraying and no motor sound: First check the fuse, power supply voltage (normal about 12V), and the contact of the motor plug; if the power supply is normal but still silent and there is a burnt smell, it is mostly motor burnout.
- Motor sound but no water spraying: Check if the glass water is low/icy, if the nozzle is clogged, if the inlet pipe is detached or the pump impeller is stuck; in winter, first rule out the possibility of freezing.
- Weak or intermittent water spraying: Commonly occurs due to pipeline leakage, filter blockage, pump wear or low liquid level causing suction failure.
- With odor/overheating/smoking: Immediately cut off the power supply; it is most likely a motor coil short circuit or bearing jamming, and the assembly needs to be replaced.
Systematic troubleshooting steps (from simple to complex):
- Basic check: Confirm that the liquid storage tank is full (filled to 2/3 to reserve expansion space), check the sealing of the blue cover and for any leakage traces; clean the nozzle hole (use a fine needle to clear).
- Pipeline sealingity: Check if the inlet/outlet pipes are bent, aged, cracked or the interface is loose and leaking; in winter, confirm that the liquid has not frozen and caused the container to crack. Circuit and Insurance: Refer to the manual to find the washing pump fuse (usually on the driver's side dashboard or in the engine compartment fuse box), and use a test light or multimeter to confirm if it has blown; measure the voltage of the motor plug, if there is 12V but the motor does not turn, it is a fault of the body.
Motor Body Test: After power off, manually move the connecting rod to confirm there is no mechanical jamming; power on and listen for sounds, if there is a "buzzing" sound but no movement, it may be that the gears are stuck or the rotor is locked; smell for any burnt smell.
Professional Intervention: If the above steps are ineffective or involve disassembling the pump body or replacing the sealing ring/rotor, it is recommended to send for repair; the repair of the internal coil/bearing of the motor requires special tools, and forcibly disassembling can easily cause secondary damage.
Key Precautions
Do Not Run Dry: Do not frequently trigger the water spraying switch when the water level is low; idling will accelerate the wear of the motor and even cause it to burn out.
Winter Anti-freezing: It is necessary to use the corresponding antifreeze at the corresponding freezing point; the expansion of ice can crack the reservoir or damage the pump body seal.
Distinguish the Object: Confirm that the fault is the "water spraying motor" (responsible for pumping water) rather than the "wiper motor" (responsible for swinging), as they are independent but often integrated under the same control signal.
Maintenance Suggestions: Ordinary car owners can handle adding fluid, clearing blockages, and replacing the fuse; for motor replacement, pipe welding, or circuit diagnosis, it is recommended to hand over to professional technicians.
If the dashboard keeps reporting "insufficient cleaning fluid" but the fluid level is normal, it may be a fault of the level sensor or poor contact of the circuit, and it is necessary to test the resistance of the sensor separately or replace it.
