What is the front assembly of the left longitudinal beam of the car?

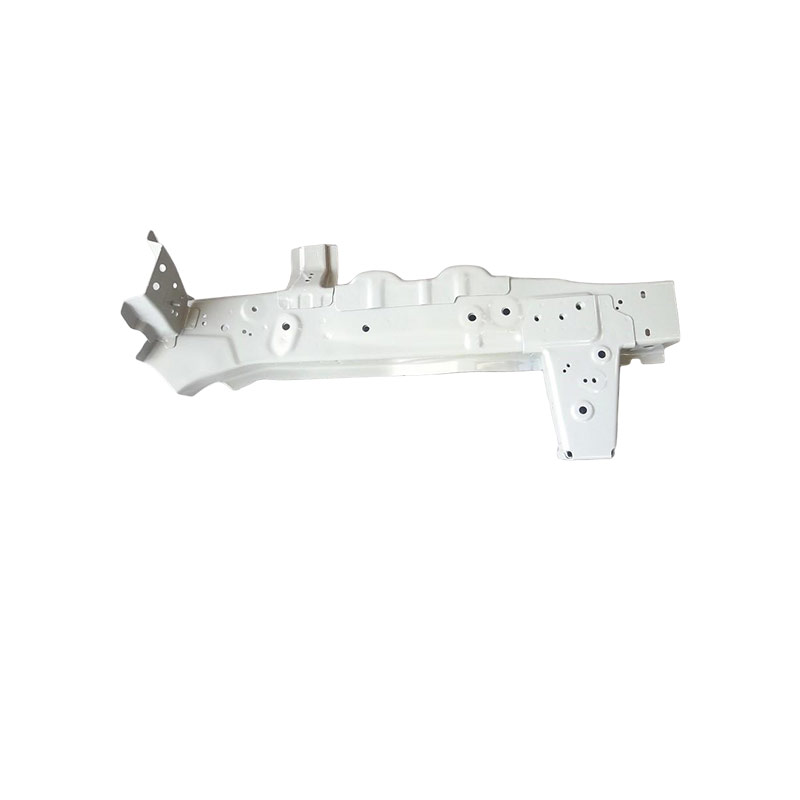

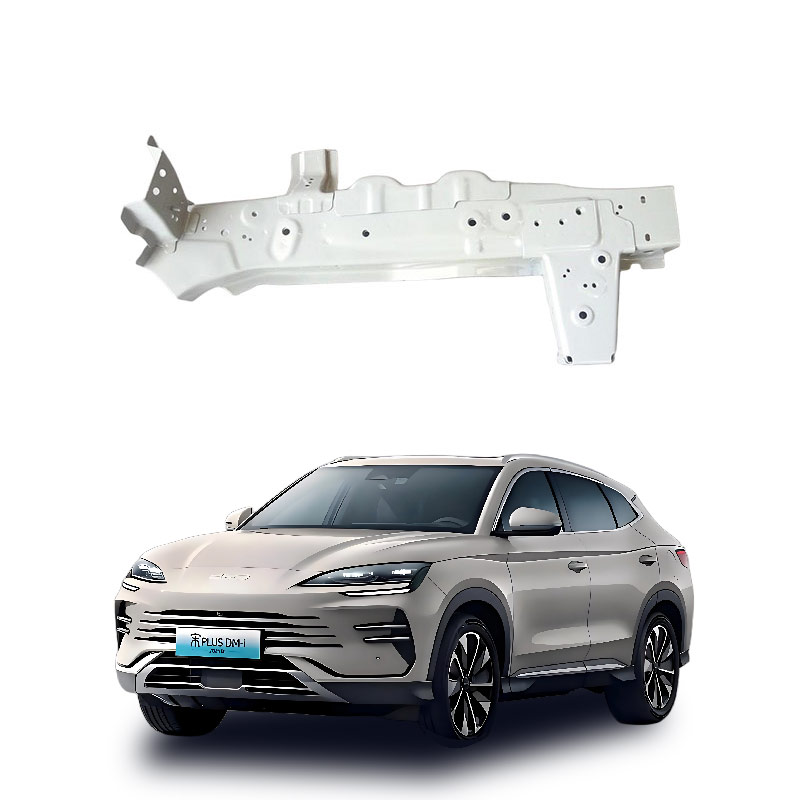

The front left longitudinal beam assembly (commonly referred to as "the front part assembly of the left front longitudinal beam") is a core load-bearing structural component at the left front end of the vehicle body. It is an integral assembly formed by welding the front section of the longitudinal beam, the energy absorption box, and the connecting brackets, and is not detachable. It is responsible for energy absorption during collisions and load transmission.
Core Definition and Composition
Essentially: It is not a single part, but a sub-assembly formed by welding the frontmost area of the left front longitudinal beam and components such as the energy absorption box. It is usually assembled or replaced as an independent module.
Location: It is located on the left front side of the engine compartment, connecting the front impact beam (through the energy absorption box) to the rear section of the vehicle's main longitudinal beam, and is located behind the front fender.
Main Components: The front plate/inner plate of the left front longitudinal beam, the energy absorption box (crumple box), and in some models, reinforcement plates or mounting brackets.
Material and Process: It is mostly made of high-strength low-alloy steel and formed by stamping. It is combined through spot welding or laser welding and is designed to collapse first during a collision. Core function
Collision energy absorption: During a frontal collision, the energy absorption box controls the controlled collapse to absorb approximately 60% of the initial impact energy, preventing the force from directly transmitting to the passenger compartment.
Load transfer: The collision force is guided longitudinally to the bottom beams and A-pillars of the vehicle body, maintaining structural integrity.
Component support: Provides installation benchmarks and rigid support for the front bumper, radiator frame, and left front suspension system.
Maintenance and identification features
Irreparability: Once deformed, this assembly usually requires a complete replacement as disassembling the welded structure would damage the strength and make it difficult to restore the geometric dimensions.
Critical accident judgment: If there are wrinkles, fractures, or cracked weld points in this area, it is determined as "damaging the longitudinal member", seriously affecting the vehicle's safety performance and residual value.
Naming differences: In maintenance manuals or drawings, it may be labeled as "Front Left Longitudinal Member Front Assembly", "Left Front Beam Head Assembly", or "Front Left Longitudinal Member Assembly".
The front assembly of the vehicle's left longitudinal beam is the core load-bearing and energy absorption component at the front end of the vehicle body, mainly responsible for three functions: longitudinal load transfer, collision energy collapse absorption, and front assembly support and positioning.
Core function
Collision energy absorption and collapse guidance: In a frontal collision, through the preset collapse zone (often in conjunction with the energy absorption box), it undergoes controlled deformation to absorb and disperse the impact energy, reducing the acceleration transmitted to the passenger compartment and protecting the safety of the occupants.
Longitudinal bearing and force transfer: As the core longitudinal frame of the chassis/car body, it withstands the longitudinal inertial force, braking load, and collision impact force during driving, and transfers the force backward to the front fender and the main structure of the vehicle body.
Component installation and geometric positioning: Provides installation benchmarks for front components such as the bumper, radiator, and engine suspension, ensuring the relative position accuracy of the powertrain and suspension systems, and maintaining the stiffness and stability of the vehicle's front structure.
Structural characteristics and correlations: This assembly is usually located below the left front side of the engine compartment and is mostly made of low-alloy steel in slot, Z, or box-shaped cross-sections. The front end is connected to the energy absorption box and the impact beam to achieve graded energy absorption, and is welded to the front fender or front crossbeam to form a complete force transmission path. Its design needs to balance the contradiction between "rigid support" and "flexible collapse", and is a key link in the passive safety system.
