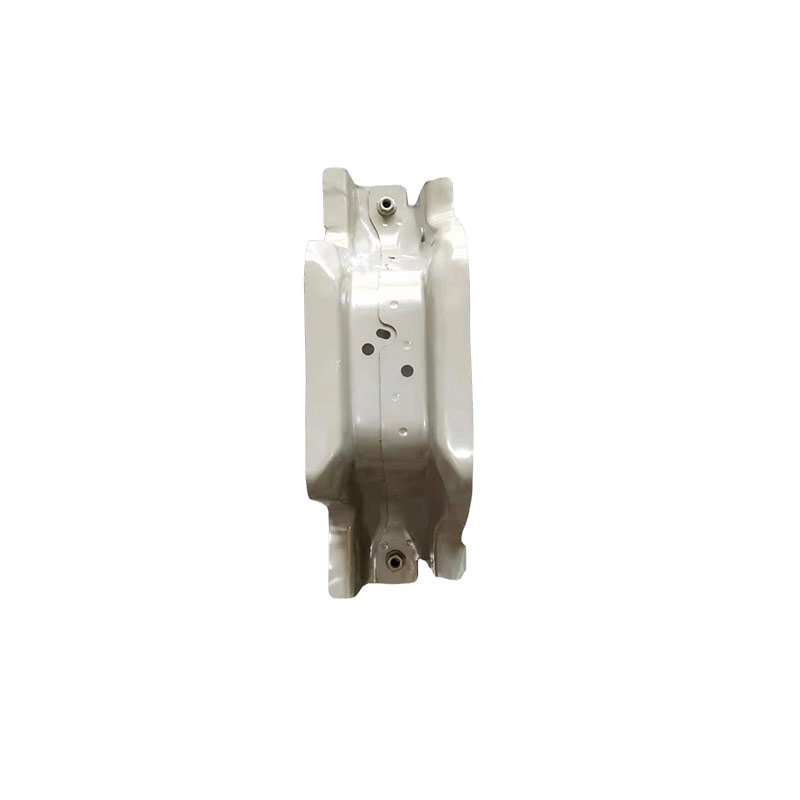

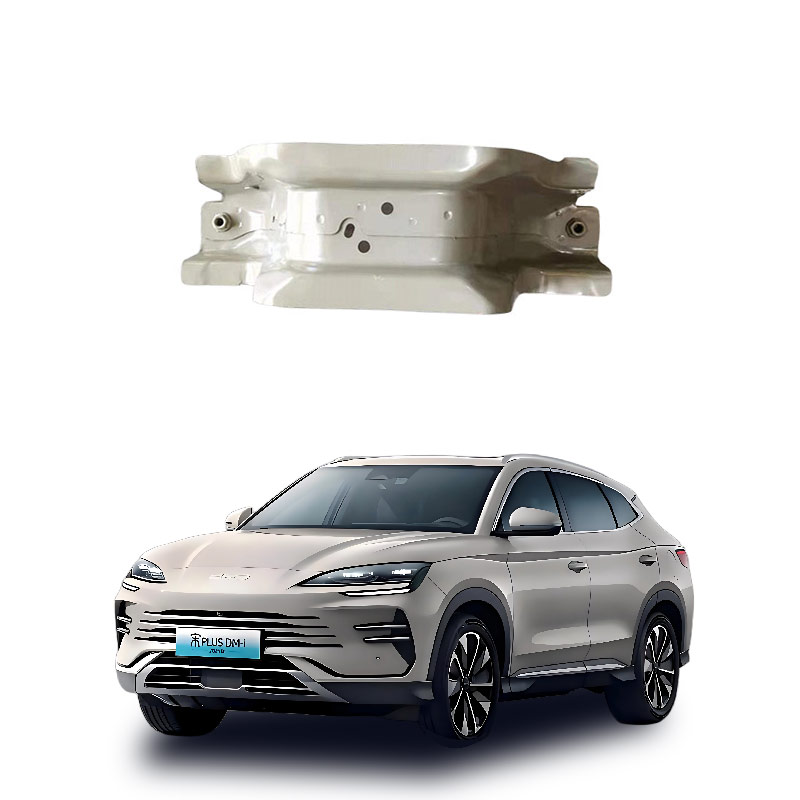

What is the rear crossbeam assembly of the car's front compartment?
The rear crossbeam assembly of the car's front compartment is a structural component located at the rear end of the engine compartment (close to the firewall/front panel), horizontally connecting the left and right longitudinal beams or the wheel well assembly. It mainly serves to support the front compartment accessories, enhance the vehicle's torsional stiffness, transfer collision loads, and isolate engine vibrations.
Core definition and location
Location: Located at the innermost part of the engine compartment (at the rear end), close to the front panel (firewall), connecting the left and right front longitudinal beams or the top of the front shock absorber tower/wheel well, distinct from the "front impact beam" or "water tank crossbeam" at the very front.
Nature: It is a key horizontal strengthening member of the vehicle body frame. Some models integrate it into the sub-frame or the front compartment assembly, while not all models are specifically called "rear crossbeam", and it is often referred to as "front panel crossbeam", "cowl crossrail", or "front compartment rear reinforcement beam".
Distinguishing features: It is not an external impact beam (energy absorption component), but an internal structural component, focusing on rigidity and support; it is also not equivalent to the rear crossbeam at the top of the roof or the rear of the vehicle. Main function
Structure reinforcement: Significantly enhance the torsional stiffness of the front cabin and the entire vehicle (up to 80% or more), preventing vehicle deformation from affecting handling and NVH performance.
Component support: As an installation base, it fixes the radiator frame, condenser, headlight assembly, wiring harness bracket, and some engine accessories.
Load transfer: In a frontal collision, it assists the longitudinal beams in distributing the impact force to the A-pillar and floor beam, forming a complete force transmission path.
Vibration isolation and noise reduction: Blocks the transmission of engine vibration to the cabin, optimizing NVH (noise, vibration, and harshness) performance.
Structure and materials
Material: Mostly uses high-strength steel (yield strength ≥ 600 MPa) or aluminum alloy, balancing lightweight and strength.
Form: Commonly consists of multi-segment variable-section structures (such as box-shaped, trough-shaped, or octagonal hollow structures), some integrating shock-absorbing sleeves, installation brackets, or wiring harness clips.
Connection method: Fixed through welding, riveting, or bolts to the left and right longitudinal beams and front fender panels, some designs include energy absorption or collapse-induced structures.
Note: The term "front cabin rear crossbeam" in industry terminology is not an absolute standard term. The specific reference should be determined based on the vehicle's drawings, usually corresponding to the front fender crossbeam (Cowl Crossmember) or front cabin rear end reinforcement beam.
The front cabin rear crossbeam assembly is a key transverse structural component connecting the left and right front longitudinal beams, located at the rear of the engine compartment (close to the firewall). Its core function is to enhance the vehicle's torsional stiffness, distribute collision loads, support the powertrain and front accessories, and in a frontal collision, collaborate with the longitudinal beams to optimize the force transmission path to protect the passenger compartment.
Core functions
Enhance structural rigidity: Significantly increase the torsional stiffness of the frame / white body (some designs can increase by 80% or more), preventing vehicle distortion during driving, and ensuring handling stability.
Collision energy management and force transfer: In a frontal collision, it works with the longitudinal beams, energy absorption box to evenly distribute the impact force to the left and right longitudinal beams and floor beam, avoiding stress concentration, assisting in absorbing and transferring collision energy, and reducing the risk of intrusion into the passenger compartment.
Component support and positioning: As an installation base, it supports key components such as the radiator, condenser, engine mount, steering gear, and front suspension tower top, ensuring their precise and reliable relative positions.
Load bearing: Bearing the longitudinal and vertical loads from engine vibration, braking inertia, and road impact, maintaining the integrity of the front cabin structure.
Position and structural features
Position: Located deep in the engine compartment, at the rear end of the front longitudinal beam and between the firewall, usually further behind the front bumper support beam (if present), being the last major transverse reinforcement beam of the front cabin.
Material and process: Mostly uses high-strength steel (yield strength often ≥ 600 MPa) or aluminum alloy, achieving a balance of high strength and lightweight through stamping, hydraulic forming, or integrated bracket design.
Collaborative mechanism: Often forms a multi-level collapse system with the energy absorption box and longitudinal beams, some designs introduce triangular truss structures to optimize local stability.
Note: It is necessary to distinguish between "front bumper support beam" (the first line of energy absorption defense) and "front cabin rear crossbeam" (the rear end of the longitudinal beam, focusing on rigidity and force transmission), as their positions and functional focuses are different.
