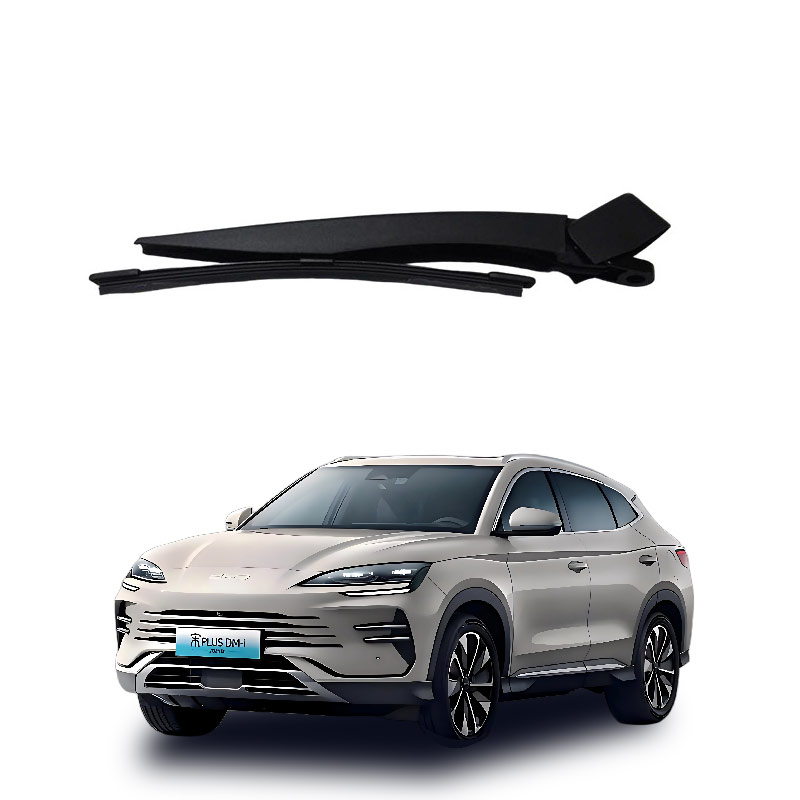

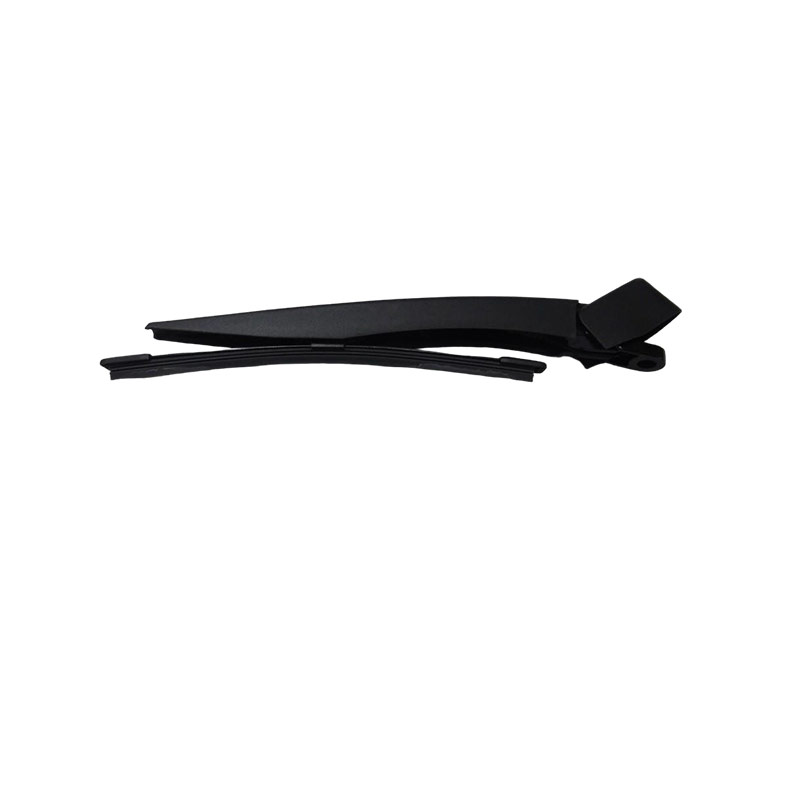

What is the function of the rear windshield wiper arm and the scraper blade assembly of the car?
The core function of the rear windshield wiper arm and wiper blade assembly is to remove rain, snow, dirt, and oil from the rear window, ensuring that the driver can obtain a clear rear view through the rearview mirror, thereby ensuring driving safety when reversing, changing lanes, and following vehicles.
Specific functions are as follows:
Wiper blade assembly (performing cleaning): Composed of rubber or silicone strips, it directly adheres to the glass surface and uses flexible material to remove water films and debris. If the rubber strips age and harden, it may cause incomplete scraping or abnormal sounds.
Wiper arm (providing power and pressure): As the end of the transmission, it transmits the oscillating motion driven by the motor to the wiper blade and applies a constant clamping force through internal springs to ensure that the wiper blade can closely adhere to different curved glass surfaces, avoiding jittering or missed scraping.
This component is mainly equipped on SUVs, MPVs, hatchbacks, and backs with a vertical rear end. Since these types of vehicles tend to form an air flow vacuum area at the rear during driving， the mud and water on the rear windshield are easily adsorbed and cannot be blown away by normal air flow， thus requiring mechanical scraping to maintain clear vision. Sedans with a rearward streamlined design do not usually have this component as the rear window is less prone to accumulation of dirt.
Replacing the rear windshield wiper blade core lies in protecting the glass and confirming the interface type. Most models use a snap-on type， which can be done manually without tools.
Core operation steps：
Safety preparation： Park the vehicle safely， turn off the engine， and pull up the handbrake. It is recommended to place a soft towel between the windshield and the wiper arm to prevent the wiper arm from bouncing back and breaking the rear windshield.
Lift the wiper arm： Gently lift the rear wiper arm to make it form a 90-degree vertical state with the glass surface， exposing the connection clips.
Remove the old wiper：
Press snap-on type (most common)： Find the release button or tongue at the connection point， hold it with your finger， and push or pull along the direction of the wiper arm outward to remove the old wiper.
Rotate unlock type： For some models， the wiper blade needs to be rotated to be parallel to the arm， then press the clip and pull outward to remove it.
Screw-fixed type： For older models， loosen the fixing screws with a screwdriver or wrench and remove it.
Install the new wiper：
Check if the new wiper model is the same as the old one.
Align the new wiper connector with the wiper arm slot and push it in along a straight line until you hear a clear "click"， confirming the lock.
Gently shake to test if it is firm， avoiding loosening.
Reposition test： Slowly lower the wiper arm and activate the rear wiper function to observe if the scraping is smooth and there is no abnormal sound.
When both the rear wiper arm and wiper blade are damaged， it is necessary to replace the assembly or repair separately to prevent glass fragmentation and confirm the interface type.
Emergency handling and diagnosis：
Immediately disable： If the wiper blade falls off and the metal arm directly contacts the glass， do not turn on the wiper to avoid scratching the rear windshield (including heating wire).
Fault differentiation：
Only wiper blade aging/fracture： Can replace the rear wiper rubber strip or dedicated wiper blade separately.
Wiper arm deformation/spring failure/motor linkage damage： Must replace the wiper arm assembly， as simply replacing the blade cannot solve the adhesion problem.
Model exceptions： Some electric or high-end models need to enter the "maintenance mode" through the vehicle's display to lift the wiper arm. Forceful twisting may trigger protection or damage the motor.
Self-replacement steps (general process)
Safety protection： Place a thick towel between the windshield and the wiper arm to prevent accidental rebound and breaking the glass.
Remove old parts：
Lift the wiper arm vertically.
Find the connection clips (commonly press-type， U-shaped hook， or side insertion type)， press the clip or rotate to unlock， and smoothly pull out the old wiper/arm. If the arm rod is damaged, remove the fixing nut (note to record the position of the gasket), and remove the entire arm rod.
Installation of new parts:
Remove the protective film of the new scraper rubber strip, insert it into the interface, and hear the "click" sound to lock it.
If replacing the arm rod, tighten the fixing nut according to the original factory torque to ensure no loosening.
Test verification: Spray glass water, run at low speed to observe if there is vibration or abnormal noise, and confirm that it is tightly attached.
Key precautions
Interface matching: The rear wiper interfaces are diverse (such as dedicated hook type, bolt fixation), make sure to purchase according to the owner's manual or the model of the old part, and different brands and models are not interchangeable.
