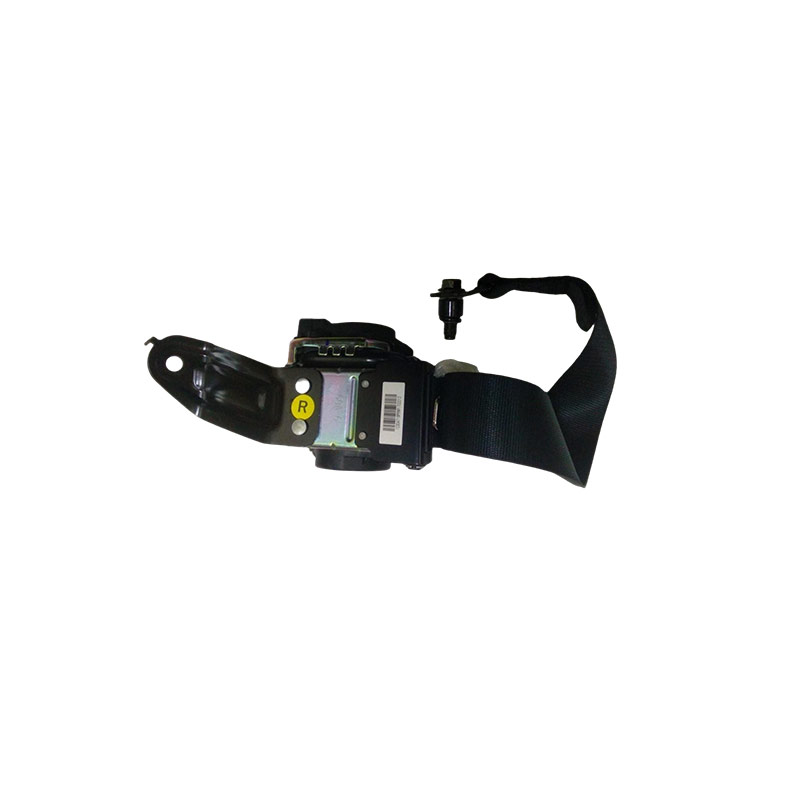

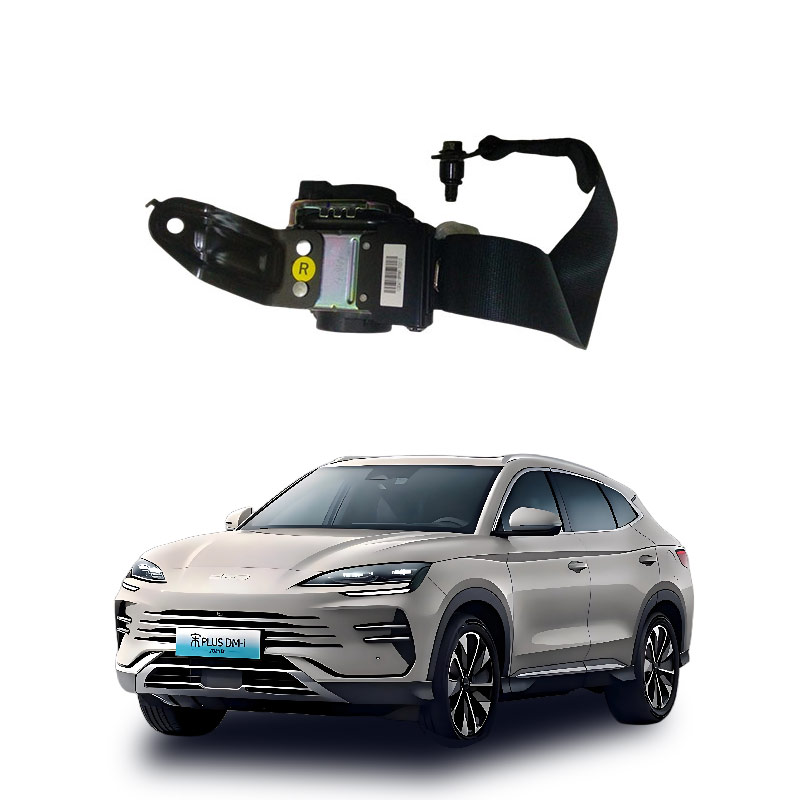

What is the rear seat safety belt assembly of the car?
The rear seat belt assembly in a car typically refers to a complete three-point passive safety restraint system, mainly consisting of the following core components:
High-strength webbing: Made of polyester fibers, it is responsible for directly absorbing and distributing the impact force during a collision, covering the shoulders and waist of the occupants.
Retractor: Installed on the side of the seat or the lower part of the B-pillar, it contains an emergency locking mechanism (ELR). It can be freely extended during normal use, but locks instantly in an emergency to prevent the webbing from being pulled out.
Lacing and tongue: The lacing is fixed to the floor of the vehicle or the seat frame, and the tongue connects to the end of the webbing. They are inserted together to achieve quick locking and release.
Height adjuster: Located on the outside of the B-pillar, it allows for up and down sliding to adjust the position of the shoulder belt anchor point to accommodate different heights of occupants, avoiding neck compression.
Pre-tensioner and force limiter (available in high-end models): The pre-tensioner tightens the webbing within milliseconds of a collision to eliminate slack; the force limiter releases the tension moderately when the force is too great to protect the chest from excessive compression.
This assembly is fixed at three points - the B-pillar, seat anchor points, and the floor - to work together to limit the movement of the rear passengers and reduce the risk of secondary collisions. If the vehicle is equipped with a child safety interface, the right rear seat may also incorporate an ISOFIX/LATCH lower anchor point as an auxiliary fixation component.
The core function of the car's rear seat belt assembly is to restrain the displacement of the occupants and distribute the impact energy during a collision, preventing rear passengers from being thrown out of the vehicle due to inertia and secondary injuries.
Core protection mechanism
Limit displacement and prevent secondary collision: In an emergency braking or impact, the retractor locks immediately, firmly fixing the occupants to the seat, preventing their heads and chests from colliding with the back of the front seat, the window, or interior components, significantly reducing the risk of cervical spine, rib, and internal organ injuries.
Disperse impact force to the strongest bones: The three-point structure (shoulder belt + waist belt) design ensures that the shoulder belt passes through the center of the chest and the waist belt adheres to the hip bone, distributing the huge impact force to the strongest bones of the human body, rather than the fragile abdomen or neck, reducing soft tissue crush injuries.
Collaborate with passive safety systems: As the foundation of passive safety, it works in conjunction with airbags and a strong body structure; if the seat belt is not fastened, the airbag may actually cause a fatal impact to the occupant, and the seat belt is the prerequisite for the airbag to exert its protective effect.
Key component functions
Emergency locking retractor (ELR): It contains an acceleration sensor and centrifugal locking mechanism. During normal driving, it can be freely adjusted in tightness. Once it detects a sudden deceleration or the rapid pulling of the webbing, it mechanically locks the webbing within milliseconds.
Pre-tensioner and force limiter (standard in high-end models): In the event of a collision, the pre-tensioner eliminates the slack in the webbing, making the occupants immediately adhere to the seat; then the force limiter moderately releases the tension to prevent excessive force on the chest from causing fractures.
High-strength webbing and lacing: Made of polyester fibers, with an anti-tensile strength typically ≥ 15,000 N, combined with the tongue and latch to form a rigid closed loop, ensuring the effective transmission of restraint force.
Correct use of the three-point rear seat belt in the right rear seat can reduce the risk of car accident injuries by approximately 45%, and can prevent rear-seat passengers who are not wearing seat belts from colliding with the occupants in the front seat during a collision, ensuring the safety of the entire vehicle. It is recommended that regardless of the length of the journey, fasten the seat belt as soon as you get in the car to ensure that the shoulder belt does not press on the neck and the waist belt does not press on the abdomen.
