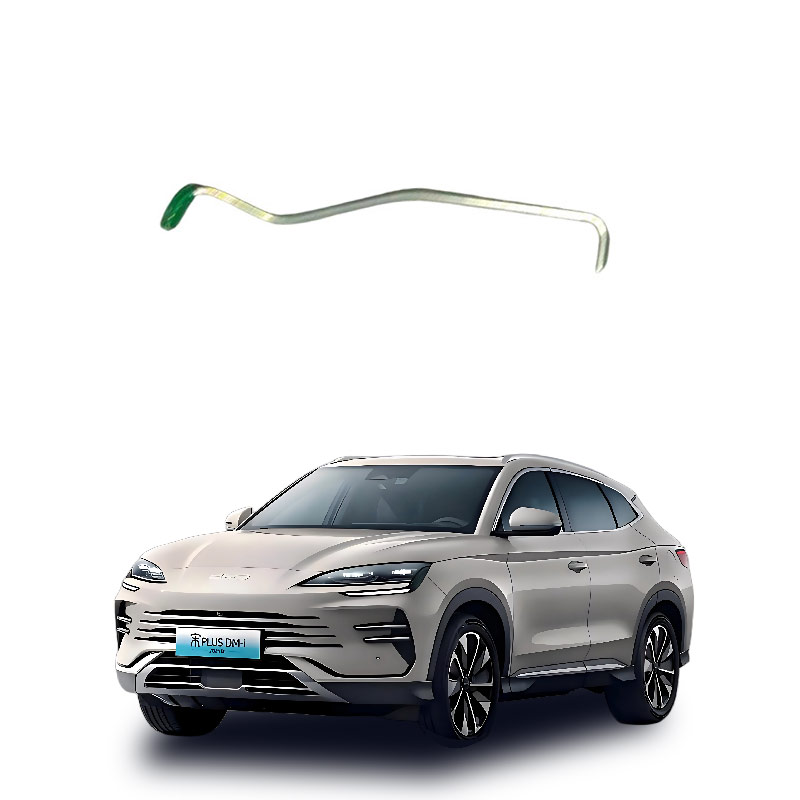

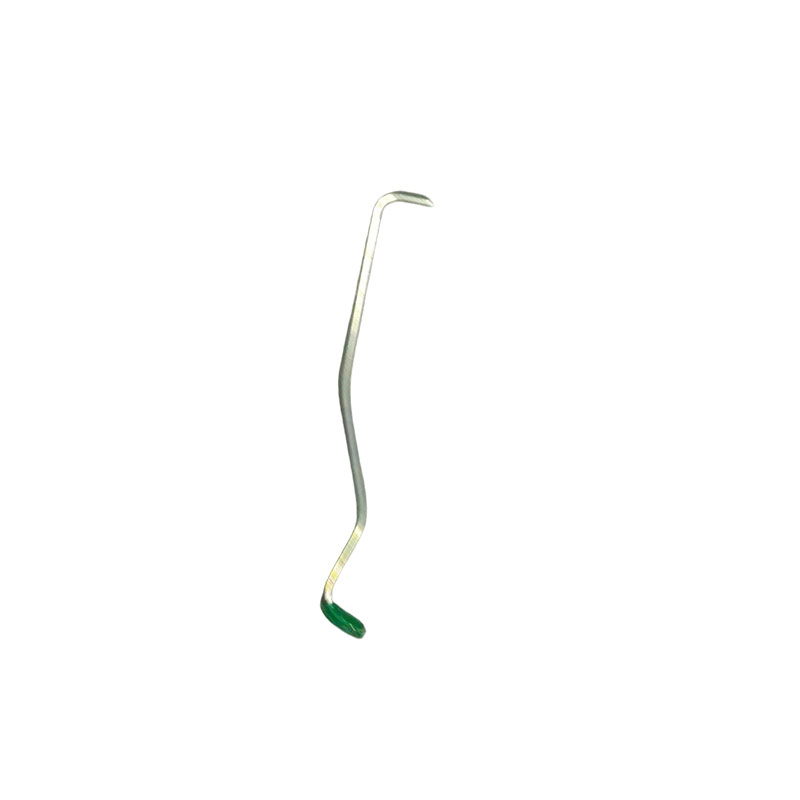

What is the outer pull rod for the right rear door lock of the car?
The right rear door lock lever (commonly referred to as the outward pull lever or opening cable) is a mechanical transmission component that connects the door handle outside the vehicle to the door lock actuator. It converts the external pulling action of the handle into an unlocking signal inside the lock mechanism.
Core Function and Structure
Transmission Function: When you pull the right rear door handle outside the vehicle, the lever is pulled and directly pulls the release lever inside the door lock, causing the lock tongue to retract and opening the door.
Mechanical Backup: It is a purely mechanical structure that does not rely on circuits. Even if the vehicle's battery is depleted or the electronic system fails, as long as the lever is not broken or detached, the door can still be opened from the outside through a physical method.
Position Characteristics: It is usually located inside the vehicle's interior panel or in the door shell's interlayer, with one end clamped to the base of the external handle and the other end inserted into the interface of the door lock assembly.
Common Fault Manifestations
If this component is damaged, detached, deformed, or the lubrication is dry, it will cause:
When pulling the external handle, the feel is "empty" and there is no resistance;
The door cannot be opened from the outside and needs to be opened from the inside or disassembled for repair;
Some models may also be accompanied by abnormal sounds (metal friction sounds). Notes for Attention
The designs of different vehicle models (such as fuel vehicles and electric vehicles) vary slightly: traditional models mostly use rigid metal rods or steel cables, while some electric vehicle models, due to the hidden handle design, may adopt more complex secondary linkage mechanisms.
When repairing, it is necessary to confirm the specific part number (such as "right rear door lock outward push rod" in Haizhou parts), to avoid mismatch of common parts.
If replacement is needed, it is recommended to consult the repair manual of the corresponding vehicle model or a professional auto parts dealer for the precise model.
The outer pull rod of the right rear door lock is a mechanical transmission component that connects the door handle outside the car to the lock body. Its core function is to convert the external operating force into the locking action.
Transmitting the opening signal: When pulling the right rear door handle, the outer pull rod is pulled, directly pulling the release mechanism inside the lock body, thereby unlocking and opening the door.
Pure mechanical redundancy guarantee: As a mechanical structure that does not rely on electricity, even if the vehicle battery is depleted, the central locking system fails, or the circuit is abnormal, this pull rod can still achieve emergency mechanical door opening to ensure personal safety.
Linked logic for child locks: In some vehicle models, the action of the outer pull rod is also restricted by the child safety lock status; if the child lock is enabled, the outer pull rod can still pull the lock body, but it will block the internal unlocking path, preventing the door from being accidentally opened from inside the vehicle.
If the outer pull rod is broken, disengaged, or rusted and stuck, it will cause a lack of force when pulling the outer handle or the door cannot be opened from the outside. Replacement of the same specification pull rod is necessary to restore the mechanical transmission function.
The right rear door pull rod of the car needs to be removed from the door panel and replaced or the handle assembly replaced if it is damaged; if it is broken, it can only be replaced; if it is bent, it can be attempted to correct, but the risk is higher.
Core judgment and handling plan
Fault phenomenon: The outer pull handle has no rebound sensation, there is no resistance when pulling, the door cannot be opened from the outside (the interior is usually normal), or there is a "clicking" idle sound.
The only solution: If the pull rod is broken/disengaged, a new part must be replaced; if only bent/loose, it can be corrected or tightened, but it is recommended to replace directly to prevent recurrence.
Key prerequisite: The interior door panel must be disassembled to access and replace this component, and it cannot be repaired directly from the outside.
Emergency opening steps: If the door cannot be opened at present, enter from the other side of the door, recline the rear seat or remove the right rear door interior panel (it is necessary to pry open the latch, remove the fixing screws), manually unlock or remove the faulty pull rod from the inside.
Preparation for disassembly: Disconnect the vehicle power supply, use plastic pry bars to remove the door panel cover, screws, and latches, carefully peel off the waterproof film to expose the door lock mechanism.
Replacement of components: Record the direction of the old pull rod, remove the end clamps (be careful to prevent bullet-like flying), install the same specification new pull rod and ensure it is "clicking" locked at both ends; if the clamps are damaged, they should also be replaced together.
Test restoration: Before reinstalling the door panel, repeatedly test the opening/closing and locking functions inside and outside to ensure there are no errors before reinstalling the waterproof film, door panel cover, and screws.
Notes and suggestions
Accessory matching: The specifications of the pull rod (length, clamp shape, material) must be consistent with the original vehicle; it is recommended to purchase original or high-quality aftermarket parts with the vehicle frame number (VIN).
Interference from child locks: Check if it is caused by mistakenly touching the child lock that results in a "false fault". If the internal door cannot be opened when the child lock is enabled, it is not a problem with the pull rod.
Professional assistance: If lacking tools or worried about damaging the waterproof film/latches, it is recommended to go to a repair shop (the labor cost is usually lower, the cost of parts is about several dozen yuan), to avoid self-operation causing water leakage or abnormal sounds.
If specific vehicle models (such as Volkswagen Passat, Cruze, etc.) need disassembly videos or part models, please add the specific brand and model year for precise matching.
