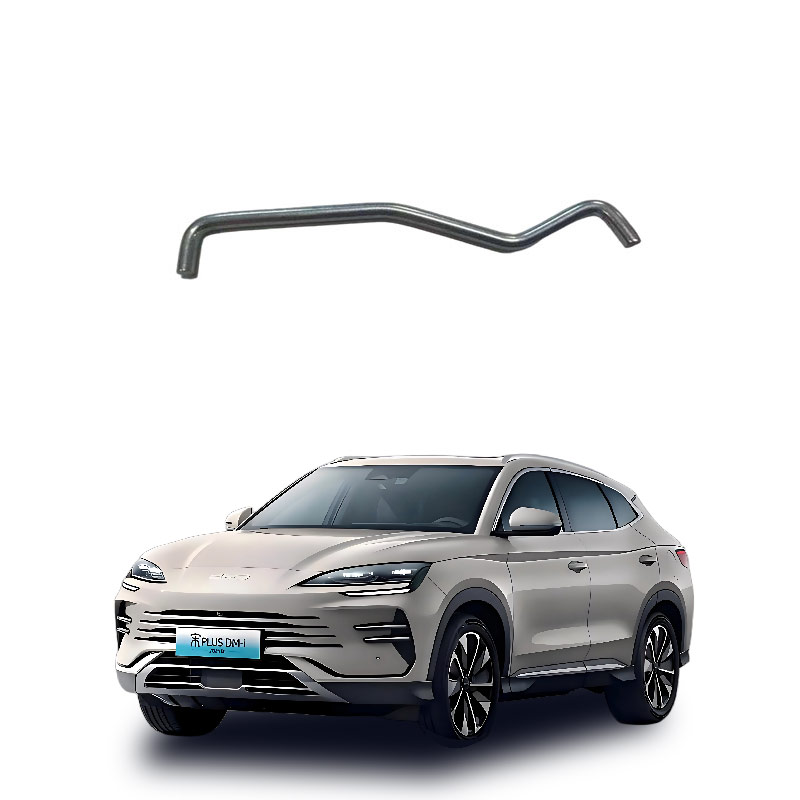

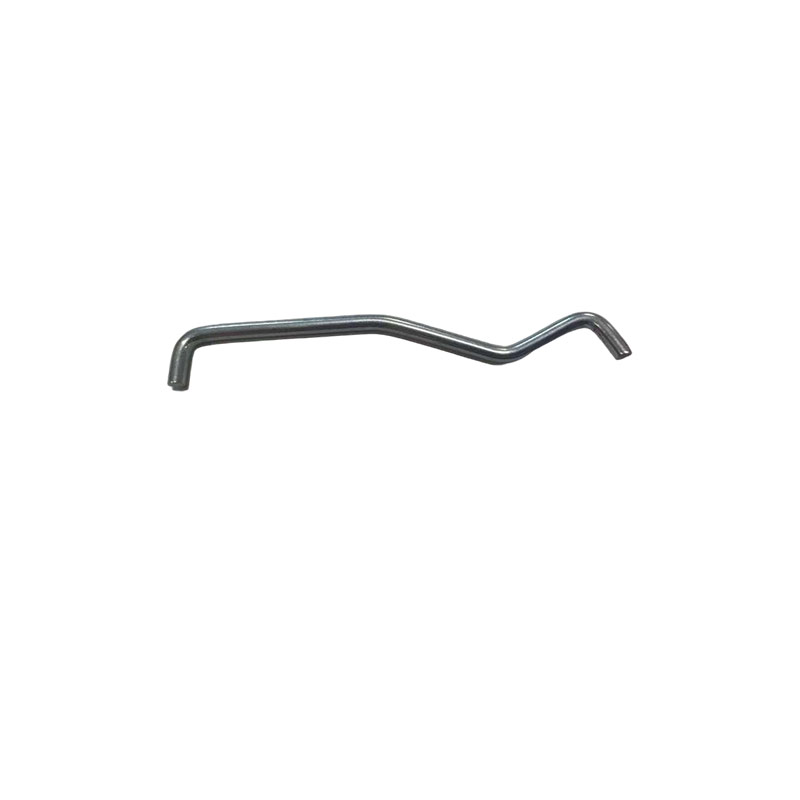

What is the outer pull rod for the left rear door lock of the car?
The left rear door lock lever is a mechanical transmission component that connects the door handle on the outside of the car to the door lock actuator (lock body), and it is a core connecting rod of the door locking system.
Core Definition and Function
Function: It precisely transmits the pulling force generated by the driver or passenger when they pull the "left rear door handle" outward to the lock mechanism inside the door, driving the lock tongue to retract and thereby opening the door.
Position: It is located inside the left rear door interior panel, with one end connected to the base of the handle and the other end connected to the door lock assembly.
Structural Form: It is usually a thin rod made of metal or high-strength plastic, with clasps, ball heads or threaded interfaces at both ends. Some models are wrapped with rubber dust covers to lubricate and reduce noise.
Common Fault Manifestations
If this lever is detached, broken or deformed, the following phenomena will occur:
Ineffective pulling from the outside: When pulling the handle from the outside, it feels like there is no travel, and the door cannot be opened.
Strange noise: When opening or closing the door, a "click" sound or metal friction sound is emitted inside the door panel.
Need to use the internal handle for remediation: At this time, it is usually still possible to open the door from the inside through the internal handle (unless the child lock has been activated). Notes for Attention
In public information, "hanging pull rod" and "steering pull rod" are often confused with each other. However, the outer pull rod of the door lock specifically refers to the door opening mechanism and is unrelated to the chassis suspension system.
During maintenance, the door interior panel needs to be removed to access this component. After replacement, it is necessary to test whether the locking logic is smooth.
The outer pull rod of the left rear door lock (the connecting rod between the door handle outside and the lock block mechanism) mainly functions through mechanical transmission, transferring the external opening action to the door lock actuator.
Power transmission: When pulling the outer handle on the left rear door, the outer pull rod is pulled, directly transmitting the physical pull force to the lock mechanism or microswitch inside the door lock, triggering the unlocking or opening action.
Pure mechanical redundancy: As a non-electric pure mechanical link, even if the vehicle battery is depleted, the circuit fails, or the electronic system fails, the external pull rod can still achieve emergency mechanical opening to ensure safety redundancy.
Structural linkage: In some models, the outer pull rod also participates in the linkage of the child lock logic (if the child lock is not activated), ensuring that the external operation can normally overcome the resistance of the lock tongue to open the door.
In summary, it is the "physical bridge" for opening the door from outside, responsible for converting the human hand force into the lock action, and is an indispensable mechanical backup link in the door safety system. If the outer pull rod falls off, bends, or gets stuck, it will cause the inability to open the door from outside, and it is necessary to repair and replace it.
The left rear door lock cannot be opened usually due to "child lock activation error", "central lock failure", or "mechanical pull wire damage". Please quickly check the following sequence:
Firstly, check the child safety lock (the most common cause)
If the door cannot be opened from the inside but can be opened from the outside, it is very likely that the child lock was accidentally activated.
Operation position: Open the left rear door (need to pull the handle from the outside), check the side lock block below the door.
Removal method:
Pole-type: Find the small pole with a child icon and turn it to "OFF" or the iconless direction.
Knob-type: Insert the mechanical key into the small hole and rotate it counterclockwise or clockwise to the "OFF" position (different models have different directions, refer to the vehicle manual).
Electronic-type: Some high-end models need to turn off the electronic child lock in the "Vehicle Settings - Safety" of the central control screen.
Check the status of the central lock and the key
If neither inside nor outside can open the door, it may be that the locking mechanism has not been reset or there is an electronic fault:
Confirm unlocking status: Press the driver's seat central unlock button and observe if other doors open normally; if only the left rear door has no response, it may be that the central motor of this door is faulty.
Key battery level: If the remote key battery is exhausted, try using the mechanical key to manually rotate the lock core to unlock.
Forceful reset: Disconnect the negative battery terminal for 10 minutes and reconnect, which can reset the occasional electronic faults of the on-board computer (note: it may cause the radio and other settings to be lost).
Mechanical component failure handling
If the above methods are ineffective, it is mostly an internal mechanical structure problem:
Pull wire detachment/breakage: If the inner handle is pulled forcefully repeatedly without effect, it may be that the pull wire connecting the inner handle and the lock block is detached, and it is necessary to remove the door panel and reattach or replace it.
Lock body jamming/rust: Spray a small amount of WD-40 or a dedicated lubricant on the door, gently tap to help loosen the rust; in winter, use warm water (<60°C) to pour on the sealing strip to thaw the ice, and strictly prohibit boiling water.
Handle damage: If the inner handle is loose or broken, it is necessary to replace the internal door handle assembly.
Emergency and professional advice
Emergency entry: If there is an urgent need to retrieve items and the door cannot be opened, some hatchback vehicles can enter from the trunk by reclining the rear seats; for sedans, try using a long rod tool to hook the lock core (high risk, use with caution).
