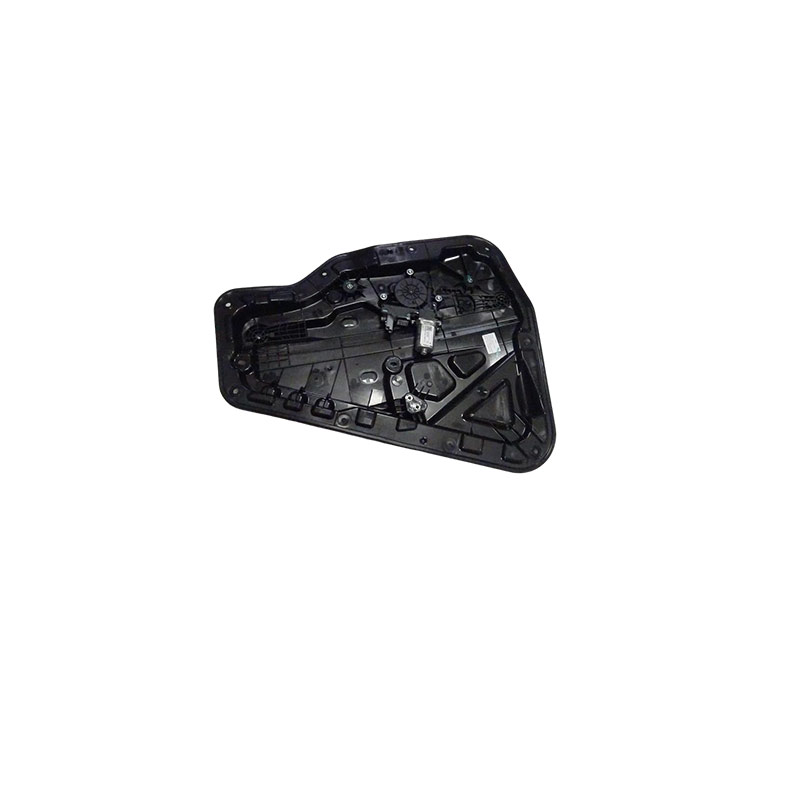

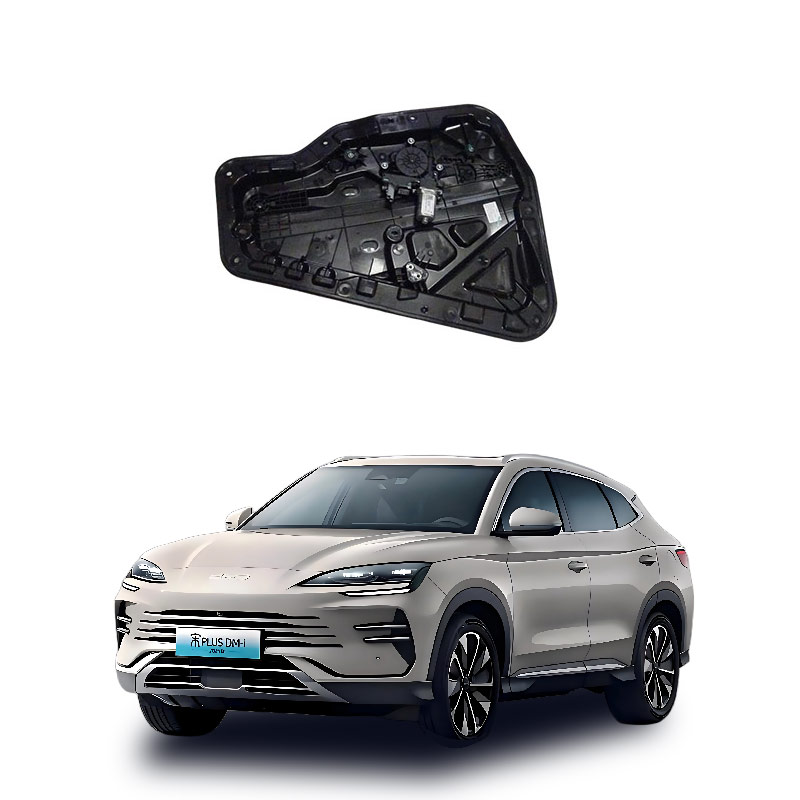

What is the car door module?
The Door Control Module (DCM) is an electronic control unit dedicated to centralized intelligent control of the car doors and surrounding electrical components. Its core functions include window raising/lowering with anti-collision protection, central locking, rearview mirror adjustment, door lights, etc.
Core Definition and Functions
Essentially: It is a distributed control node in the vehicle body electronic system and is part of the vehicle body control network. It collects switch signals and drives actuators.
Main Control Objects: Electric glass raising/lowering (including anti-collision function), central door locking system, external rearview mirror folding/heating/adjustment, interior reading lights/entrance greeting lights, keyless entry sensing, etc.
Working Logic: Receives driver or remote control commands/sensor signals, undergoes internal logic processing to precisely control motor or relay actions, and communicates with the vehicle body BCM (body control module) for coordination.
Common Structural Forms
Integrated Switch Type: The DCM is directly integrated below the window switch panel, with a compact structure and low cost, commonly used in Japanese vehicle designs.
Integrated Motor Type: The control unit is packaged together with the raising/lowering motor or door lock motor, simplifying wiring and providing flexible layout, more commonly used in European and American vehicle designs.
Technical Value
Replacing the traditional decentralized relay logic with centralized control significantly reduces the complexity of wiring and connection points, improving system reliability, response speed, and fault diagnosis capabilities, which is a key hardware foundation for realizing intelligent door functions (such as automatic anti-collision, greeting mode).
The Door Control Module is mainly used for centralized intelligent control of the car doors and surrounding electrical components.
Window Management: Controls the raising/lowering of the glass and anti-collision function to ensure safety.
Door Lock System: Responsible for central door locking, remote unlocking, and anti-theft locking.
Rearview Mirror Adjustment: Achieves angle adjustment, folding, and heating/defrosting of the mirror.
Light Control: Manages door lights, turn signals, and ambient lights, etc.
Some models integrate these functions into the Body Control Module (BCM), working in coordination with the vehicle's electrical system.
DCM faults typically manifest as uncontrolled windows, malfunctioning central locking, failure of rearview mirror adjustment, or inability to open the door. Modern vehicles often adopt a distributed architecture, and faults may originate from the module itself, line communication, or associated sensors.
Core Fault Phenomena
Function Failure: Uncontrolled raising/lowering of one or more windows, no response to door locking/unlocking, failure of electric rearview mirror folding.
Signal Abnormalities: The dashboard misreports "door not closed", or the remote key signal only responds to some doors.
Safety Protection Trigger: Due to motor overload or overheating, the module enters a protection mode, temporarily locking the function (requiring cooling or reset).
Common Fault Causes
Hardware Damage: Internal power transistor breakdown, circuit board moisture corrosion (common after washing or water immersion), or failure of motor Hall sensors.
Line and Communication Issues: Wire bundles at the door hinge break due to long-term opening and closing (open circuit/short circuit), or LIN/CAN bus communication interference causing data packet loss.
Software/Mismatch Errors: The module needs to be reinitialized (such as anti-collision learning for window prevention) after battery replacement or power loss, otherwise the function is limited.
Associated Component Faults: Mechanical jamming of the door panel switch group, door lock block, or fuse melting, often misdiagnosed as a module fault.
Troubleshooting and Resolution Suggestions
Basic Self-Check: Check if the corresponding door fuse is blown; try performing an initialization setting for the window (long press the raising/lowering button to the top/bottom and hold for 5 seconds). Professional Diagnosis: Use the OBD diagnostic tool to read the fault codes. Focus on checking the CAN/LIN bus communication status and the module data flow. Determine whether it is a module failure or an external signal absence.
Maintenance Plan:
If it is a circuit breakage, repair the wiring harness and perform waterproof and insulation treatment.
If the module hardware is damaged, replace the module of the same model and perform online programming/encoding (matching the vehicle VIN code), otherwise it will not work.
Do not disassemble the internal parts of the module privately. Chip-level repair requires dedicated equipment support.
Note: Regarding electronic safety systems (such as child locks, anti-theft linkage), it is recommended to handle them at an authorized repair station or a professional auto repair shop to avoid triggering a chain failure of the entire vehicle's circuitry.
