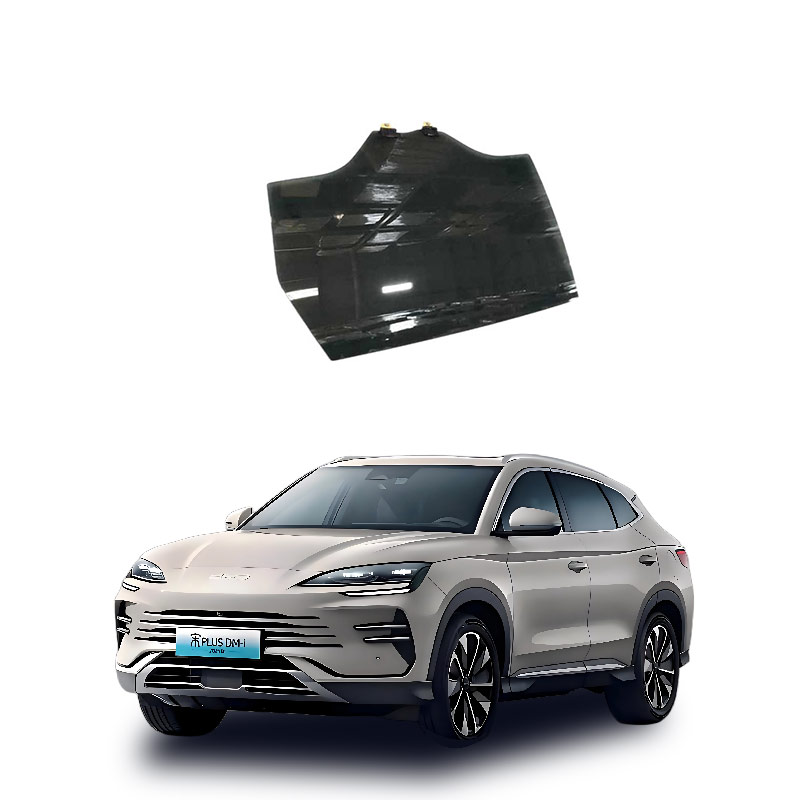

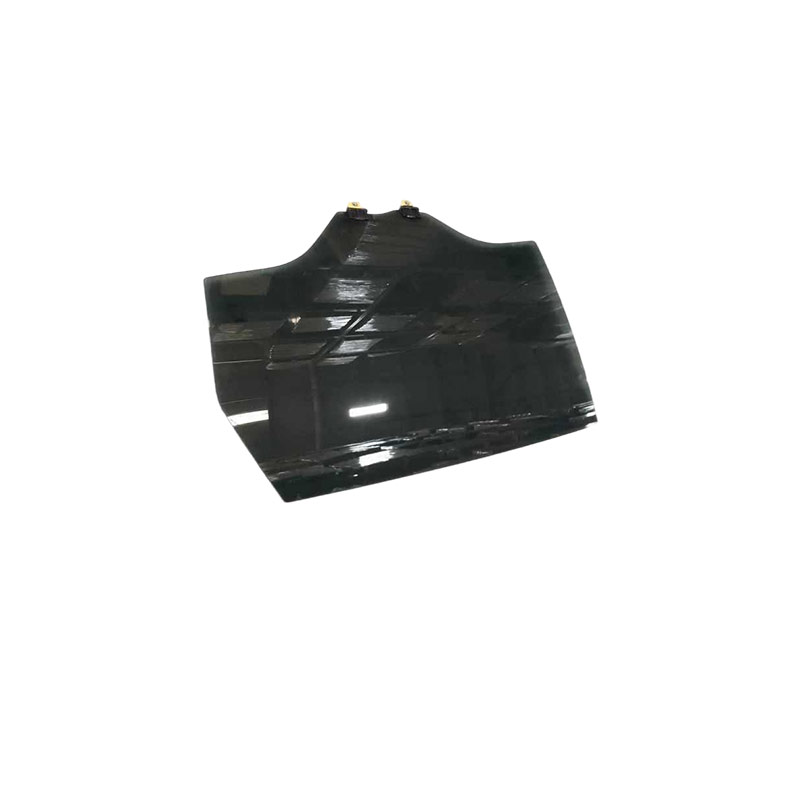

What is the rear door glass assembly of a car?
The rear door glass assembly of a car refers to the modular component installed on the rear door of the vehicle, which is used to close the window opening, ensure safety and privacy. It is not a single piece of glass but consists of a glass body, a lifting mechanism, and a sealing system.
Core components
Glass body: Usually made of tempered glass (with a thickness of approximately 3.5mm), some high-end models or triangular window areas may use laminated glass, which breaks into blunt-angle particles to prevent injury.
Lifting mechanism: Includes a glass lifter (cable wheel type or arm type), a drive motor, and a guide rail bracket, responsible for the vertical movement and positioning of the glass.
Sealing and guiding system: Composed of rubber water-proof strips, brush guide slots, and pressure strips, it ensures smooth window lifting, waterproof and dustproof performance, and reduces wind noise.
Auxiliary components: If it is a split design, it also includes an independent rear door triangular window (fixed type), which is used to optimize vision and vehicle rigidity. Main function
Safety Protection: As part of the side structure of the vehicle body, it provides collision protection and an anti-theft barrier.
View and Lighting: Combined with the design of the triangular window, it reduces blind spots and improves the lighting and transparency for passengers in the rear seats.
Environmental Isolation: Through a multi-layer sealed structure, it isolates external noise, rain, and dust, enhancing the NVH (Noise, Vibration, and Sound Insulation Roughness) performance.
Note: It is necessary to distinguish between "rear door glass" and "rear windshield". The former is a movable main window on the side door, while the latter is usually fixed at the rear of the vehicle and equipped with a heating wire.
The rear door glass assembly of the car mainly consists of the movable main window and the fixed triangular window (for some models). Its core functions cover three dimensions: vision safety, structural engineering, and passenger experience: Core function
Optimize vision and reduce blind spots: The fixed triangular window can significantly expand the view for rear passengers and the driver to observe the rear side, reduce the visual blind area caused by the C-pillar, and enhance safety during lane changing and reversing.
Solve mechanical interference and smoothness of raising and lowering: Due to the need to avoid the rear wheel arches at the bottom of the rear door, the door is in an upper-wide-bottom-narrow trapezoidal shape. Dividing the glass into "main window + fixed triangular window" two parts can ensure that the main window is fully accommodated in the narrow lower space, avoiding jamming or derailment during glass raising and lowering, and ensuring smooth operation.
Enhance the rigidity of the vehicle body structure: The triangular window utilizes the geometric stability of the triangle and is closely connected with the door frame and C-pillar, effectively dispersing the impact force of side collisions and improving the overall torsional stiffness and safety performance of the door.
Additional value
Improve NVH and lighting: Increasing the total area of the glass has improved the natural lighting rate for the rear passengers; the multi-layer laminated or tempered process combined with sealing design helps to isolate external noise and block ultraviolet rays.
Privacy and safety protection: Modern models often use privacy glass or dark coating to protect the privacy of rear passengers; tempered glass, when broken, presents a granular shape, which can minimize secondary injuries to personnel in case of accidental breakage.
Note: If the vehicle is a double-door design or uses frameless door technology, the independent triangular window may be eliminated by extending the main window or changing the track design, depending on the vehicle structure.
