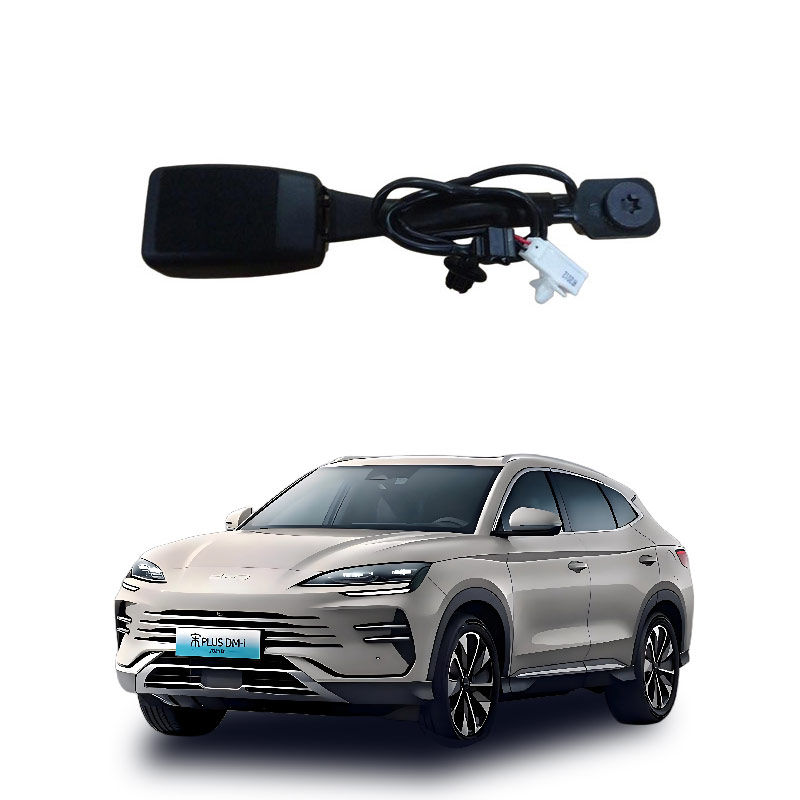

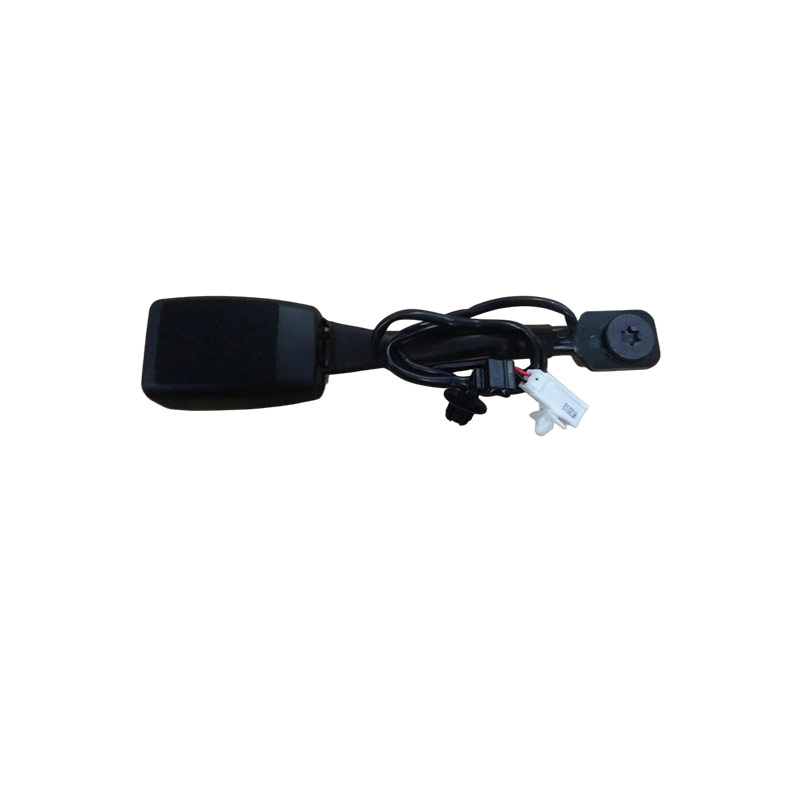

What is the left front seat belt buckle assembly of a car?
The left front seat belt buckle assembly (also known as the belt buckle assembly or lock) is a key safety component fixed on the side of the driver's seat, used to receive and lock the seat belt tongue, and restrain the occupant on the seat.
Core components
Base: Usually made of high-strength engineering plastics (such as ABS) or metal, it is rigidly fixed to the seat frame or the vehicle body through bolts, bearing the huge tension during a collision.
Locking mechanism: Inside, it contains springs, pawls, and locking tongue pieces. When the seat belt tongue is inserted, it automatically locks, ensuring a secure connection.
Release button: Located on the top of the base, pressing it triggers the internal mechanical structure to unlock, causing the tongue to pop out.
Warning switch (for some models): Integrated in the assembly, it is used to detect whether the tongue is inserted, thereby controlling the dashboard seat belt not fastened alarm light and sound alerts.
Main functions
Quick connection and disconnection: Allows the driver to operate with one hand to quickly fasten and unfasten the seat belt.
Collision locking: In the event of emergency braking or collision, it keeps the tongue and base tightly locked, preventing the occupant from being pushed forward due to inertia.
Signal feedback: Sends a "fastened/unfastened" status signal to the vehicle ECU or alarm system.
Location and identification
The left front (driver's seat) belt buckle is typically installed on the outer edge of the seat (near the door side) or below the seat side guard plate. The surface is usually a red or black plastic shell with a red unlock symbol. If this assembly is damaged (such as being unable to lock or the button getting stuck), it will cause the seat belt to fail or trigger an incorrect alarm, and it is necessary to immediately replace the original factory-specified part.
The core function of the left front seat belt buckle assembly of a car is to complete the mechanical locking and fixation of the seat belt, ensuring that the occupant is restrained on the seat during a collision or sudden braking, and preventing secondary collisions. Core function
Quick connection and locking: As the receiving end of the seat belt tongue, it achieves a firm locking with a "click" sound through the internal spring locking mechanism, ensuring that the seat belt and shoulder belt precisely fit the hips and collarbones of the occupant.
Force transmission foundation: It transfers the huge inertial force generated by the collision from the seat belt webbing to the seat frame and the vehicle structure, preventing the occupant from being pushed forward due to inertia and colliding with hard objects such as the steering wheel and dashboard.
Convenient storage management: When not in use, the tongue can be detached and returned to the side slot to keep the interior tidy and not obstruct vehicle entry and exit.
Key precautions
Do not substitute the belt buckle: This component is only used to fix the already fastened seat belt. Do not use "belt buckle" or other cheating tools to bypass the sensor. Otherwise, the airbag may explode mistakenly and lose its restraint protection.
Regular self-check and maintenance: Ensure smooth insertion and removal, without rust or jamming. If the locking is loose or the indicator light is abnormal, replace it immediately to ensure safety performance.
Left front seat belt buckle failure directly affects driving safety. Do not drive with a faulty vehicle. Please handle the following priorities based on specific symptoms:
Quick self-check and temporary troubleshooting
Remove foreign objects: Check if there are coins or debris stuck in the buckle opening. Use a flashlight to illuminate and try to remove the foreign object with tweezers or spray a small amount of electronic cleaner/compressed air to blow it away.
Lubricate return
If the button cannot pop up after being pressed, it may be due to rust or dryness of the internal spring. Spray a small amount of WD-40 or silicone-based lubricant at the gap, repeatedly plug and unplug to test, and do not spray the lubricant on the webbing.
Check the circuit
If the dashboard still alarms after fastening the seat belt, it may be due to poor contact of the microswitch inside the buckle or loose wiring. Try reinserting the plug, if ineffective, need to repair the sensor circuit.
Must replace situations (immediately stop using)
Any of the following situations, do not repair yourself, must replace the assembly:
Locking failure: After inserting the tongue, there is no "click" sound, or it automatically loosens during driving.
Structural damage: Cracks in the shell, broken plastic parts, deformed metal components.
Accident aftermath: If the vehicle has been involved in a collision and the seat belt has been tightened, the internal pre-tensioner or lock may have been damaged in a hidden way.
Water ingress and rusting: The internal spring mechanism is severely rusted due to water ingress, causing mechanical jamming.
Advantages: Ensure the locking force meets national standards, retain the sensor function of the seat.
Self-replacement (only for experienced individuals): Purchase a specific buckle for the same model, prepare a cross-head screwdriver and socket wrench. Be sure to disconnect the battery negative terminal first, remove the seat cushion and airbag connection before operating. After installation, test the locking force and whether the alarm system is normal.
Do not attempt: Use tape to bind, glue to stick, or forcibly pry. These methods will fail instantly in an accident, leading to fatal consequences.
Special warning
Left front seat belt buckle is related to the driver's safety and side airbag linkage. If the vehicle is equipped with seat occupancy sensors or pre-tensioners, non-professional disassembly may trigger fault codes or affect the passive safety system. If unsure of the root cause of the fault, please directly contact a professional institution for testing.
