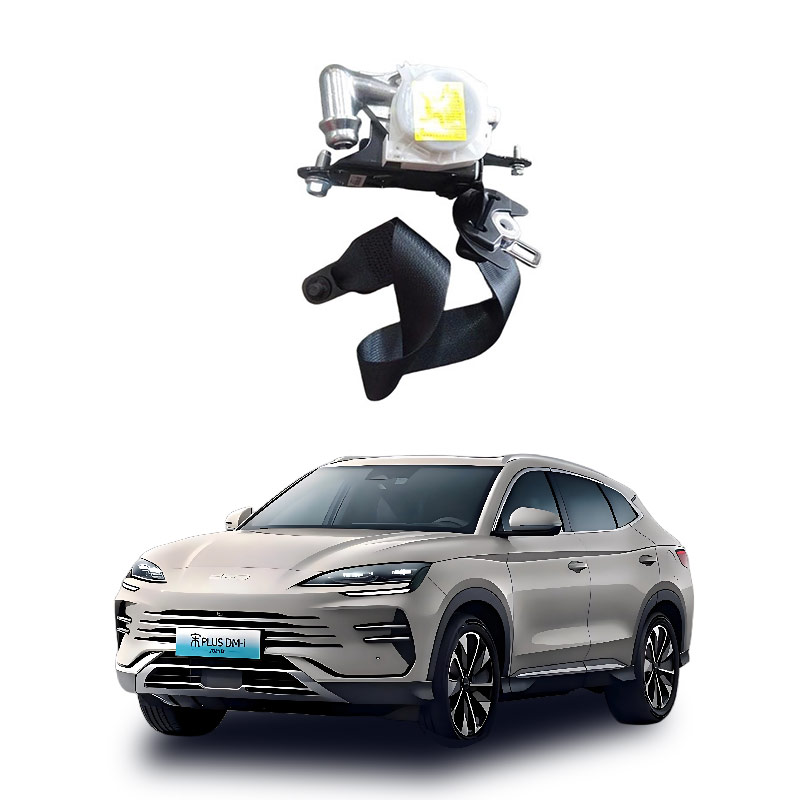

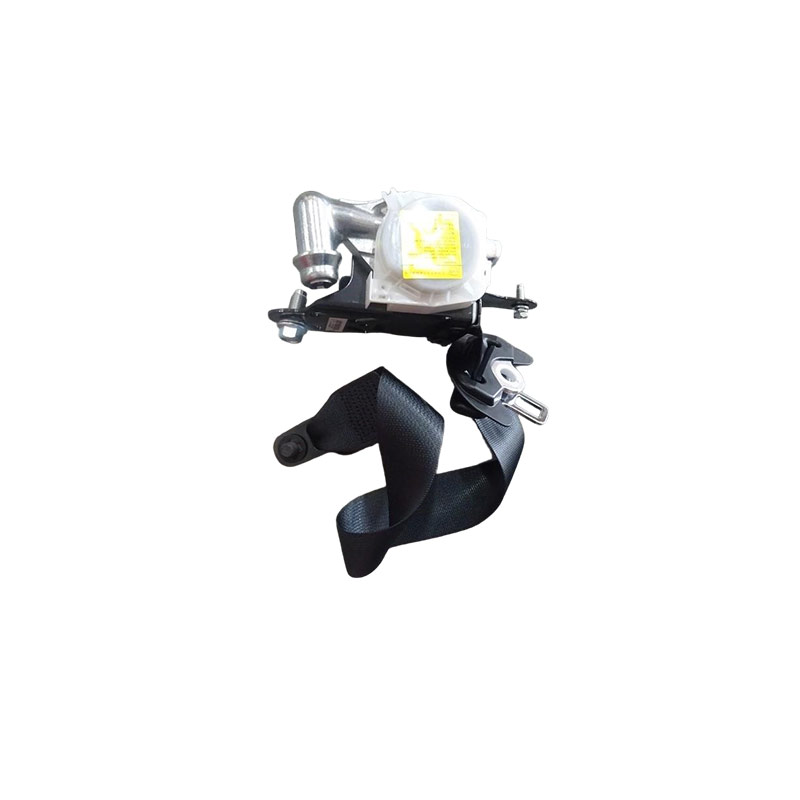

What is the front seat belt assembly of a car?
The front seat belt assembly of a car is mainly composed of five core components: the webbing, the tensioner, the buckle (including the tongue), the pre-tensioner, and the height adjuster. These components work together to achieve occupant restraint and collision protection.
Webbing: Made of high-strength polyester fibers, it is the core force-bearing component that comes into direct contact with the occupants and withstands tension. It is responsible for absorbing impact energy.
Tensioner: The "brain" of the seat belt, it contains springs and locking mechanisms (such as the ELR emergency lock), automatically retracts the webbing during normal driving, and instantly locks the webbing when the vehicle decelerates sharply or collides, pulling it out.
Buckle and tongue: The buckle is fixed to the side of the seat, and the tongue connects to the end of the webbing. They are inserted and locked together to ensure the webbing is in a closed state.
Pre-tensioner: A collision-triggering device (either chemical or electric), it reversely tightens the webbing in milliseconds to eliminate the slack caused by the occupant's body movement, ensuring the occupant is tightly against the seat.
Height adjuster: Installed on the B-pillar, it allows the webbing exit height to be adjusted up and down to accommodate different height occupants, avoiding neck compression or slippage.
These components work mechanically and electronically in coordination, providing comfort during normal driving and minimizing secondary collision injuries in accidents.
The front seat belt assembly is the core of the passive safety system. Its main function is to restrain occupant movement, absorb impact energy, and work in conjunction with airbags, significantly reducing the risk of injury.
Core protective functions
Constraining occupant movement to prevent secondary collisions: In the event of sudden braking or collision, the locking mechanism firmly fixes the occupant to the seat, preventing them from being pushed forward due to inertia and colliding with the steering wheel, dashboard, or windshield.
Buffering and absorbing energy to reduce peak injury: Using the webbing's stretching and force-limiting devices to release tension controllably, it prolongs the force application time, significantly reducing the instantaneous impact force on the chest and internal organs.
Optimizing airbag protection efficiency: Ensuring the occupant is in the optimal position for airbag deployment, preventing additional injuries caused by improper positioning when the airbag pops out, achieving a "first fixation, then buffering" coordinated protection.
Key components and their division of labor
The front seat belt is not a simple webbing; it is an electromechanical system composed of multiple precision components that work together:
Tensioner (ELR): The core control unit. During normal driving, it allows the webbing to freely stretch to ensure comfort; when it senses sudden deceleration, sharp inclination of the vehicle, or rapid pulling of the webbing, it mechanically locks instantly.
Pre-tensioner: Triggered by a collision in milliseconds (usually chemical-driven), it rapidly retracts the webbing to eliminate the slack gap between the occupant and the seat, ensuring the occupant is in the best protected position before the airbag deploys.
Limiting device: It functions after locking. When the tension exceeds the threshold, it moderately "relaxes" the webbing by twisting a rod to avoid the webbing straining ribs or internal organs, achieving a "flexible and firm" balance.
Webbing and locking mechanism: The high-strength synthetic fiber webbing is responsible for transmitting the restraining force; the locking mechanism and the buckle work together to complete quick fastening and release and secure locking.
Data support
Correct use of the front seat belt can reduce the fatality rate in frontal collisions by approximately 57%, in side collisions by 44%, and by up to 80% in rollover accidents.
